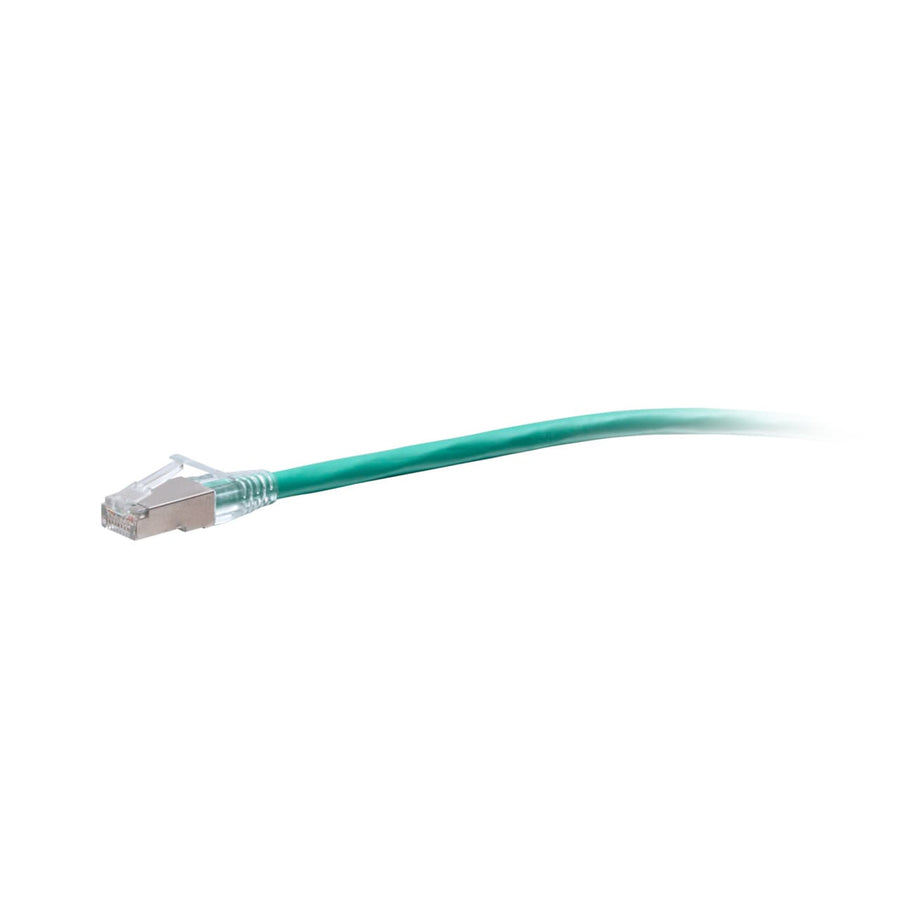

10ft (3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
10ft (3.1 m) shielded Cat6a patch cable, TAA-compliant, in green with snagless RJ45 connectors
The C2G43864 is a 10ft (3.1 m) TAA-compliant Cat6a snagless shielded (STP) network cable in green. Specifically designed for high-speed 10GBase-T applications, this passive patch cable is engineered to protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features aluminum foil shielding around stranded copper conductors to ensure signal integrity in bandwidth-intensive environments. The cable is rated for riser applications (CMR) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Each end is terminated with an RJ-45 male connector featuring 50-micron gold-plated contacts for improved connectivity. The snagless design protects the locking clips from damage, making it suitable for high-frequency insertion and extraction cycles. This green cable is TAA-compliant and is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438649 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43864 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, making it approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed for 10GBase-T (10 Gigabit Ethernet) applications, providing the bandwidth required for high-speed network connections.
What kind of shielding does this cable use?
The C2G43864 utilizes Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
Will the connectors break if I plug them in frequently?
The snagless RJ45 connector design is specifically built to protect the clips from being snapped off during high-cycle insertion and extraction.
What is the jacket rating for this cable?
This is a CMR rated cable, designed for riser jacket applications in voice, data, and video distribution.
