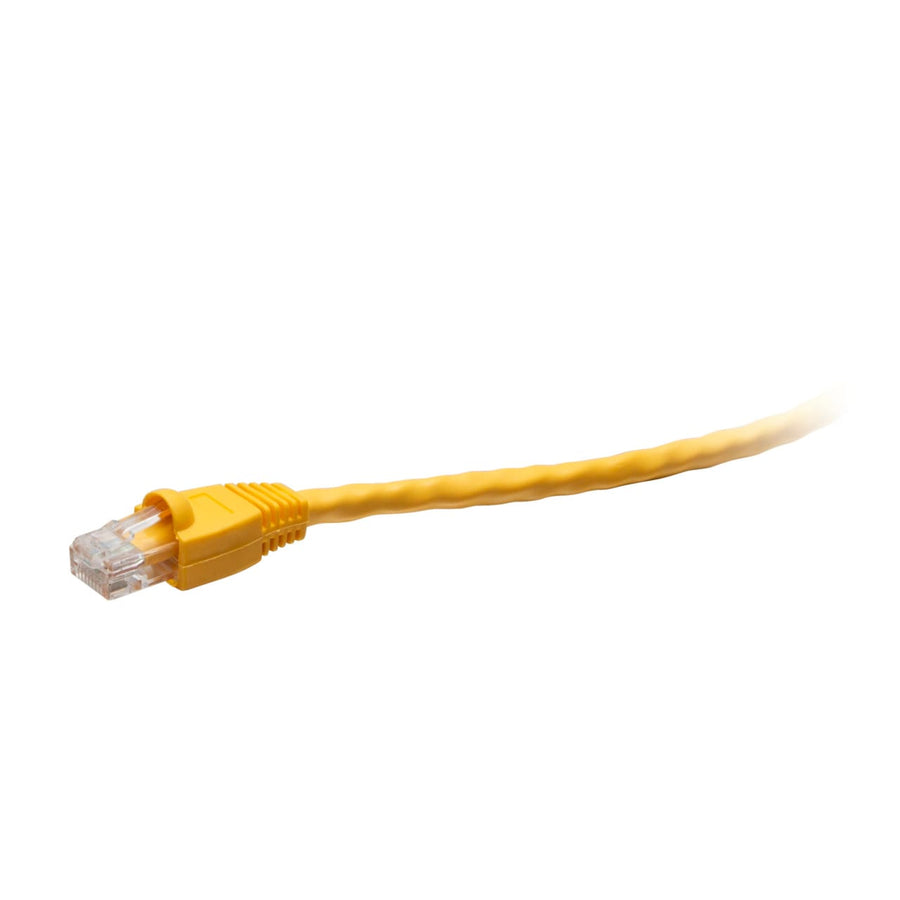

10ft (3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
10ft TAA-Compliant Cat6 UTP cable with yellow snagless boots and CMR-rated riser jacket for high-performance networking
The C2G43516 is a 10 ft (3.1 m) TAA-Compliant F-Series Cat6 Unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This cable is manufactured with high-quality, made in the USA stranded copper cabling, providing an enhanced 600 MHz maximum frequency to exceed standard Cat6 performance. It is rated for 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The yellow jacket is CMR rated and riser rated for use in building vertical shafts. To ensure reliable installation and high insertion cycles, the cable features snagless RJ-45 male connectors with molded boots that protect the clips from damage and provide strain relief. The connectors include 50-micron gold-plated contacts to maintain signal integrity. This passive cable is ideal for connecting network adapters, hubs, switches, routers, and servers in United States government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435167 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43516 approved for government installations?
Yes, this cable is TAA-Compliant and meets the necessary requirements for use in United States government projects and facilities.
Will the connector clips break during installation?
The snagless RJ45 design features a molded boot that protects the clips from snapping, making it suitable for applications with high insertion cycles.
Can this cable be used in building risers?
This cable features a CMR rated jacket that is riser rated, making it appropriate for use in vertical shaft applications.
What is the performance capability of this Cat6 cable?
It is a passive cable that supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What is the warranty for this C2G cable?
This product comes with a Lifetime warranty and is constructed with premium made in the USA copper cabling.
