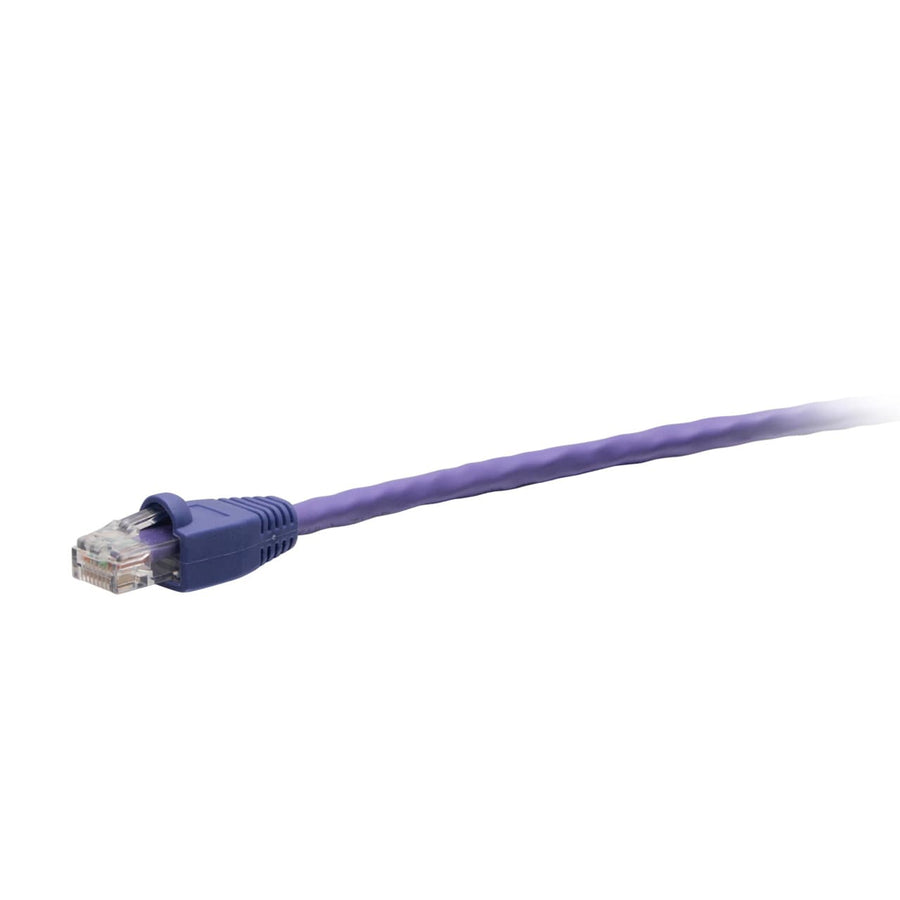

10ft (3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
10ft (3.1 m) Purple Cat6 Snagless UTP Network Cable, TAA-Compliant, CMR Rated
The C2G43558 is a 10 ft (3.1 m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in purple. This passive cable is constructed with high-quality, made in the USA copper stranded conductors and features a 24 AWG wire gauge. It is designed to support 1000BASE-T (1 Gigabit Ethernet) applications, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards with an enhanced 600 MHz maximum frequency. Each end features an RJ-45 male connector with 50-micron gold-plated contacts to ensure signal integrity. The molded snagless boot provides extra strain relief and protects the clips from snapping during installation or in high-cycle applications. This CMR rated riser cable uses a PVC jacket and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). The T568B wiring scheme is used throughout this 0.22 in (5.6 mm) diameter cable.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435587 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is this Cat6 cable TAA compliant?
Yes, the C2G43558 is TAA-compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this cable?
This Cat6 cable features an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does this cable have?
This is a CMR rated riser cable with a PVC jacket, suitable for various indoor installation environments.
Will the connector clips break easily during installation?
The snagless RJ45 connector design includes a molded boot to protect the clips from being snapped off during high insertion cycles.
Does this cable use copper or aluminum conductors?
The C2G43558 is constructed with premium, made in the USA copper stranded conductors.
