10ft (3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
10ft Pink Cat6 UTP network cable, TAA-compliant and CMR rated with snagless RJ45 connectors

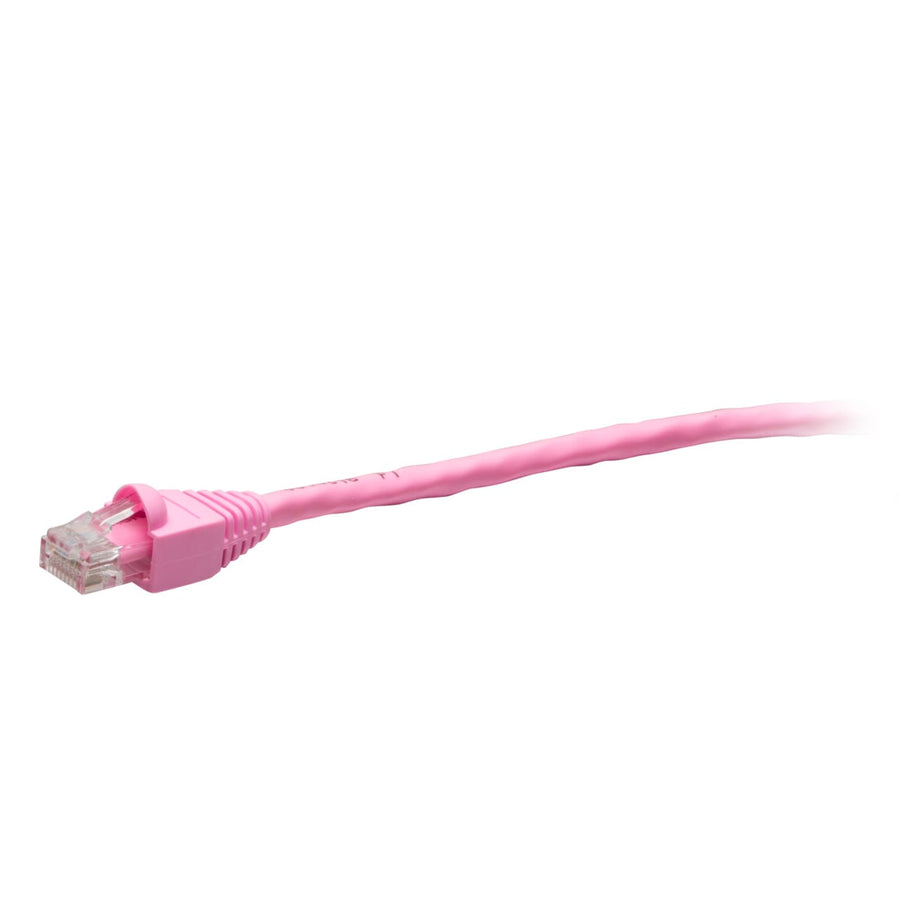

The C2G43600 is a 10ft (3.1 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in pink. This cable is specifically designed to meet stringent TAA requirements, making it approved for use in United States government projects and facilities. It utilizes high-quality, made in the USA copper cabling with a stranded conductor profile and 50-micron gold-plated contacts to ensure consistent, reliable performance. The cable features a snagless RJ45 male to RJ45 male connector design, which includes a molded boot to protect the clips from being snapped off during installation or high-frequency use, providing additional strain relief. This CMR-rated (Riser) cable is built with a PVC jacket and is suitable for 1000BASE-T (1 Gigabit Ethernet) applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This pink cable is ideal for network adapters, hubs, switches, routers, and servers where color-coding is required for organized cable management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436003 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43600 TAA compliant for government contracts?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) and is constructed with high-quality copper for an enhanced 600 MHz maximum frequency.
Can I use this pink cable in a riser application?
Yes, this is a CMR rated cable with a PVC jacket, making it suitable for riser applications.
Does this cable include snagless boots for protection?
Yes, it features a molded, snagless RJ45 connector design that protects the clips from being snapped off during installation.
What is the wiring scheme used for this network cable?
The C2G43600 uses the T568B wiring scheme with RJ45 male connectors on both ends.
