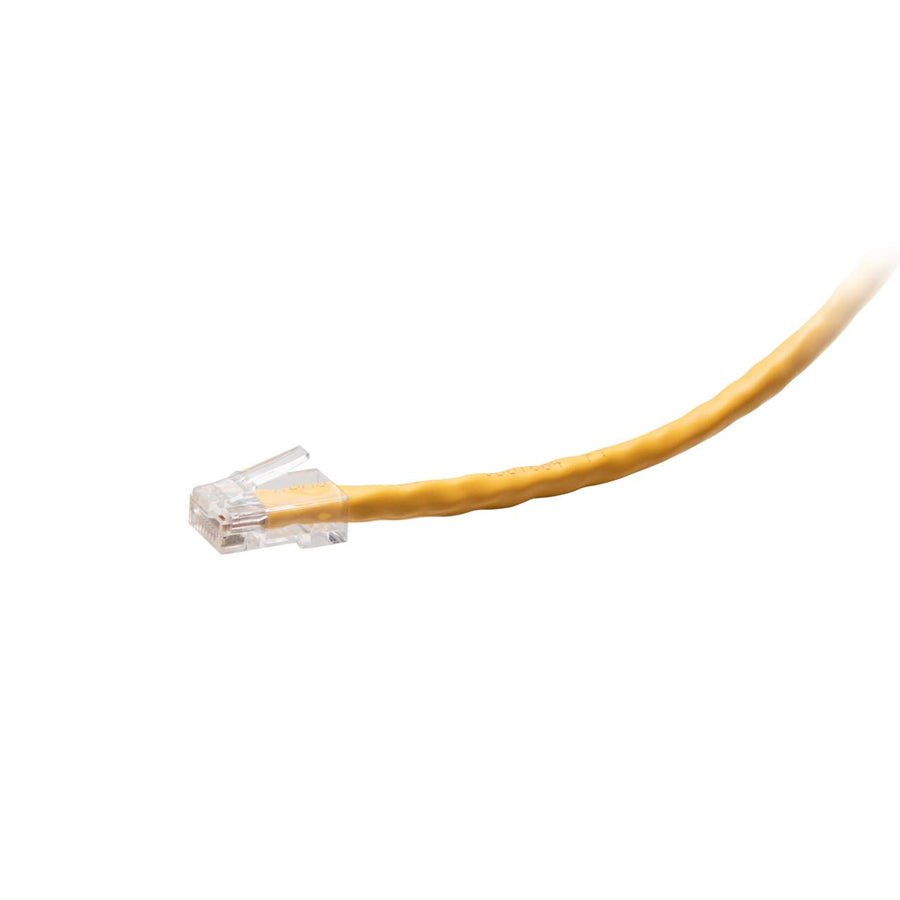

10ft (3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Yellow
10ft TAA-compliant Cat6 UTP network cable, non-booted yellow jacket with 24 AWG stranded copper conductors
The C2G43656 is a 10ft (3.1m) TAA-compliant F-Series Cat6 unshielded twisted pair (UTP) network cable designed for use in United States government projects and facilities. This non-booted yellow cable provides reliable connectivity for network adapters, hubs, switches, routers, and servers. It is constructed with high-quality, made in the USA stranded copper cabling, offering an enhanced 600 MHz maximum frequency to ensure superior performance compared to standard Cat6 cables. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. Each RJ-45 male connector features 50-micron gold-plated contacts to maintain signal integrity. The CMR-rated PVC jacket is intended for riser applications, providing a solution that is suitable for a wide variety of network environments. This passive cable is TAA compliant and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436560 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43656 TAA compliant?
Yes, this C2G43656 cable is TAA compliant and meets the requirements for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What kind of installation environment is this cable for?
This is a CMR-rated cable with a PVC jacket designed for riser applications and is suitable for use in various network environments.
Does this cable support patch panels and enclosures?
This cable is compatible with several accessories, including the CG37199 24-Port Cat6 110-Type Patch Panel and various EN-series enclosures like the EN1400.
What are the connector specifications for the C2G43656?
The cable features two RJ-45 male connectors with 50-micron gold-plated contacts to ensure reliable signal integrity.
