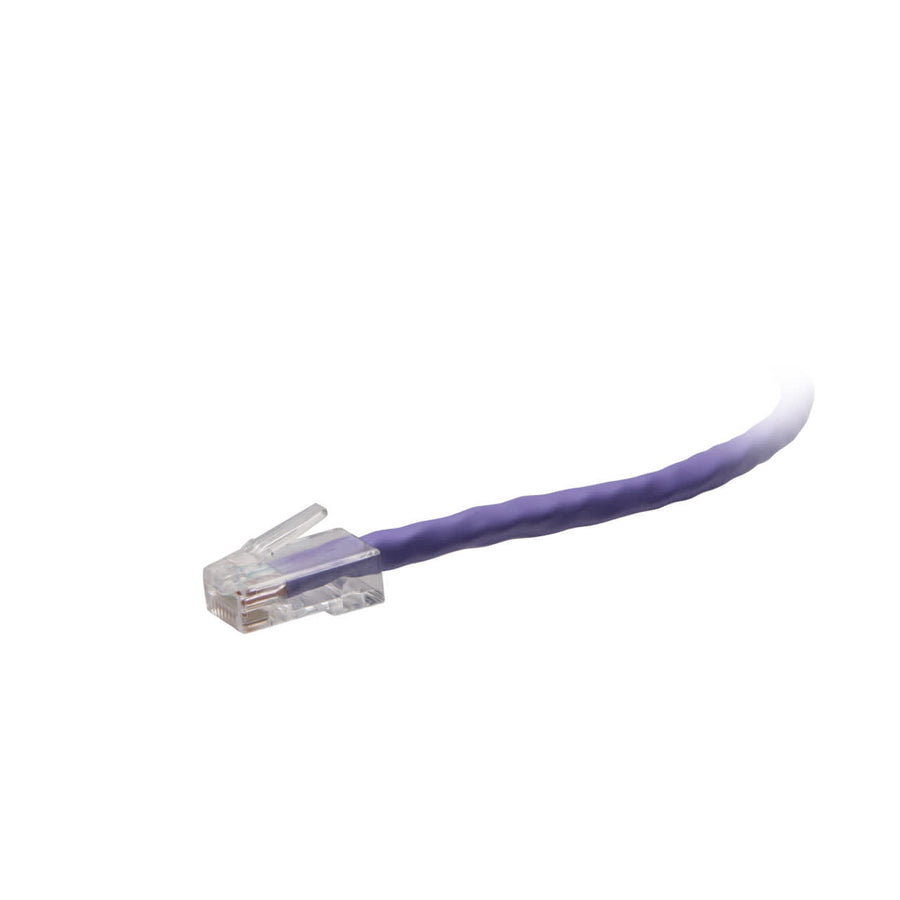

10ft (3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
10ft (3.1 m) Cat6 UTP network cable, TAA-compliant, purple, with RJ-45 male connectors
The C2G43680 is a 10 ft (3.1 m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable designed for use in United States government projects and facilities. This F-Series cable features a non-booted design and is constructed with high-quality, made-in-the-USA stranded copper cabling. It provides an enhanced maximum frequency of 600 MHz, exceeding standard Cat6 specifications to support 1000BASE-T (1 Gigabit Ethernet) applications. Each cable is terminated with 50-micron gold-plated RJ-45 male contacts to improve signal integrity for connections to network adapters, hubs, switches, routers, and servers. This purple-jacketed cable is rated for riser applications (CMR) and utilizes a PVC jacket material. The wiring follows the T568B scheme and is tested to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is a passive cable suitable for operating in temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436805 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43680 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it suitable for United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables.
Can I use the C2G43680 in a riser application?
Yes, this cable has a CMR rating and a PVC jacket designed for riser applications.
Does this cable support Gigabit Ethernet?
Yes, this cable meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What other lengths and colors are available in this series?
The F-Series is available in various lengths up to 25ft and a wide variety of colors, including Black, Blue, Gray, Green, Orange, Pink, Red, and more.
