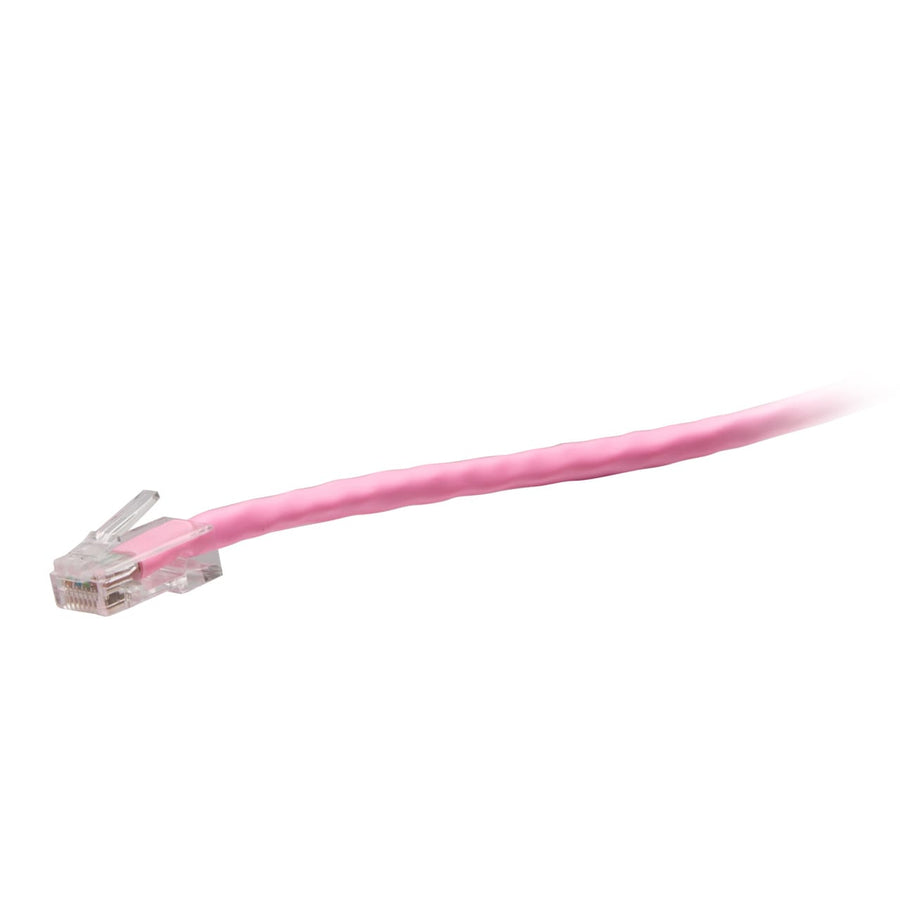

10ft (3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
10ft pink Cat6 UTP network cable, TAA-compliant, with RJ-45 male connectors and CMR riser-rated jacket
The C2G43704 is a 10 ft (3.1 m) TAA-compliant Cat6 network cable designed for use in United States government projects and facilities. This non-booted, unshielded UTP cable features a pink PVC jacket with a CMR riser rating, making it suitable for vertical cabling applications. The cable is constructed with high-quality, made in the USA stranded copper conductors and 24 AWG wire gauge to ensure consistent, reliable performance for 1000BASE-T 1 Gigabit Ethernet applications. For improved signal integrity, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting a maximum frequency of 600 MHz. It is designed for connections between network adapters, hubs, switches, routers, and servers. This SKU is part of a series available in various lengths up to 25ft and multiple colors for easy network identification.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437048 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43704 TAA compliant for government contracts?
Yes, this cable is TAA-compliant and meets the requirements for use in United States government projects and facilities.
What is the maximum frequency and data rate for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and features an enhanced 600 MHz maximum frequency.
Can I use this cable in a vertical shaft or riser application?
Yes, the jacket is CMR rated for riser applications and is made of PVC material.
What type of connectors are used on the C2G43704?
The cable features standard RJ-45 male connectors with 50-micron gold-plated contacts to maintain signal integrity.
What other items are compatible with this series?
This series is compatible with various enclosures like the EN1400, and patch panels such as the CG37200 or CG37199.
