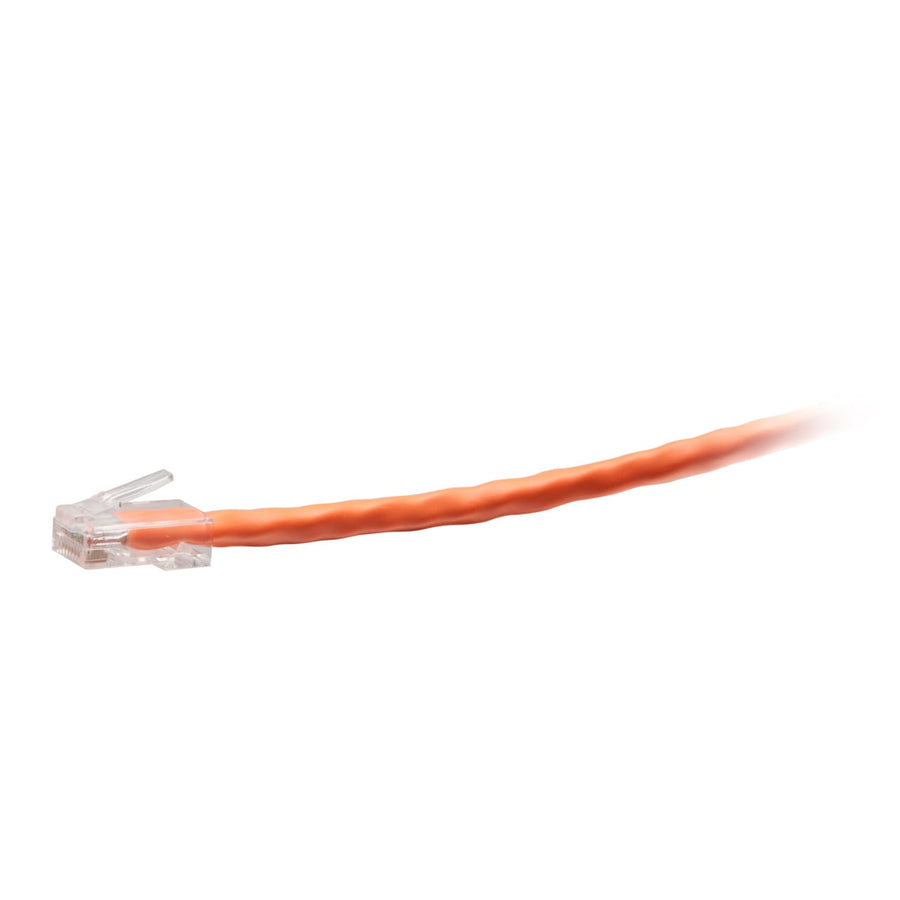

10ft (3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
10ft Cat6 UTP network cable, orange, TAA-compliant, featuring 24 AWG stranded copper conductors
The C2G43668 is a 10ft (3.1 m) TAA-compliant F-Series Cat6 network cable designed for high-performance connectivity in government-regulated facilities and professional environments. This unshielded twisted pair (UTP) cable is constructed with high-quality, made-in-the-USA stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity and reliable data transmission. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting applications up to 1000BASE-T (1 Gigabit Ethernet) with an enhanced 600 MHz maximum frequency. This orange-jacketed CMR-rated cable is ideal for connecting network adapters, hubs, switches, routers, and servers. The cable features a non-booted design and standard RJ-45 male connectors on both ends, utilizing a T568B wiring scheme. This passive cable is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C) and is TAA compliant for use in US government projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436683 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
