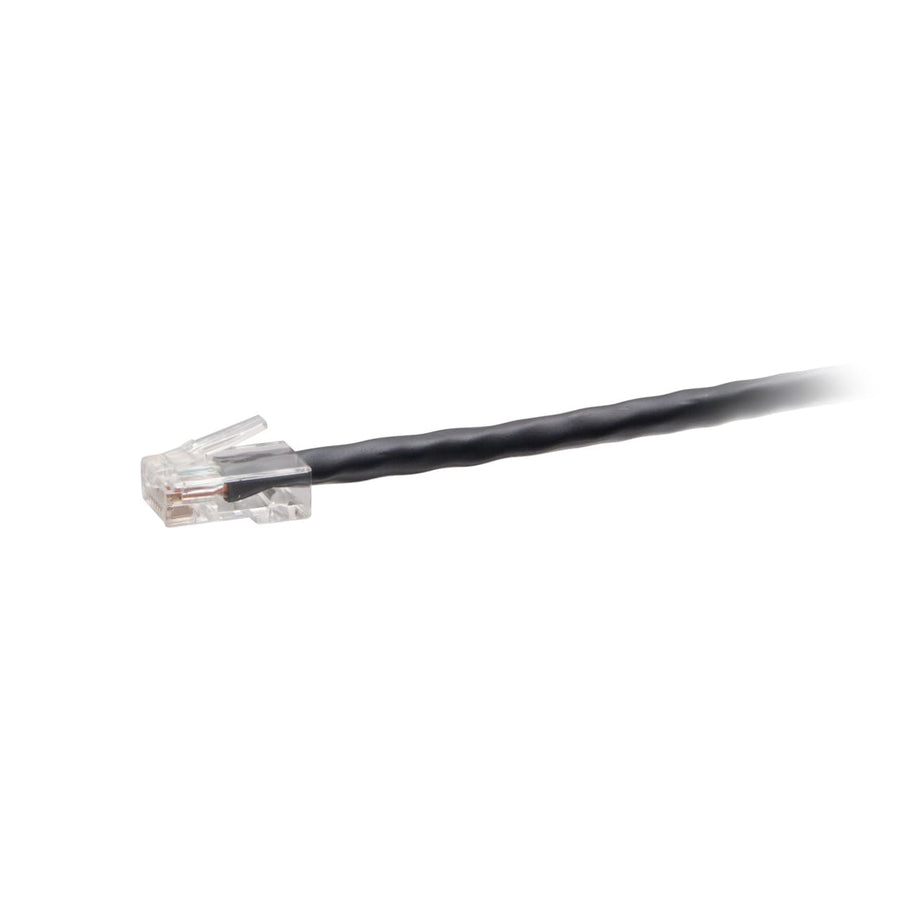

10ft (3m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
10ft TAA-compliant Cat6 UTP cable with black PVC jacket, 24 AWG stranded copper conductors, and RJ-45 male connectors
The C2G43632 is a 10ft (3.1 m) TAA-compliant Cat6 network cable designed for high-performance connectivity in sensitive environments. This unshielded twisted pair (UTP) cable is approved for use in United States government projects and facilities that require TAA compliance. It features high-quality, made in the USA raw copper cabling with stranded conductors, providing an enhanced 600 MHz maximum frequency to exceed standard Cat6 performance for 1000BASE-T (1 Gigabit Ethernet) applications. This non-booted cable is built with 50-micron gold-plated contacts to ensure signal integrity between network adapters, hubs, switches, routers, and servers. The cable is CMR rated for riser applications and uses a black PVC jacket, making it suitable for diverse installation scenarios. With a 0.22 in (5.6 mm) diameter and a T568B wiring scheme, this passive cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436324 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43632 TAA compliant for government contracts?
Yes, this is a TAA-compliant F-Series cable, which is approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency, supporting 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between this and the other F-Series cables?
This SKU is a 10ft non-booted black cable; other F-Series variants are available in different colors and lengths up to 25ft.
What tools are needed for installation of the C2G43632?
As this is a pre-terminated patch cable with RJ-45 male connectors, no additional installation tools are required for standard plug-and-play use.
Can this cable be used in riser installations?
Yes, this cable features a CMR rated jacket material specifically for riser applications.
