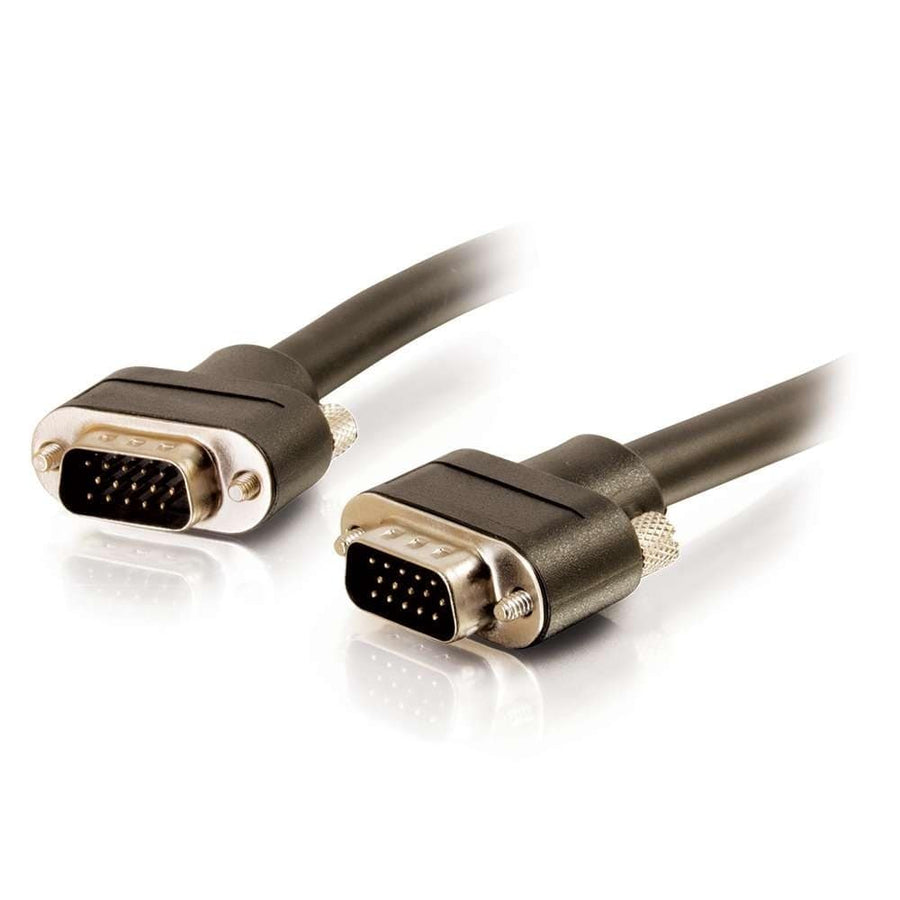

10ft (3m) Select VGA Video Cable M/M - In-Wall CMG-Rated
In-wall rated 10ft VGA male to male video cable supporting resolutions up to QXGA (2048x1536)
The C2G CG50213 is a 10ft (3.1 m) male-to-male VGA video cable engineered for source-to-display connectivity in residential or commercial environments. This cable features a CMG and FT4 rated PVC jacket, making it suitable for in-wall installation where fire safety standards must be met. Designed to handle high-resolution video applications, it supports resolutions up to QXGA (2048x1536). To ensure optimal signal integrity and communication between hardware, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID). This allows the source to automatically detect and communicate the specific capabilities of the display. The low-profile, rounded connectors are specifically designed to facilitate installation in confined spaces, such as behind projector mount poles or in tight media enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shipping Weight | 0.73 lbs (0.3 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502135 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the CG50213 rated for in-wall installation?
Yes, this cable features a CMG and FT4 rated PVC jacket specifically designed for in-wall applications.
What is the maximum resolution supported by this VGA cable?
The CG50213 supports video resolutions up to QXGA (2048x1536) due to its full 15-pin wiring.
Will this cable work for EDID communication?
Yes, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals.
Can this cable be used in tight spaces like projector mounts?
The low-profile, rounded connectors are designed to make installation easier in restricted spaces like projector mount poles.
Does this cable meet NDAA compliance?
Yes, this product carries NDAA 889 certification.
