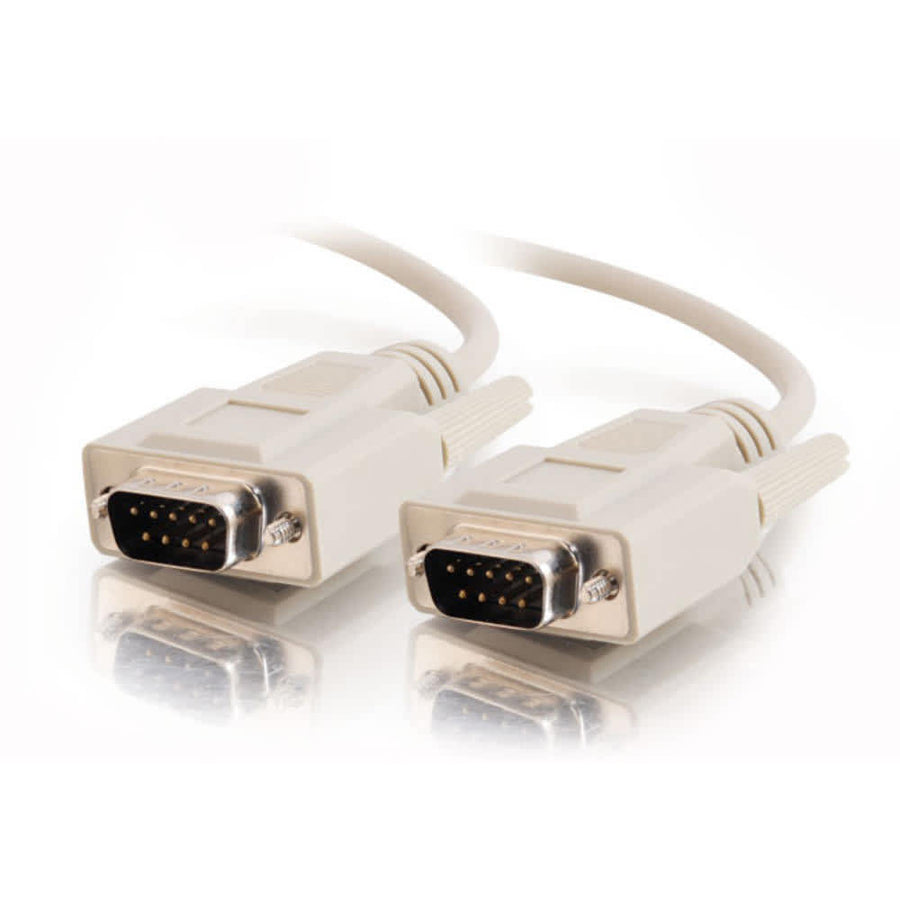

10ft (3m) DB9 M/M Serial RS232 Cable - Beige
10 ft (3.1 m) DB9 Male to DB9 Male RS232 serial cable with full shielding and molded strain relief
The C2G CG09449 is a 10 ft (3.1 m) DB9 Male to DB9 Male RS232 serial cable designed to provide flexibility when connecting hardware in tight spaces. This serial cable allows you to connect peripherals directly to a switchbox or replace existing short cables that limit installation options. For signal integrity, the cable is fully shielded to prevent unwanted EMI/RFI interference. Each unit features a fully molded cable design to provide excellent strain relief at the connection points. The connectors include thumbscrews to ensure a quick and secure connection during installation. All lines within this 28 AWG cable are wired straight through for consistent performance.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 10 ft (3.1 m) |
| Shipping Weight | 0.37 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Type | Serial |
| Color | Beige |
| Connector 1 | (1) DB9 Male |
| Connector 2 | (1) DB9 Male |
| Jacket Rating | Standard / Non-Rated |
All other specifications 5
| Product Type | Cable |
| UPC | 757120094494 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring configuration of the CG09449 serial cable?
The CG09449 is a straight-through cable, meaning all lines are wired directly from one end to the other.
Does this RS232 cable provide protection against interference?
Yes, the cable is fully shielded to help prevent unwanted EMI/RFI interference during operation.
What are the different color and length options for this series?
This series includes different options for length, such as 3 ft and 6 ft, and color, such as Black.
What is the warranty coverage for the CG09449?
This C2G cable is backed by a Lifetime warranty.
Is this cable compliant with NDAA 889?
Yes, the CG09449 is listed as NDAA 889 compliant.
