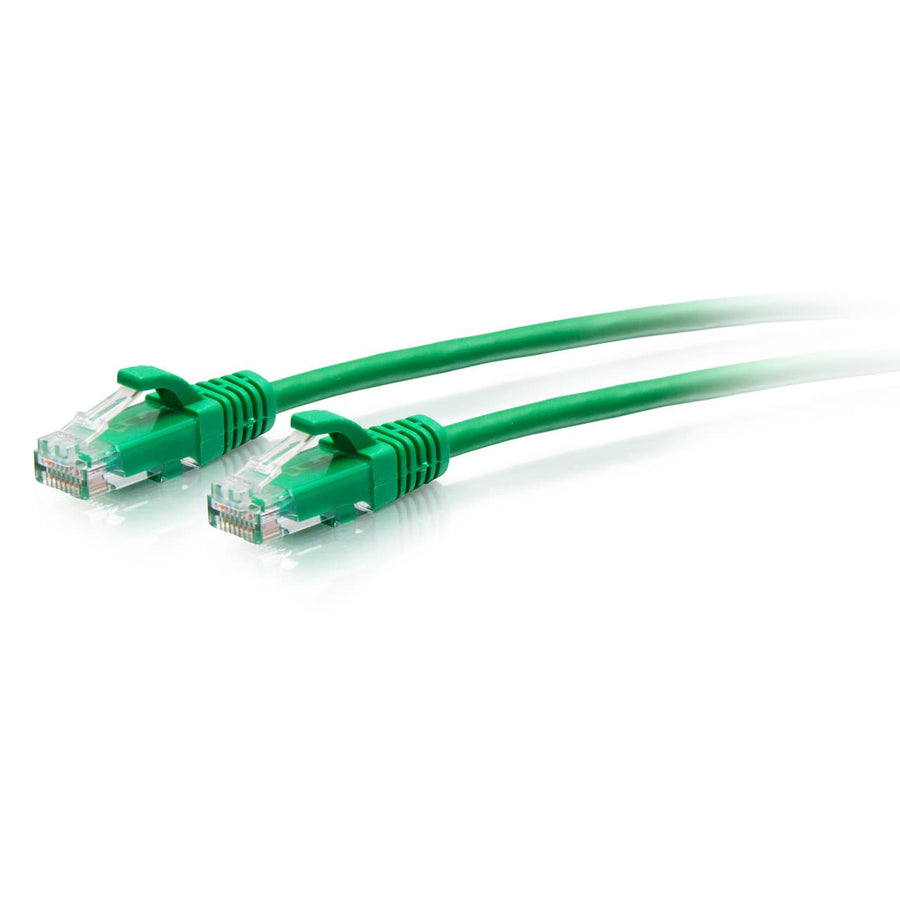

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Green
10ft Cat6a Slim UTP patch cable in Green, featuring 28AWG stranded copper conductors and a snagless design for high-density environments
The C2G30157 is a 10ft (3.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments like data centers and large conference rooms. Utilizing 28AWG stranded copper conductors, this cable offers significantly greater flexibility than standard Cat6 cables, making it ideal for tight spaces where cable management and airflow are critical. The slim 0.19 in (4.8 mm) diameter profile reduces the overall surface area, which helps maintain optimal airflow within crowded enclosures. This Cat6a cable supports data transfer rates up to 10 GBPS, making it a reliable choice for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) deployments. Each cable features gold-plated RJ-45 male connectors with a molded, snagless PVC boot that provides strain relief and prevents accidental snags during installation. This green-colored patch cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301578 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
What is the maximum data speed of the C2G30157?
The C2G30157 supports data transfer rates of up to 10 GBPS, meeting Cat6a performance standards.
Is the C2G30157 suitable for high-density data center environments?
Yes, its 28AWG slim 0.19 in (4.8 mm) diameter allows for increased airflow and easier management in crowded spaces.
What is the difference between this and a standard Cat6 cable?
This Cat6a slim cable provides double the minimum bandwidth of Cat6 and uses 28AWG wire for greater flexibility and a smaller footprint.
Does this cable support PoE applications?
Yes, the Cat6a technology used in this cable makes it suitable for Power over Ethernet (PoE) and VoIP situations.
Which documents are available for submittals?
You can reference the Cat6a Slim Patch Cable Series Datasheet or the C2G Ethernet Patch Cable Matrix for technical details.
