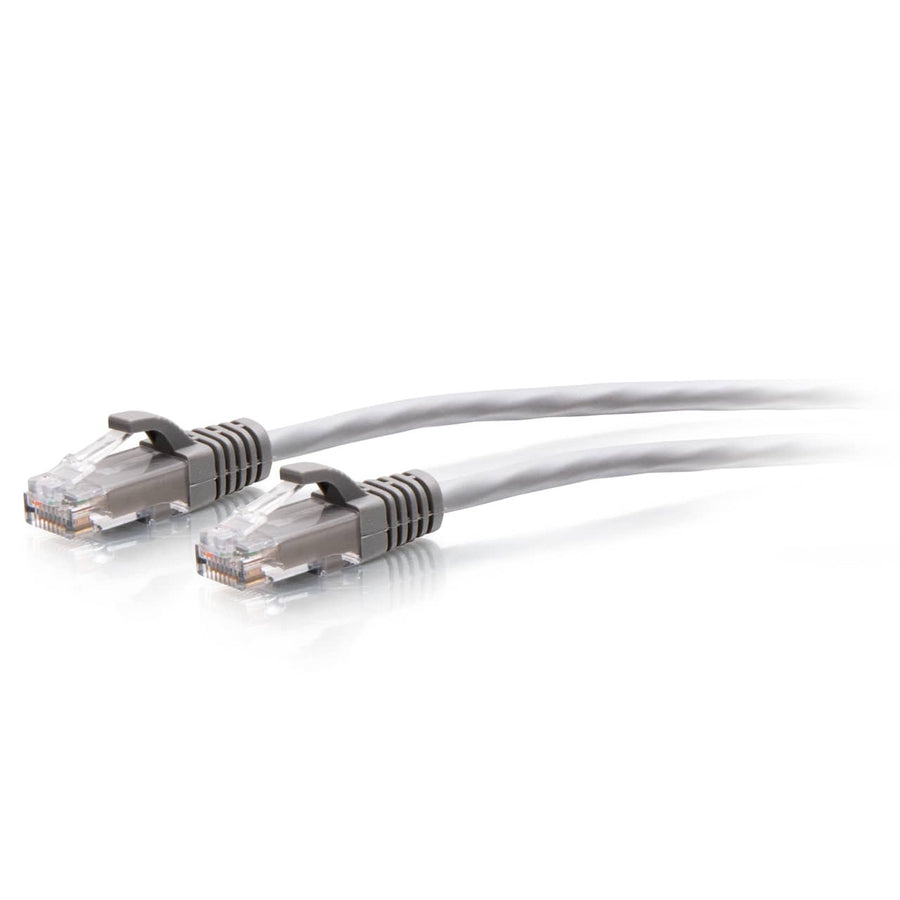

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
10ft Cat6a Slim UTP patch cable with 28AWG stranded copper conductors, snagless boots, and 10 Gbps performance in a gray finish
The C2G30120 is a 10 ft (3.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments. This gray cable is engineered for tight spaces like datacenters and large conference rooms where space and airflow are critical. Featuring a 28AWG stranded copper construction, the slim 4.8 mm (0.19 in) diameter profile allows for increased airflow and greater flexibility compared to standard Cat6 cables. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC boot that provides strain relief and prevents snags during installation. This Cat6a cable supports data transfer rates up to 10 Gbps and is suitable for Power over Ethernet (PoE) and VoIP applications. It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This product is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301202 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this Cat6a cable work for PoE or VoIP applications?
Yes, this Cat6a patch cable is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.
What is the maximum data transfer rate for the C2G30120?
The C2G30120 supports data transfer rates of up to 10 Gbps.
Is this cable suitable for high-density data center installations?
Yes, the 28AWG slim construction and 4.8 mm (0.19 in) diameter are designed to improve airflow and flexibility in high-density environments.
What certifications does this cable hold?
This cable is NDAA 889 compliant and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Does this cable include a warranty?
This C2G Cat6a patch cable is backed by a lifetime warranty.
