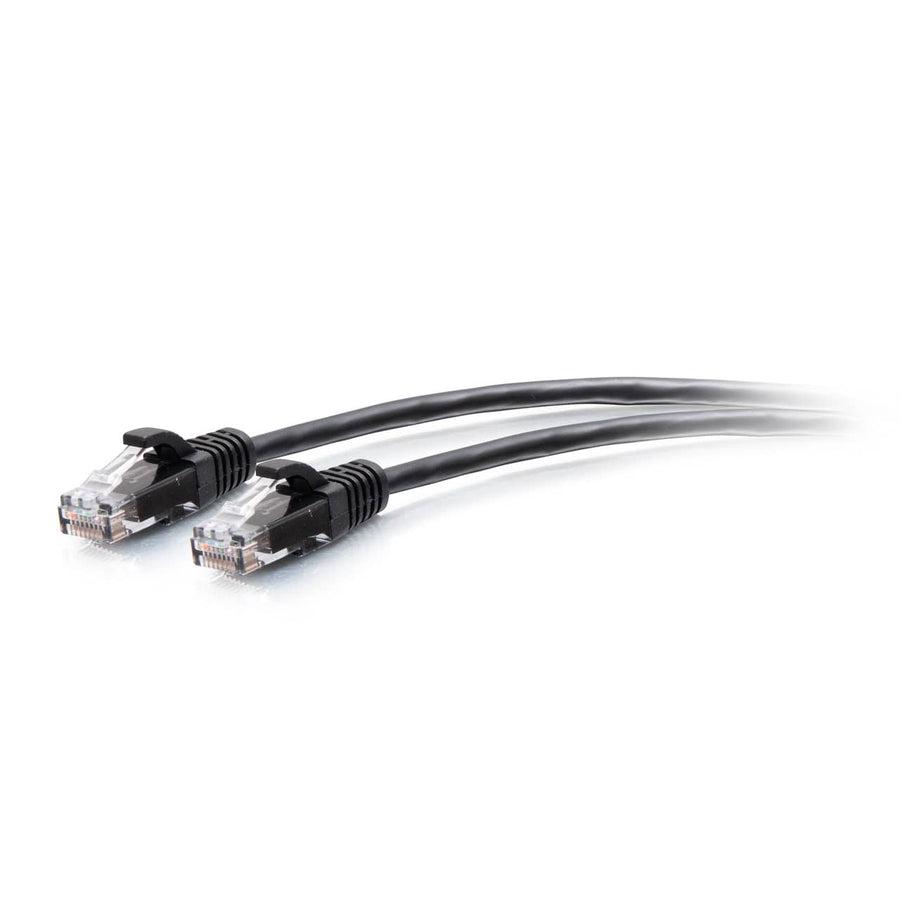

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
10ft Cat6a Slim UTP patch cable with 28AWG stranded copper conductors and snagless boots, black finish
The C2G30148 is a 10ft (3.1 m) Cat6a Slim Unshielded (UTP) Snagless Ethernet Patch Cable designed for high-density cabling environments like datacenters and large conference rooms. This cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in). This slim profile increases airflow in tight spaces and provides greater flexibility than standard Cat6 cables. The cable features RJ-45 male connectors with gold-plated contacts and a PVC connector hood. A molded snagless boot provides strain relief and prevents snags during installation. Capable of data transfer rates up to 10 GBPS, this Cat6a cable is suitable for Power over Ethernet (PoE) and VoIP applications. It meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301486 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
What is the maximum data rate for the C2G30148 cable?
The C2G30148 supports data transfer rates of up to 10 GBPS, meeting Cat6a performance standards.
Is the C2G30148 suitable for PoE applications?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and VoIP environments.
What is the cable diameter of this slim patch cord?
This cable has a diameter of 0.19 in (4.8 mm) ± 0.15mm (0.01 in), which is thinner than standard Cat6 cables.
Does this cable include snagless protection?
Yes, the C2G30148 features a molded, snagless boot designed to prevent snags and provide extra strain relief during installation.
What certifications does this Cat6a cable have?
The C2G30148 is listed with CE, REACH, and RoHS certifications and is NDAA 889 compliant.
