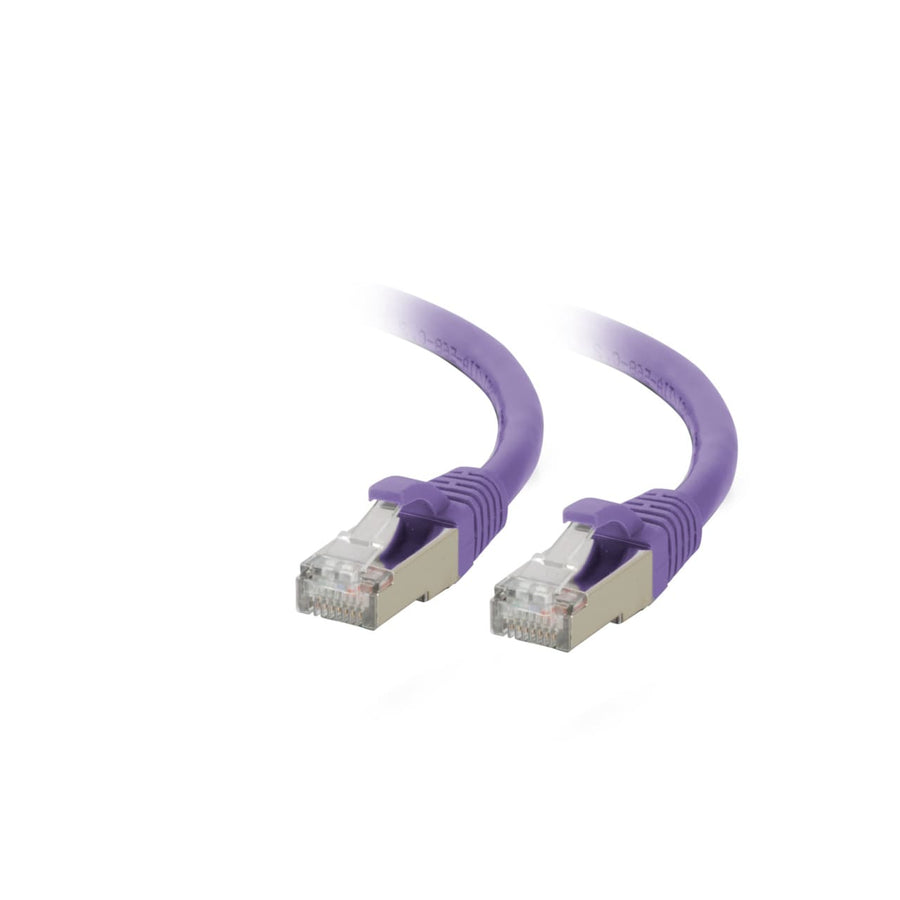

10ft (3m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Purple
10ft Cat6A STP snagless patch cable, 10 Gbps support, 500 MHz bandwidth, Purple finish
The C2G07401 is a 10 ft (3.1 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in Purple, engineered for high-speed 10 Gigabit network environments. This cable is designed for use with 10GBase-T ports and essential networking hardware, including switches, routers, hubs, network adapters, and patch panels. By utilizing shielded twisted pair (STP) construction, this cable protects high-speed data transmissions from electromagnetic interference (EMI) and external noise. It is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, making it suitable for bandwidth-intensive applications such as HDBaseT video distribution. The cable features stranded copper conductors and a T568B wiring scheme. Each RJ-45 male connector is equipped with a snagless, booted PVC hood to protect the locking tab in high-density rack or patch panel environments. The 0.24 in (6.2 mm) diameter cable is rated for use in standard non-rated applications with an operating temperature range of -4°F to 176°F (-20°C to 80°C). For easy organization, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120074014 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Yes, the C2G07401 is a Cat6A rated cable that supports 10 Gbps data transfer rates and 500 MHz bandwidth for high-speed networking.
Yes, the C2G07401 is a Cat6A rated cable that supports 10 Gbps data transfer rates and 500 MHz bandwidth for high-speed networking.
What is the maximum operating temperature for this Cat6a cable?
This cable is rated for operating temperatures ranging from -4°F (-20°C) up to 176°F (80°C).
What hardware is compatible with the C2G07401?
This cable is designed for use with 10GBase-T ports, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels.
How does the snagless design benefit installers?
The snagless, booted RJ-45 connectors protect the connector's locking tab from damage, which is especially useful in high-density patch environments.
Is this cable suitable for environments with high electromagnetic interference?
Yes, the shielded STP construction is specifically designed to protect high-speed network connections from noise and EMI.
