10ft (3m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Orange
10ft Orange Cat6 crossover patch cable with snagless connectors for peer-to-peer network connections

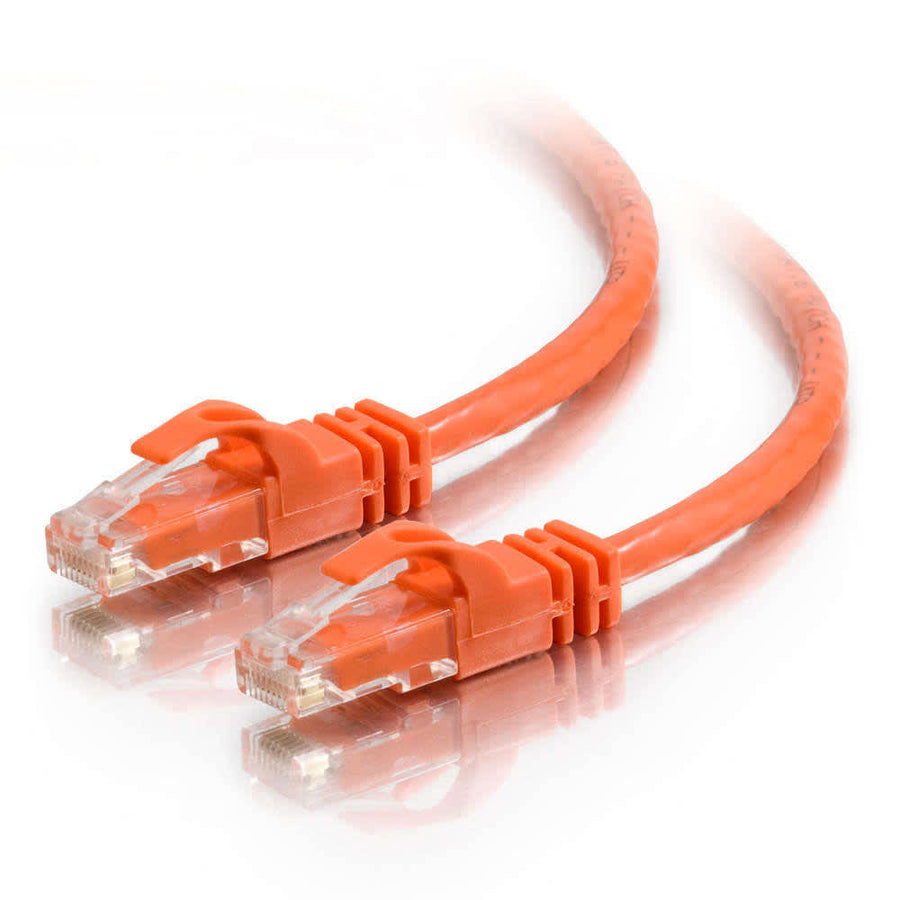

The C2G CG27893 is a 10ft (3.1 m) Cat6 Unshielded UTP Network Crossover Patch Cable designed to facilitate direct connections between two computers for file and data sharing. By utilizing a crossed pin configuration, this cable enables peer-to-peer communication without the requirement of an intermediary hub or switch. It is also suitable for connecting network switches and hubs that lack uplink ports to other networking hardware. This orange patch cable is constructed with 24 AWG stranded copper conductors and features a PVC jacket and connector hood material. The snagless design protects the RJ-45 connector clips from damage during installation and removal, ensuring the cable remains intact even with frequent use. Engineered to meet TIA/EIA Cat6 standards, the cable is built to handle Gigabit Ethernet speeds with a bandwidth of 500 mHz. This construction helps minimize Near-End Crosstalk (NEXT), structural return loss (SRL), and impedance issues to maintain error-free transmission.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278931 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the main use for the C2G CG27893 crossover cable?
This cable is used to connect two computers directly for data sharing or to link two switches/hubs that lack uplink ports.
Will this cable work for Gigabit Ethernet speeds?
Yes, this Cat6 cable is designed to handle Gigabit Ethernet speeds and meets TIA/EIA Cat6 standards.
What is the difference between this and a standard patch cable?
Unlike a standard patch cable, this has a crossed pin configuration specifically for peer-to-peer networking without a switch.
Is this cable shielded or unshielded?
The CG27893 is an unshielded (UTP) cable using stranded copper conductors.
What are the environmental operating limits for this cable?
The cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
