10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Gray

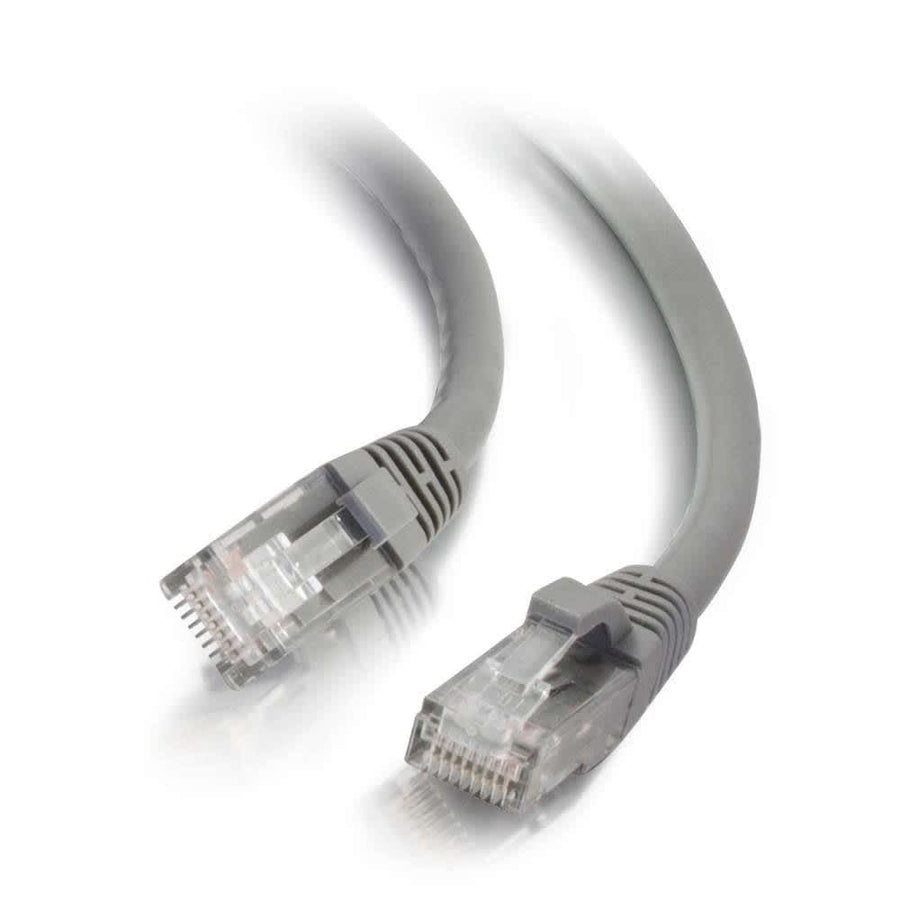

Gray Cat6 UTP patch cable 50-pack, 10 ft length, featuring snagless boots and stranded copper conductors
The C2G CG29038 is a 50-pack of 10 ft (3.1 m) Cat6 unshielded UTP Ethernet patch cables designed for high-bandwidth voice, data, or video distribution in Gigabit computer networks. These cables utilize 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. Each pair is bonded to maintain twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL) according to TIA/EIA standards. Each cable features a molded, snagless PVC boot that provides extra strain relief and prevents accidental snags during installation. These gray cables use a T568B wiring scheme and are rated for operating temperatures between -4°F (-20°C) and 176°F (80°C). This bulk pack is a versatile solution for large-scale network deployments requiring reliable Cat6 performance in a gray color-coded configuration.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 14.66 lbs (6.7 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290384 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the total quantity in one order of CG29038?
Each order contains a bulk multipack of 50 individual 10 ft patch cables.
Does this Cat6 cable use stranded or solid copper?
The CG29038 features 24 AWG stranded copper conductors to assist in minimizing Near-End Crosstalk (NEXT).
What is the wiring scheme for these patch cables?
These cables are wired according to the T568B standard.
Will these cables protect against snags during installation?
Yes, each cable is equipped with a molded, snagless PVC boot to prevent unwanted snags and provide strain relief.
Is the CG29038 TAA compliant?
No, this specific SKU is not TAA compliant.
