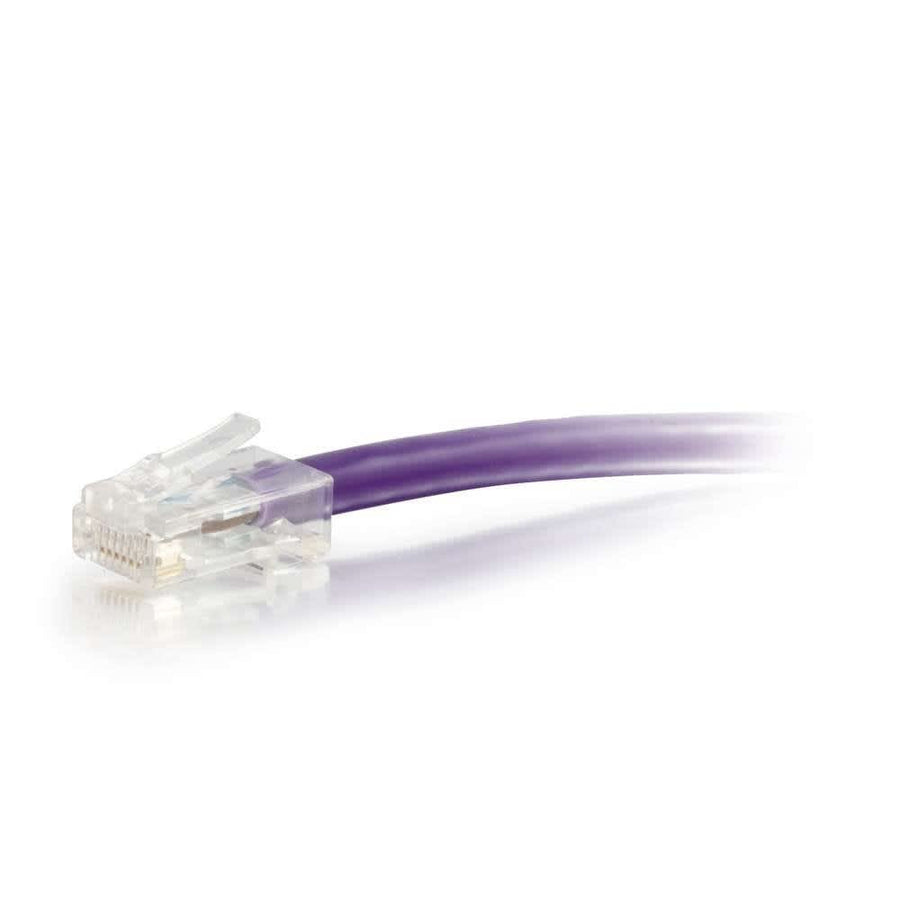

10ft (3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
10 ft Purple Cat6 UTP patch cable with RJ-45 male connectors and stranded copper conductors
The CG04220 is a 10 ft (3.1 m) Cat6 unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This purple cable utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels, making it suitable for high-performance networking environments. It features a non-booted connector type with RJ-45 male ends on both sides, following the T568B wiring scheme. The cable is constructed with a PVC jacket and has a cable diameter of 0.24 in (6 mm). For technical installation, it maintains an impedance of 100 ohms and a capacitance of 5600pf/100m. This specific SKU is part of the C2G Cat6 Non-Booted Patch Cable Series, which is available in various lengths and colors for easy network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042204 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring configuration for the CG04220?
This cable uses the T568B wiring scheme with RJ-45 male connectors.
Is the CG04220 a shielded or unshielded cable?
The CG04220 is an unshielded UTP (Unshielded Twisted Pair) cable.
What is the maximum temperature rating for this patch cable?
The cable has a temperature rating of 75°C.
What are the dimensions of the CG04220 cable?
The cable is 10 ft (3.1 m) in length and has a 0.24 in (6 mm) diameter.
What certifications does this C2G cable have?
This product is CE, REACH, and RoHS compliant.
