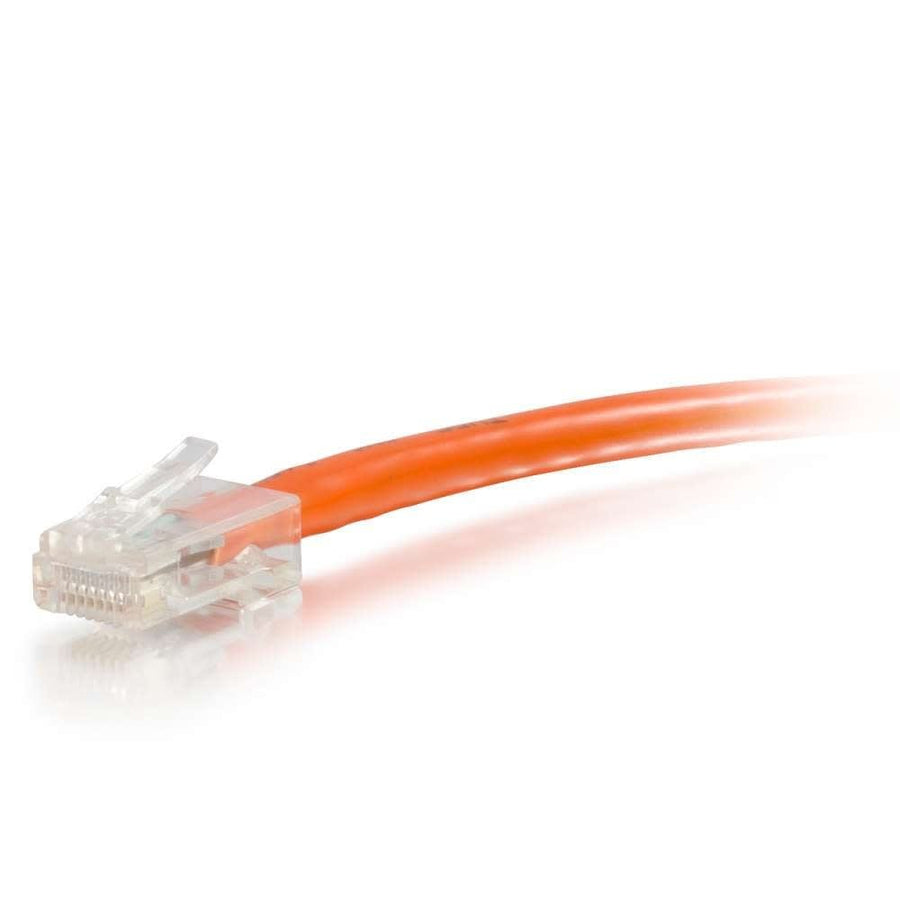

10ft (3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Orange
10ft Cat6 UTP patch cable in orange with RJ-45 male connectors and T568B wiring
The C2G CG04199 is a 10ft (3.1 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable features orange PVC jacketing and is built with stranded copper conductors and 24 AWG wire gauge. It utilizes a T568B wiring scheme and is configured with non-booted RJ-45 male connectors on both ends. This design minimizes Near-End Crosstalk (NEXT) levels and reduces structural return loss (SRL) and impedance. Each individual pair is bonded to help maintain twist-spacing throughout the line up to the termination point. The cable operates with a temperature rating of 75°C and maintains a cable diameter of 0.24 in (6 mm). This specific orange model is part of a larger series of Cat6 Non-Booted Patch Cables available in various lengths and colors for network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041993 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the CG04199?
This Cat6 patch cable uses the T568B wiring scheme for all connections.
Is this cable shielded or unshielded?
The CG04199 is an Unshielded UTP (UTP) cable with a PVC jacket.
What is the maximum temperature rating for this cable?
This cable has a temperature rating of 75°C.
Does this C2G cable come with boots on the connectors?
No, this is a non-booted series patch cable with RJ-45 male connectors.
What is the cable diameter of the CG04199?
The cable has a diameter of 0.24 in (6 mm).
