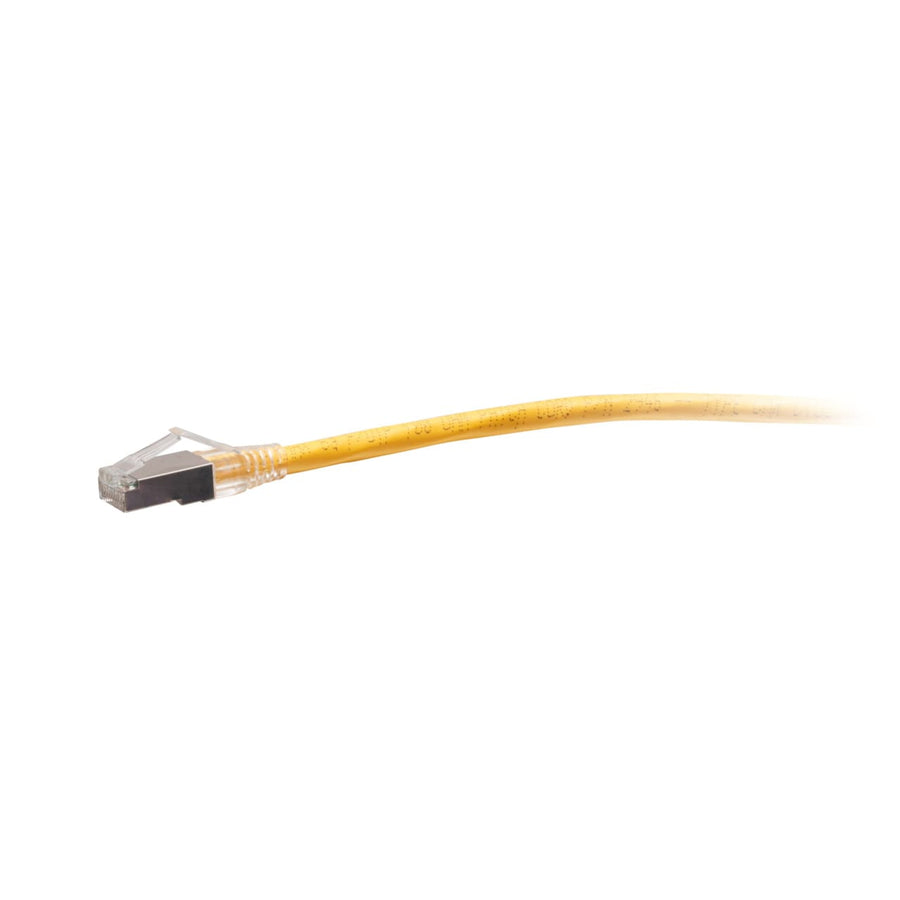

100ft (30.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
100ft TAA-compliant Cat6a shielded STP patch cable in yellow, supporting 10GBase-T high-speed data applications
The C2G43916 is a 100ft (30.5m) TAA-compliant Cat6a snagless shielded (STP) network cable in yellow. This passive patch cable is constructed with high-quality, made in the USA copper cabling and features an aluminum foil shield to protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for bandwidth-intensive voice, data, and video distribution. The snagless RJ45 connector design is engineered to protect the clips from being snapped off during high insertion cycles, while 50-micron gold-plated contacts maintain signal integrity. This CMR rated, riser-rated cable is suitable for use in various environments with an operating temperature range of -4° - 167°F (-20° - 75°C). Because it is TAA compliant, this cable is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439165 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Will this C2G43916 cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable meets ANSI/TIA-568.2-D standards for supporting 10GBASE-T high-speed applications.
Is the C2G43916 TAA compliant for government use?
Yes, this cable is TAA compliant, making it approved for United States government projects and facilities.
What is the purpose of the shielding on this cable?
The shielded STP design uses an aluminum foil shield to protect against EMI, RFI, and alien crosstalk in high-speed connections.
What temperature range can this cable handle?
This cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
What is the wiring scheme for this 100ft cable?
The C2G43916 uses the T568B wiring scheme and features 26 AWG stranded copper conductors.
