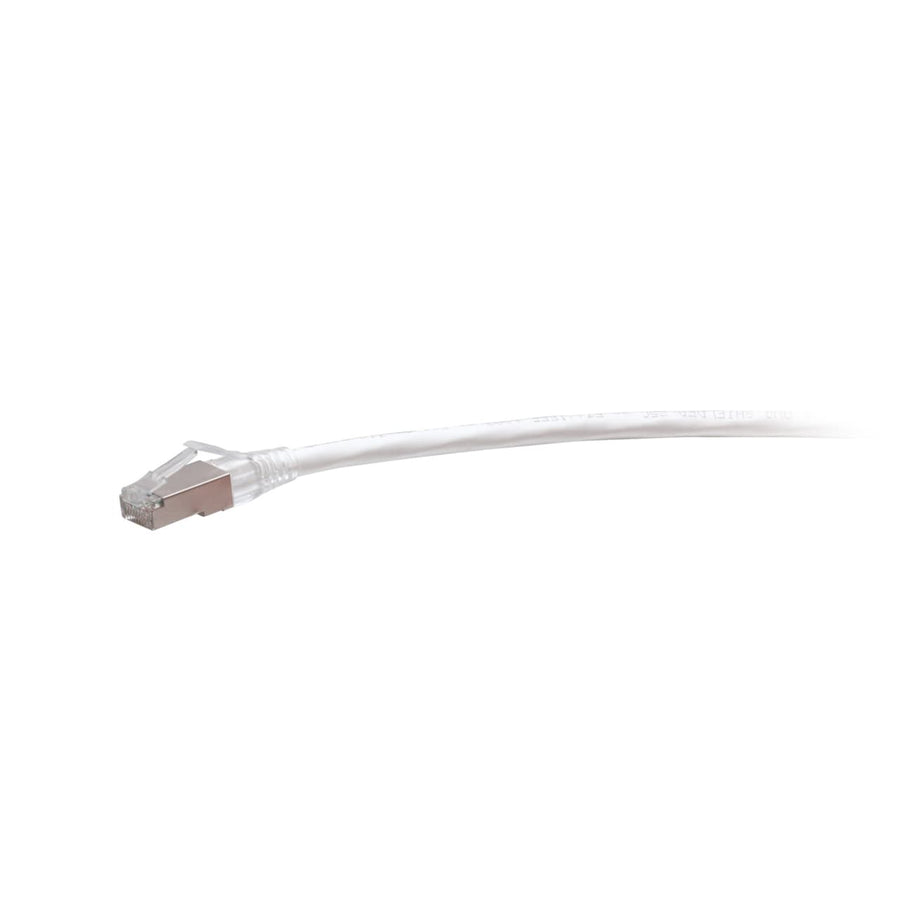

100ft (30.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
100ft TAA-compliant Cat6a shielded snagless network cable in white, optimized for 10GBase-T high-speed performance
The C2G43979 is a 100ft (30.5 m) TAA-compliant Cat6a shielded (STP) network cable designed for high-bandwidth, high-speed 10GBase-T environments. This snagless patch cable is ideal for connecting network adapters, switches, routers, and patch panels while protecting against EMI, RFI, and alien crosstalk. It features high-quality, made in the USA copper conductors with aluminum foil shielding and 50-micron gold-plated contacts to ensure signal integrity in demanding voice, data, and video distribution applications. This CMR-rated, riser-application cable utilizes a stranded PVC jacket and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The snagless RJ-45 connector design protects the clips from damage during frequent insertion cycles, making it suitable for high-traffic network infrastructure. This passive cable is white to help with visual organization and is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C). For government and high-security projects, this cable meets TAA requirements for use in United States facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439790 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43979 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable specifically approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, it is designed for 10GBase-T ports and equipment, providing the bandwidth necessary for 10 Gigabit network connections.
What is the benefit of the snagless connector on this cable?
The snagless design protects the RJ45 clips from being snapped off, which is particularly useful in applications with high insertion cycles.
What kind of shielding does this Cat6a cable use?
This is a shielded STP (Shielded Twisted Pair) cable with an aluminum foil shield to counter electromagnetic and radio frequency interference.
What is the maximum operating temperature for the C2G43979?
The cable is rated to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
