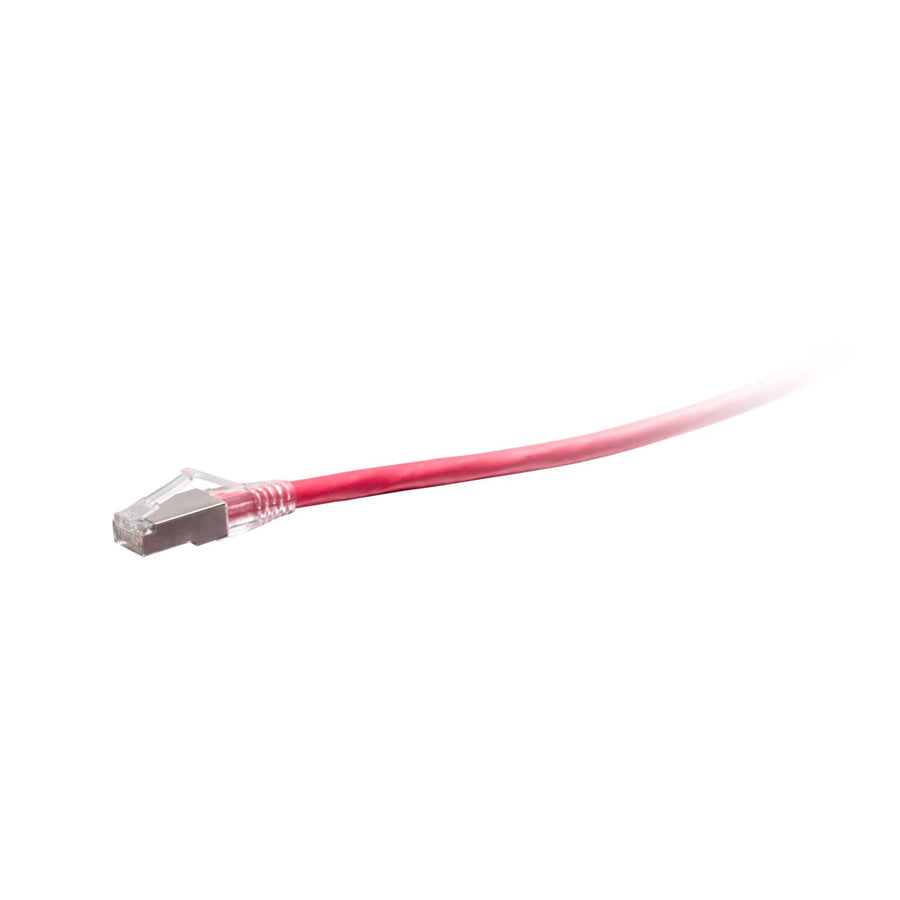

100ft (30.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
100ft TAA-compliant Cat6a snagless shielded (STP) network cable in red for 10GBase-T applications
The C2G43895 is a 100ft (30.5 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in red. Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, this passive cable is designed to support 10GBASE-T (10 Gigabit Ethernet) applications. It features a shielded STP construction with aluminum foil to protect high-speed 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The cable is constructed with made-in-the-USA copper stranded conductors and 26 AWG wire gauge. For reliable connectivity in environments with high insertion cycles, the snagless RJ-45 male connectors feature 50-micron gold-plated contacts and a design that protects the clips from snapping off. This CMR-rated riser cable uses a PVC jacket and operates within a temperature range of -4° to 167°F (-20° to 75°C). Because it is TAA compliant, this cable is approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438953 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43895 TAA compliant?
Yes, this C2G43895 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to support 10GBASE-T (10 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D standards.
Does this cable provide shielding against interference?
Yes, this is a shielded STP cable using aluminum foil to counter EMI, RFI, and alien crosstalk.
What is the jacket rating for this cable?
This is a CMR-rated riser cable with a PVC jacket, suitable for vertical runs between floor levels.
What are the connector types on this cable?
The C2G43895 features two RJ-45 male connectors with a snagless design to protect the clips.
