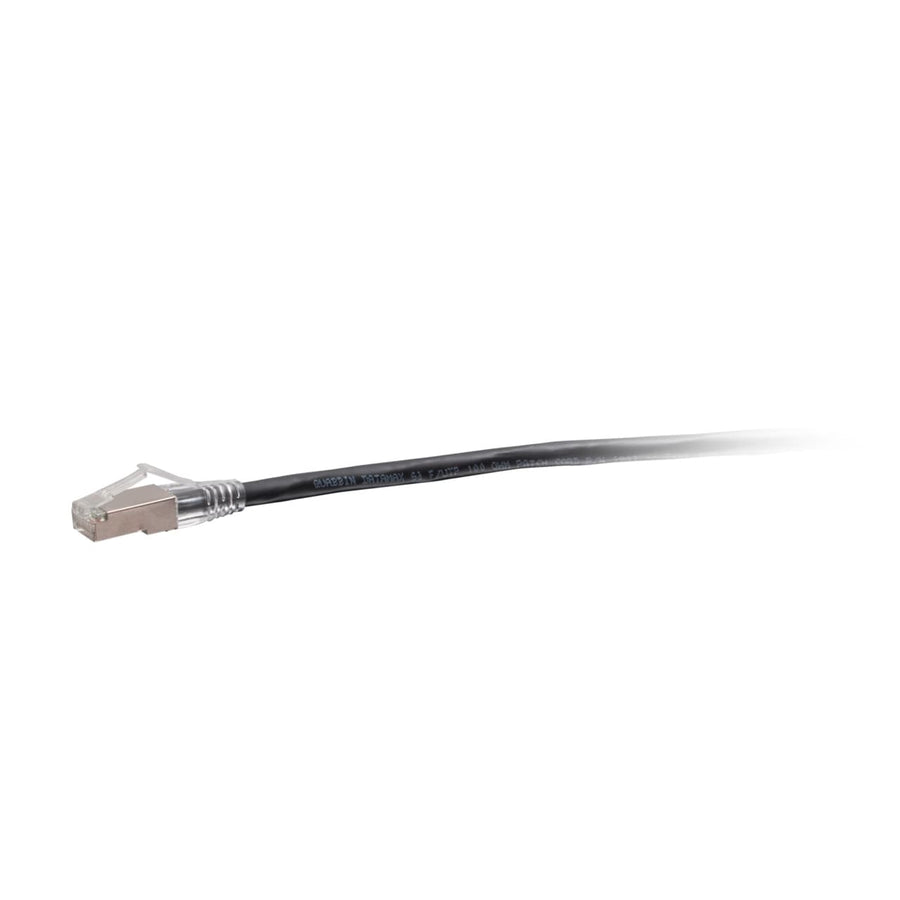

100ft (30.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
100ft Cat6a shielded STP network cable, snagless RJ45 connectors, TAA-compliant for government use
The C2G43853 is a 100ft (30.5 m) Cat6a shielded STP network cable designed for high-bandwidth 10GBASE-T applications. This snagless patch cable is built with stranded copper conductors and features an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. It is engineered to reduce both impedance and structural return loss (SRL) in voice, data, and video distribution environments. The cable features 50-micron gold-plated contacts and a snagless RJ45 connector design that protects the clips from damage during high-frequency insertion cycles. This TAA-compliant cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it approved for United States government projects and facilities. The jacket is CMR rated and PVC-based, suitable for riser applications. Operating within a temperature range of -4° - 167°F (-20° - 75°C), this cable provides a reliable connection for network adapters, hubs, switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438533 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43853 TAA compliant for government use?
Yes, this F-Series Cat6a cable is TAA-compliant and approved for United States government projects and facilities.
What is the maximum operating temperature for this cable?
The cable is rated for an operating temperature range of -4° - 167°F (-20° - 75°C).
What type of shielding does this Cat6a cable use?
This is a Shielded STP (Shielded Twisted Pair) cable utilizing an aluminum foil shield to protect against interference.
Can I use this cable for 10 Gigabit Ethernet?
Yes, the cable is designed for 10GBASE-T ports and meets ANSI/TIA-568.2-D standards for high-speed 10 Gigabit connections.
Does this cable have a warranty?
Yes, the C2G43853 comes with a lifetime warranty.
