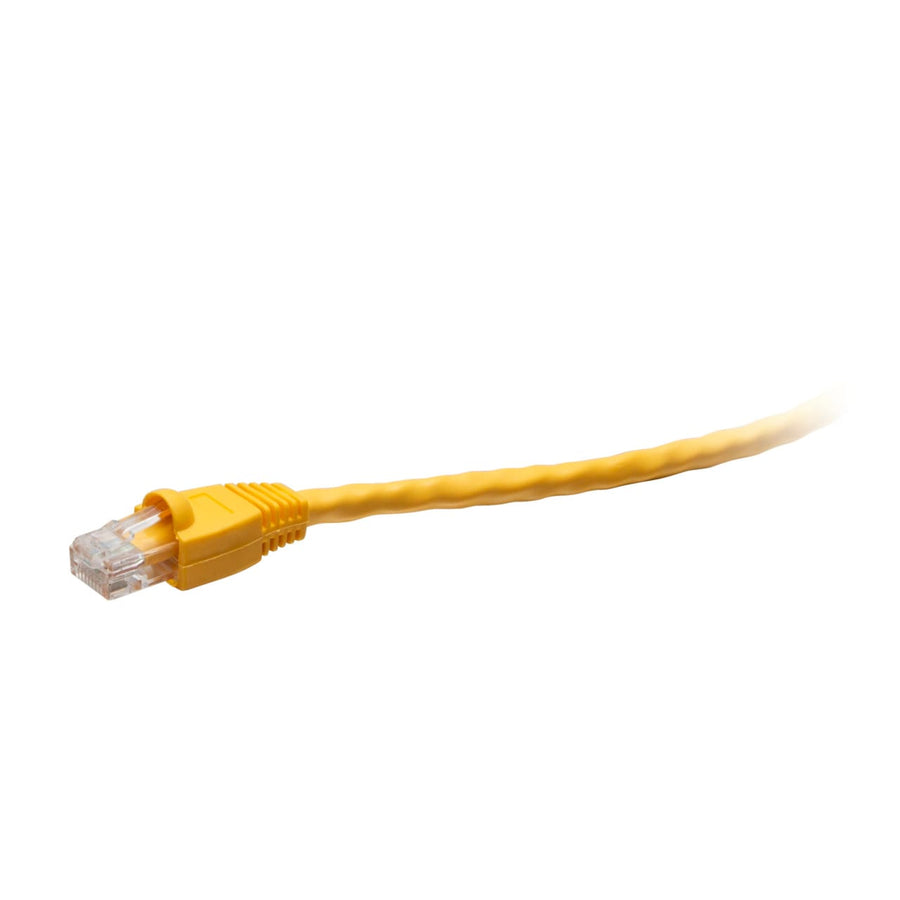

100ft (30.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
100ft Yellow Cat6 UTP network cable, TAA-compliant, with snagless RJ45 connectors and CMR riser rating
The C2G C2G43526 is a 100ft (30.5 m) Cat6 Unshielded Twisted Pair (UTP) network cable finished in yellow for easy color-coding within complex installations. This TAA-compliant cable is designed to meet the stringent requirements of United States government projects and facilities. It utilizes high-quality, made-in-the-USA copper cabling with a stranded configuration and 24 AWG wire gauge to provide consistent performance. This cable supports a maximum frequency of 600 MHz, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for applications including 1000BASE-T (1 Gigabit Ethernet). The snagless RJ45 male connectors feature molded boots to protect the clips from snapping during high-insertion cycles and provide additional strain relief. Each connector is equipped with 50-micron gold-plated contacts to maintain signal integrity. The PVC jacket is CMR rated for riser applications and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). This passive cable is suitable for connections between network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 2.26 lbs (1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435266 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43526 TAA compliant for government projects?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
Will this Cat6 cable work with my network switch or router?
Yes, this snagless Cat6 UTP cable is designed for use with network adapters, hubs, switches, and routers supporting 1000BASE-T.
What is the maximum frequency and performance of this cable?
The cable provides an enhanced 600 MHz maximum frequency, meeting or exceeding ANSI/TIA-568.2-D standards.
What kind of installation rating does this cable have?
This cable features a PVC jacket with a CMR rating, making it suitable for riser applications.
How does the snagless design help during installation?
The molded snagless boot protects the RJ45 clips from snapping off and provides extra strain relief for the connection.
