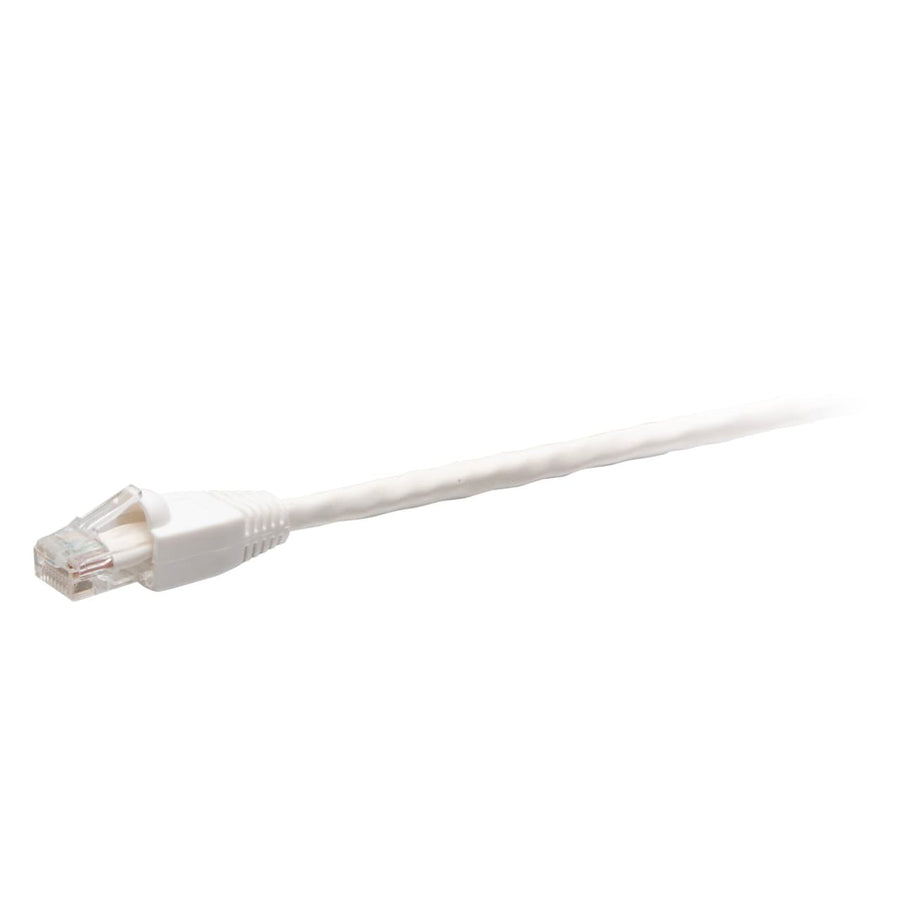

100ft (30.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
100ft TAA-compliant Cat6 Snagless UTP network cable, white finish, 24 AWG copper construction
The C2G43589 is a 100 ft (30.5 m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in white. This passive cable is engineered for use in United States government projects and facilities due to its TAA compliance. It features 24 AWG stranded copper conductors that support 1000BASE-T (1 Gigabit Ethernet) applications by meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Each RJ-45 male connector is equipped with 50-micron gold-plated contacts to improve signal integrity and a molded snagless boot to provide strain relief and protect the clips from damage during high-insertion cycles. This CMR rated, riser-rated cable has a PVC jacket and is designed for connection to network adapters, hubs, switches, routers, and servers. The cable maintains performance across an operating temperature range of -4° - 167°F (-20° - 75°C). It is built with high-quality, made-in-the-USA raw cable to ensure consistent and reliable performance in professional network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 2.26 lbs (1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435891 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is this C2G43589 cable TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it suitable for United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable features enhanced 600 MHz maximum frequency and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
Does this cable require special installation tools?
This is a pre-terminated patch cable with molded snagless boots, so it is ready for immediate use without additional crimping tools.
What is the difference between the jacket rating and the application?
This cable has a CMR rating and is designed for riser applications, making it suitable for vertical runs between floors.
Can I use this cable with patch panels or enclosures?
It is compatible with various hardware including the CG37199 24-Port Cat6 110-Type Patch Panel and various EN-series enclosures.
