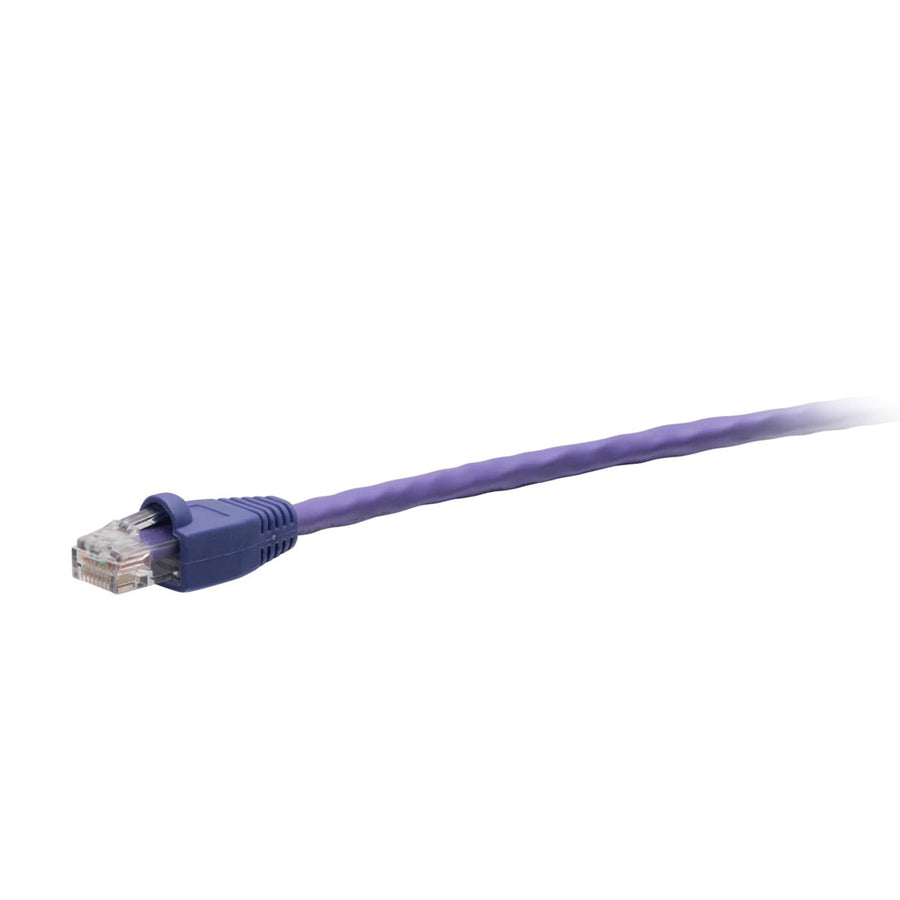

100ft (30.5m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
100ft Purple Cat6 Snagless UTP cable, TAA-compliant and CMR rated for high-performance 1000BASE-T networking
The C2G43568 is a 100ft (30.5 m) TAA-compliant Cat6 network cable designed for mission-critical connectivity in United States government projects and facilities. This unshielded (UTP) snagless cable is engineered for high-frequency performance, offering an enhanced 600 MHz maximum frequency to support applications like 1000BASE-T (1 Gigabit Ethernet). The construction features high-quality, made in the USA stranded copper conductors with a 24 AWG wire gauge to ensure consistent and reliable signal integrity. Each end is equipped with an RJ-45 male connector featuring 50-micron gold-plated contacts. To protect against damage during high-cycle insertion, the molded snagless boot provides extra strain relief and prevents clips from snapping. This purple cable is CMR rated for riser applications and operates within a temperature range of -4° - 167°F (-20° - 75°C). It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 2.26 lbs (1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435686 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43568 TAA compliant for government contracts?
Yes, this cable is TAA compliant and meets the stringent requirements for use in United States government projects and facilities.
What is the maximum frequency and performance rating of this Cat6 cable?
This cable is rated for an enhanced 600 MHz maximum frequency and meets or exceeds ANSI/TIA-568.2-D standards for 1000BASE-T applications.
What are the installation requirements for this cable's jacket?
This is a CMR rated cable with a PVC jacket, making it suitable for riser applications in network installations.
Does this cable include strain relief for the RJ45 connectors?
Yes, it features a molded, snagless boot that provides extra strain relief and protects the connector clips from being snapped off.
What is the temperature operating range for this 100ft cable?
The cable is designed to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
