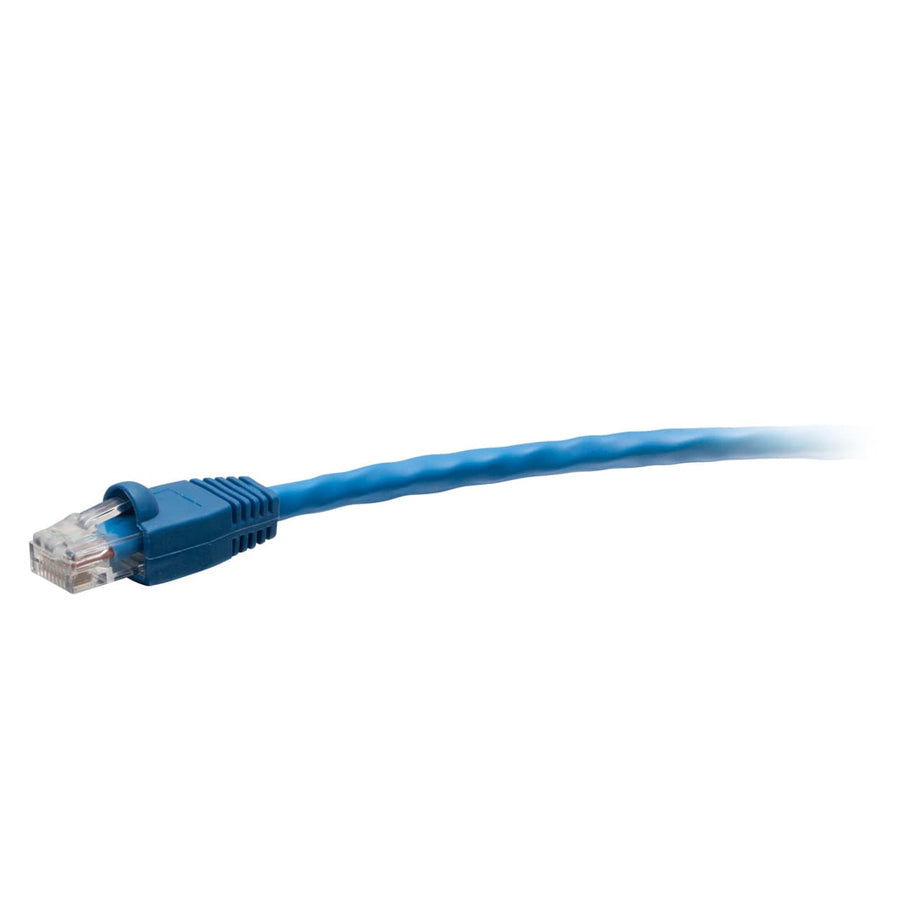

100ft (30.5m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
100ft TAA-compliant Cat5e snagless UTP network cable in blue, featuring 26 AWG copper conductors for reliable 1000BASE-T performance
The C2G43424 is a 100ft (30.5m) TAA-compliant Cat5e snagless unshielded (UTP) network cable in blue. Designed for high-performance connectivity in network adapters, hubs, switches, routers, and servers, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It supports 1000BASE-T (1 Gigabit Ethernet) applications and features an enhanced 350 MHz maximum frequency, providing higher performance than standard Cat5e options. This cable is constructed with high-quality, made-in-the-USA stranded copper conductors and 26 AWG wire gauge. The molded, snagless boot protects the RJ45 clips from being snapped off during installation or in high-insertion environments, while also providing strain relief. The connectors feature 50-micron gold-plated contacts to maintain signal integrity. This CMR rated riser cable has a PVC jacket and is suitable for use in environments with operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 1.52 lbs (0.7 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434245 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43424 TAA compliant for government use?
Yes, this F-Series Cat5e cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat5e cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) applications and features an enhanced 350 MHz maximum frequency.
What kind of protection does the snagless boot provide?
The molded snagless boot protects the RJ45 connector clips from being snapped off during installation and provides additional strain relief.
What is the conductor material and gauge for the C2G43424?
The cable uses high-quality, made-in-the-USA stranded copper conductors with a 26 AWG wire gauge.
Where can I find the technical submittal for this cable?
You can view the technical details in the TAA Compliant F-Series Cat5e Snagless Unshielded Network Cable PDF document.
