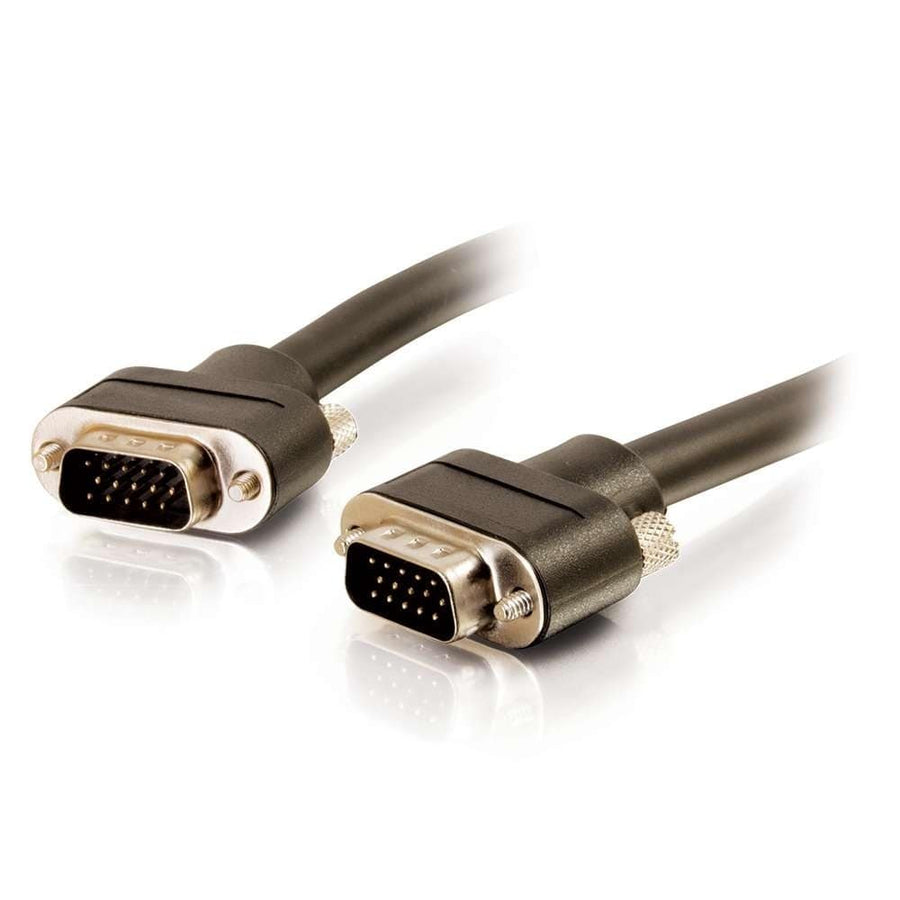

100ft (30.5m) Select VGA Video Cable M/M - In-Wall CMG-Rated
100ft In-Wall VGA cable supporting resolutions up to QXGA (2048x1536) with CMG and FT4 ratings
The C2G CG50220 is a 100ft (30.5 m) Select VGA video cable designed for source-to-display connectivity in both residential and commercial environments. This cable is specifically engineered for in-wall installation, featuring a PVC jacket that is both CMG and FT4 rated to meet safety requirements. It supports high-resolution video applications up to QXGA (2048x1536), making it suitable for high-end desktop or display setups. To ensure optimal signal integrity, all 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, allowing the source to communicate the display's capabilities and select the correct resolution automatically. The cable features low-profile, rounded male-to-male VGA connectors, which facilitate easier installation in restricted spaces like projector mount poles. With a cable diameter of 0.33 in (8.5 mm) and a bend radius of 2.01 in (51 mm), this 30-gauge wire solution is built for long-distance reliability.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502203 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G CG50220 rated for in-wall installation?
Yes, this cable features a PVC jacket that is CMG and FT4 rated for in-wall applications.
What is the maximum resolution supported by the CG50220?
The cable supports video resolutions up to QXGA (2048x1536) via its 15-pin wired configuration.
How does EDID support work on this VGA cable?
Because all 15 pins are wired, this cable supports DDC2 (E-DDC) and EDID signals to ensure the source device uses the display's optimal resolution.
Can this cable be used in tight spaces like projector mounts?
Yes, the CG50220 is designed with low-profile, rounded connectors to simplify installation in confined areas like projector mount poles.
What is the diameter and bend radius for this 100ft cable?
The cable has a diameter of 0.33 in (8.5 mm) and a minimum bend radius of 2.01 in (51 mm).
