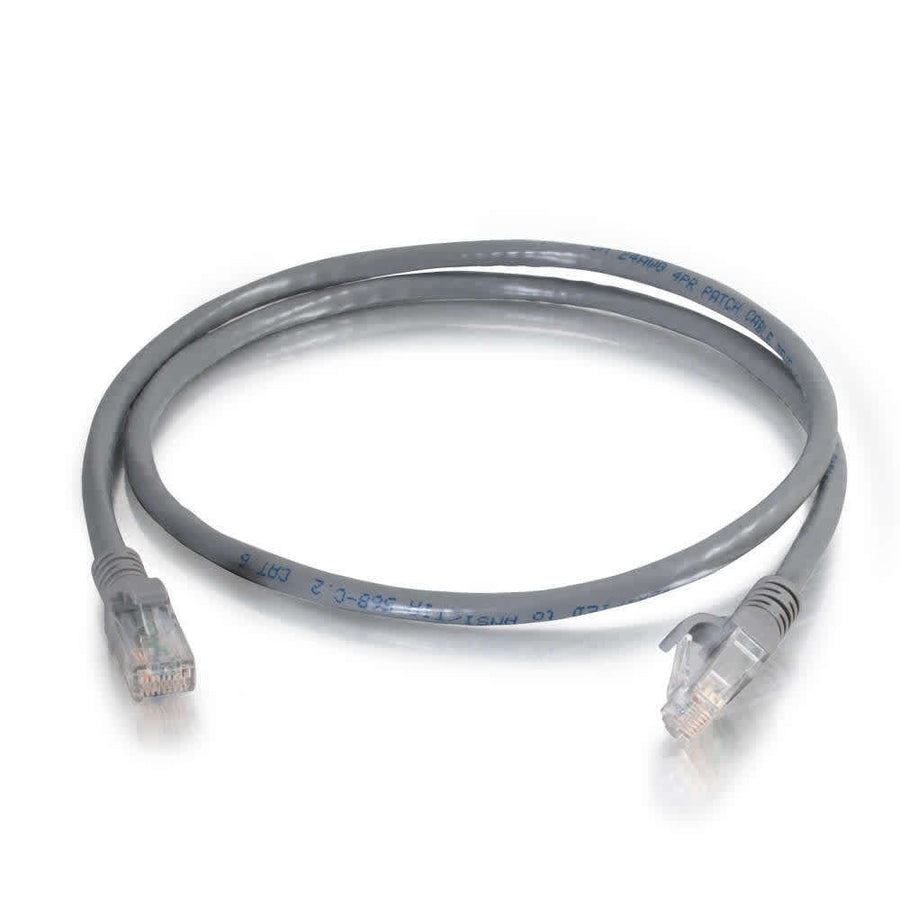

100ft (30.5m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Gray
100ft Cat6 UTP snagless patch cable in gray, featuring stranded copper conductors and TAA compliance
The C2G CG10311 is a 100ft (30.5m) Cat6 UTP unshielded Ethernet network patch cable designed for voice, data, and video distribution. This cable is engineered to support bandwidth-intensive applications by meeting all TIA/ANSI standards. It features a T568B wiring scheme and utilizes 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. The gray PVC jacket is 0.24 in (6.2 mm) in diameter and includes molded, snag-free boots on both RJ-45 male connectors to provide strain relief and prevent accidental disconnects during installation. This specific SKU is TAA compliant, making it suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. It also meets NDAA 889, RoHS, REACH, TSCA, and Prop 65 requirements. The cable is built with a 100 ohm impedance and is rated for standard, non-rated environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.62 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103110 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG10311 TAA compliant?
Yes, this cable is TAA compliant and meets NDAA 889 requirements, making it suitable for many government and regulated installations.
What is the wiring scheme for the CG10311?
The C2G CG10311 uses the T568B wiring scheme on its RJ-45 male connectors.
Does this cable feature strain relief?
Yes, the cable is designed with molded, snag-free boots on the connectors to provide extra strain relief and prevent snags.
What is the conductor material and gauge for this patch cable?
This Cat6 cable uses 24 AWG stranded copper conductors.
What is the diameter of the CG10311 cable?
The cable has a diameter of 0.24 in (6.2 mm).
