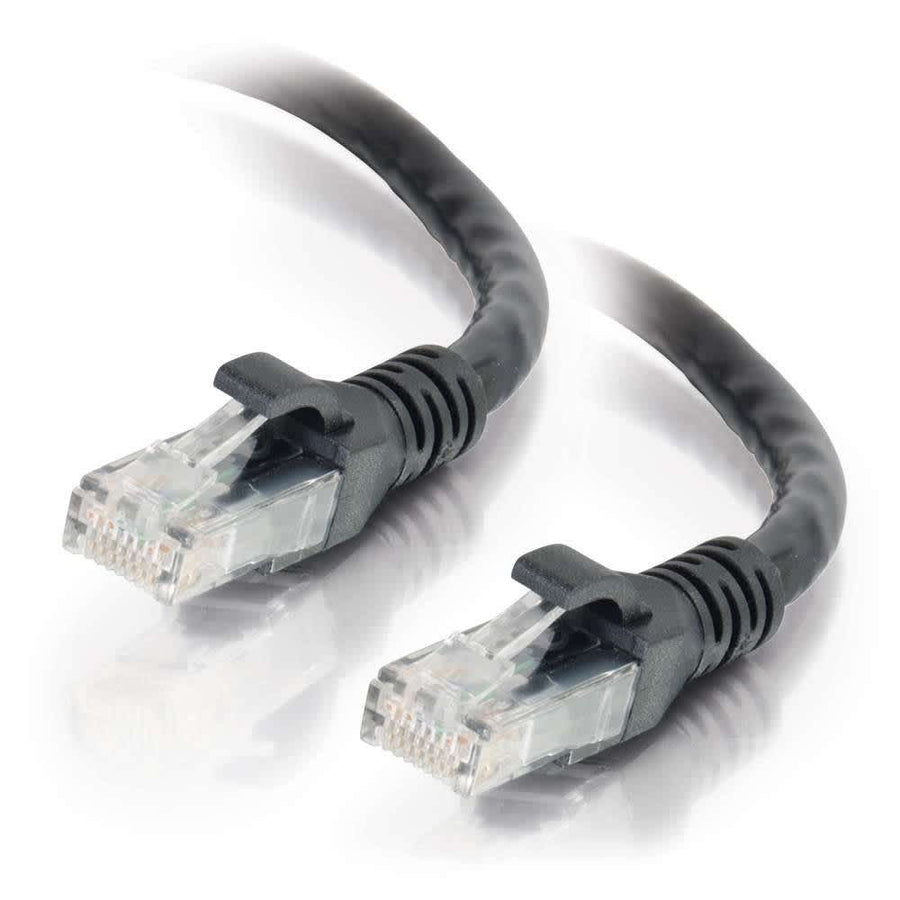

100ft (30.5m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Black
100ft Cat6 UTP snagless patch cable in black, TAA compliant and designed for high-bandwidth voice and data distribution
The C2G CG10300 is a 100ft (30.5m) Cat6 UTP unshielded Ethernet network patch cable designed for bandwidth-intensive voice, data, and video distribution. This cable meets all TIA/ANSI standards and is TAA compliant, making it suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. It features a 24 AWG stranded copper conductor and a PVC jacket with a 0.24 in (6.2 mm) diameter. The connector design utilizes a shortened body plug to minimize Near-End Crosstalk (NEXT) levels, while the molded, snagless boot provides strain relief and prevents snags during installation. This TAA-compliant cable is built with a T568B wiring scheme and is suitable for standard, non-rated environments. It is a black, unshielded (UTP) solution that facilitates high-speed connectivity in professional networking installations.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.71 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103004 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G CG10300 TAA compliant?
Yes, this Cat6 cable is TAA compliant, meeting the requirements for procurement in environments where products must be manufactured in Trade Agreement Act list countries.
What is the wiring scheme for this patch cable?
The CG10300 uses the T568B wiring scheme for its RJ-45 male to RJ-45 male connections.
What kind of shielding does this Cat6 cable have?
This is an unshielded (UTP) cable, meaning it does not have internal foil or braiding to protect against electromagnetic interference.
Does this cable support high-speed data applications?
Yes, the Cat6 construction is designed to handle bandwidth-intensive applications for voice, data, and video distribution.
What is the diameter of the cable jacket?
The cable has a diameter of 0.24 in (6.2 mm).
