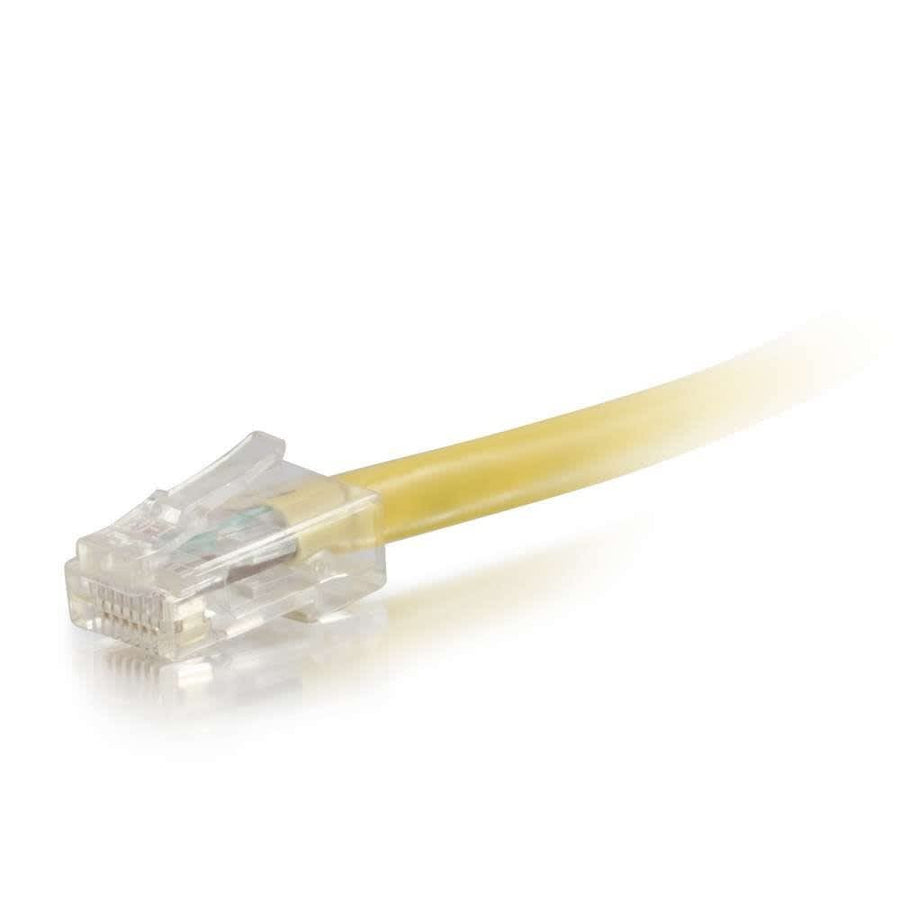

100ft (30.5m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
100ft Cat6 Unshielded UTP Ethernet patch cable in yellow with stranded copper conductors and T568B wiring
The C2G CG04188 is a 100ft (30.5m) Cat6 non-booted patch cable designed for bandwidth-intensive applications including fast Ethernet, Gigabit computer networks, and the distribution of voice, data, or video. This unshielded (UTP) cable is constructed with 24 AWG stranded copper conductors and a PVC jacket. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point. This construction helps reduce impedance and structural return loss (SRL) to meet all Cat6 TIA/EIA standards. The cable features two RJ-45 male connectors and follows the T568B wiring scheme. With a cable diameter of 0.24 in (6 mm), this yellow patch cable is suitable for color-coding network installations. It is rated for temperatures up to 75°C and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.57 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041887 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG04188 TAA compliant?
No, this specific SKU is not listed as TAA compliant.
What is the wiring standard for this Cat6 cable?
This cable uses the T568B wiring scheme for its RJ-45 male terminations.
What is the maximum operating temperature for the CG04188?
This cable is rated for temperatures up to 75°C.
Does this cable feature shielded or unshielded conductors?
The CG04188 is an unshielded (UTP) cable with stranded copper conductors.
What is the diameter of the cable jacket?
The cable diameter is 0.24 in (6 mm).
