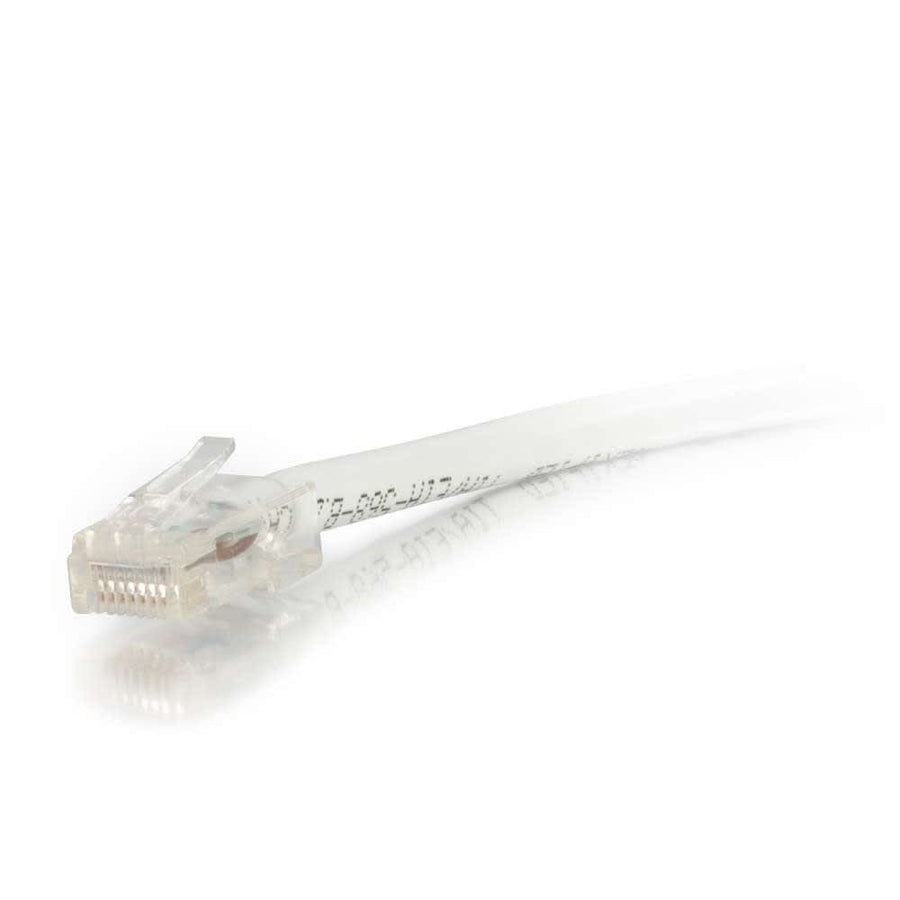

100ft (30.5m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
100ft Cat6 UTP patch cable in white with stranded copper conductors and T568B wiring
The C2G CG04251 is a 100ft (30.5m) Cat6 unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in Gigabit computer networks. This cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire line length, reaching the termination point to reduce impedance and structural return loss (SRL). This cable features a non-booted connector type and a standard PVC jacket rated for temperatures up to 75°C. The wiring follows the T568B scheme with RJ-45 male connectors on both ends. This white patch cable is part of a larger series of Cat6 Non-Booted Patch Cables available in various lengths and colors to support network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.7 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042518 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04251?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors.
Is the C2G CG04251 TAA compliant?
No, this specific SKU is not TAA compliant.
What are the electrical specifications for this Cat6 cable?
It features a maximum conductor DC resistance of 9.38#/100m, 100# impedance, and a capacitance of 5600pf/100m.
What is the maximum operating temperature for the cable jacket?
The PVC jacket is rated for a temperature of up to 75°C.
Does this cable have a warranty?
Yes, this C2G patch cable is covered by a Lifetime warranty.
