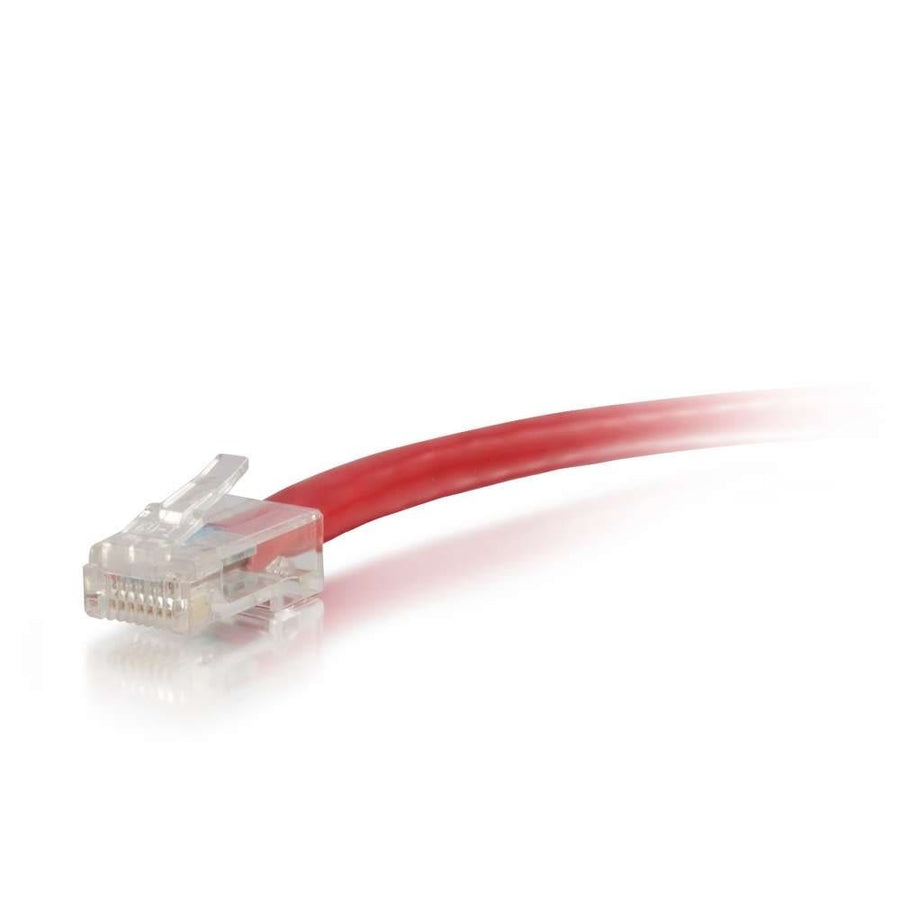

100ft (30.5m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
100ft (30.5m) Cat6 Unshielded UTP Ethernet patch cable in red with stranded copper conductors and T568B wiring
The C2G CG04167 is a 100 ft (30.5 m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution. This red cable features stranded copper conductors and a 24 AWG wire gauge, ensuring reliable performance for fast Ethernet and Gigabit computer networks. It meets all Cat6 TIA/EIA standards, which helps to drastically reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through the entire line up to the termination point, a design that minimizes Near-End Crosstalk (NEXT) levels. This non-booted cable utilizes a PVC jacket with a 0.24 in (6 mm) diameter and a 75°C temperature rating. The T568B wiring scheme and RJ-45 male connectors provide a standard solution for high-speed networking environments. This SKU is part of the Cat6 Non-Booted Patch Cable series and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.54 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041672 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG04167 TAA compliant?
No, this specific model is not TAA compliant, though it is RoHS and REACH compliant.
What is the wiring scheme for this Cat6 cable?
The CG04167 uses the T568B wiring scheme for its RJ-45 male connectors.
Can I use this cable for Gigabit networking?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth.
What is the maximum temperature rating for the CG04167?
This cable has a temperature rating of up to 75°C.
What other colors are available in this series?
This series offers various colors including Black, Blue, Gray, Green, Orange, Pink, and Purple.
