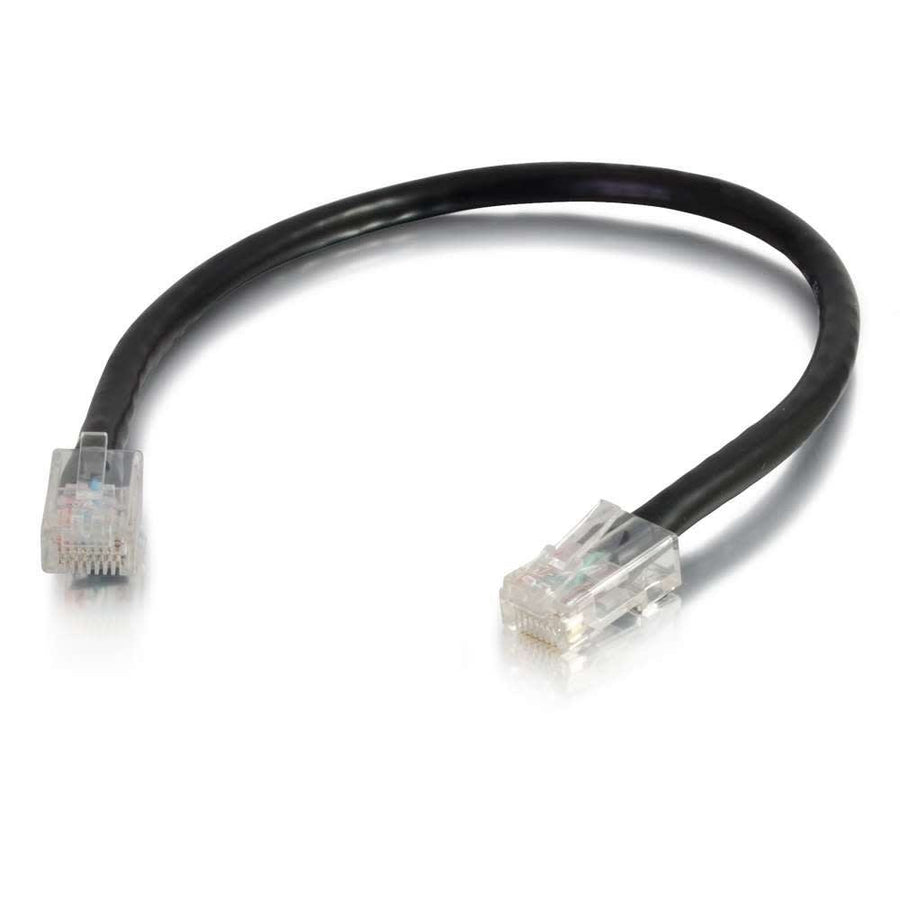

100ft (30.5m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
100ft Cat5e unshielded UTP patch cable, black finish, featuring stranded copper conductors and RJ-45 male connectors
The C2G CG26972 is a 100ft (30.5m) Cat5e Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is engineered to meet all Cat5e TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). Each individual pair is bonded together to help maintain twist-spacing consistently through to the termination point. Constructed with high-quality stranded copper conductors, this design is intended to minimize Near-End Crosstalk (NEXT) levels in fast Ethernet computer networks. This specific SKU features a non-booted connector type with RJ-45 male ends on both sides. The black PVC jacket has a diameter of 0.21 in (5.3 mm). This cable is suitable for use with network adapters, hubs, switches, and routers. It utilizes a T568B wiring scheme and is compliant with RoHS, REACH, and CE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.12 lbs (1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG26972?
This 100ft patch cable utilizes the T568B wiring scheme for its RJ-45 terminations.
Is this Cat5e cable suitable for high-bandwidth video distribution?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution applications.
What are the connector types on this cable?
The CG26972 features non-booted RJ-45 male connectors on both ends.
What is the cable diameter and jacket material?
The cable has a 0.21 in (5.3 mm) diameter and is constructed with a PVC jacket.
Does this cable support color-coding for network management?
Yes, while this SKU is Black, the series is available in 10 different colors to assist with network organization.
