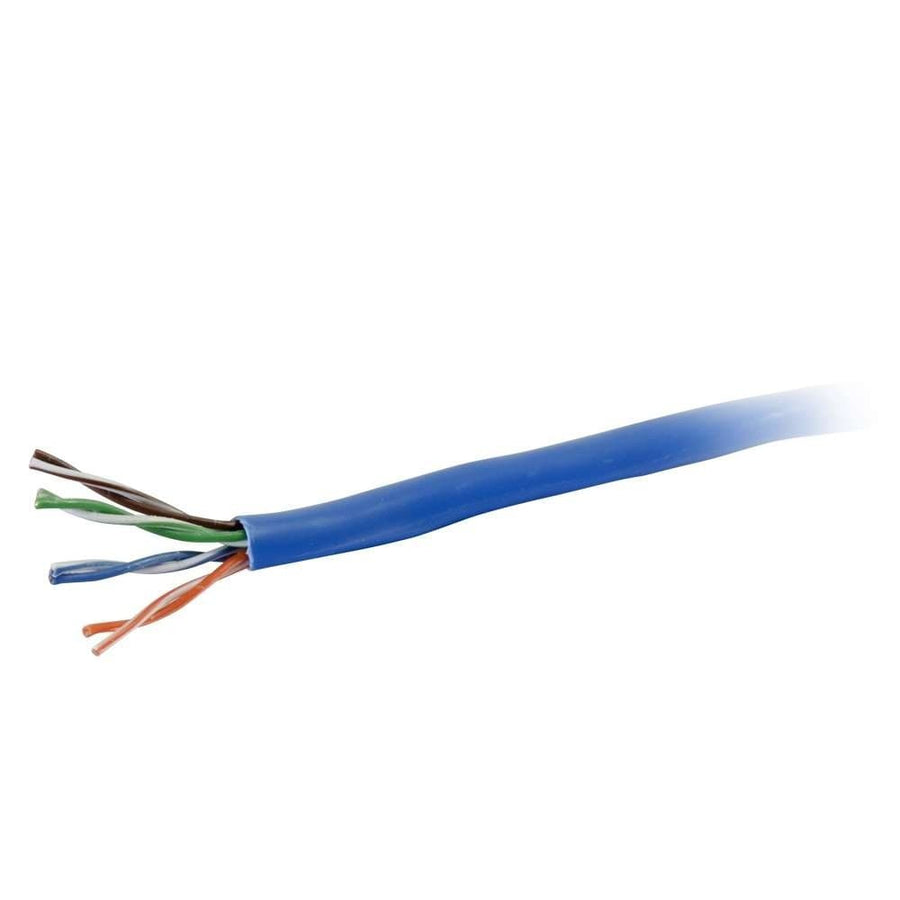

1000ft (304.8m) Cat5e Bulk Unshielded UTP Ethernet Network Cable with Stranded Conductors - In-Wall CM-Rated - Blue
1000ft (304.8m) blue Cat5e bulk UTP cable with 24AWG stranded bare copper conductors, CM-rated for in-wall use
C2G CG43401 provides 1000 ft (304.8 m) of blue Cat5e bulk Unshielded UTP Ethernet network cable, specifically designed for high-performance transmissions and in-wall installations. This cable is built to ANSI/TIA-568-C.2 standards and is tested at frequencies up to 350 MHz. Each 24AWG conductor is made of stranded bare copper, offering a high level of flexibility that makes the cable easier to work with when pulling through tight spaces or creating custom-length patch cables. For installers working on large-scale deployments, the no-snag box design allows for easy dispensing, and the jacket is foot marked to help you quickly identify how much cable remains on the spool. The PVC jacket is CMG and FT4 rated, and this TAA compliant cable is built to meet the rigorous demands of modern networking environments. It is rated for a voltage of 300V, with a spark test of 2.5KV DC and an AC leakage current of 10mA (1.5KV AC) through the jacket.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Length | 1000 ft (304.8 m) |
| Shield Type | UTP |
| Shipping Weight | 23.03 lbs (10.5 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded UTP |
| Cable Type | BulkCM-Rated (General Use) |
| Category Performance Application | Cat5e |
All other specifications 8
| Color | Blue |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120434016 |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG43401 suitable for in-wall installations?
Yes, this Cat5e cable is CM-rated for in-wall use and features an FT4 rated PVC jacket.
What is the conductor material and gauge for the CG43401?
The cable uses 24AWG stranded bare copper conductors, which provide extra flexibility for installation and custom patching.
Is this bulk cable TAA compliant for government contracts?
Yes, the CG43401 is TAA compliant and complies with NDAA 889 standards.
How can I tell how much cable is left on the 1000ft spool?
The cable jacket is foot marked, allowing you to easily identify the amount of cable remaining during a pull.
What frequency is this Cat5e cable tested for?
This bulk cable is tested at frequencies up to 350 MHz to support high-performance transmissions.
