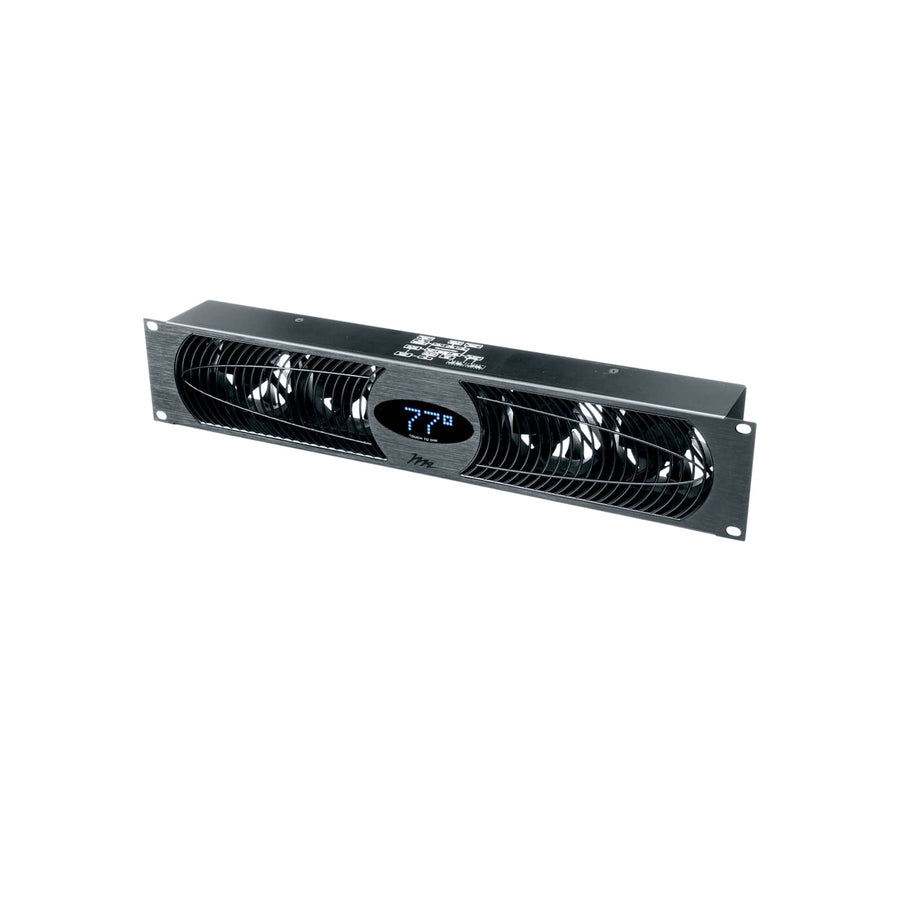

100 CFM Fan Panel with Display, 27dB, Anodized, 220 - 240VAC
2 RU active cooling panel with 100 CFM airflow, 27dB acoustic rating, and integrated dimmable temperature display
The Middle Atlantic IUQFP-4DRA is a 2 RU ultra quiet fan panel designed for active thermal management in professional equipment racks. This component provides 100 CFM of cooling with an acoustic rating of 27dB. The unit features a built-in digital display that provides dimmable temperature and status alerts, allowing for immediate system monitoring. An on-board digital processor manages fan speeds using intelligent, thermostatic proportional control, which reacts to temperature data monitored via an external sensor. To ensure system integrity, the IUQFP-4DRA provides both local and remote notifications for over-temperature events, fan faults, or external sensor failures. This specific model is designed for 220-240VAC input and features a black brushed and anodized finish. It is part of the UQFP Series, which is optimized to improve airflow in high-density rack environments through a new intake and exhaust two-panel system design.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 100 |
| Depth | 2.96 in (7.5 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Available Internationally | Yes |
| Component Type | Active |
| Display | Yes |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747095801 |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
Will the IUQFP-4DRA work with my 120V rack power system?
No, this specific SKU is designed for 220-240VAC input. It features a DC power type with 5 VDC internal operation.
How does the IUQFP-4DRA communicate system errors?
The panel provides local status via the integrated display and can send remote notifications for over-temperature, fan faults, or external sensor failures to a control system.
What is required to control the fan speed of this panel?
The on-board digital processor requires an external sensor to monitor equipment temperature and drive the intelligent thermostatic proportional control.
What is the difference between this and other UQFP series panels?
This model features an integrated dimmable temperature display for local monitoring, whereas other variants in the UQFP series are available without a front display.
Which technical drawings are available for submittals?
Detailed CAD technical specification drawings (dwg) and 3D CAD drawings (dwg) are available for system design and integration planning.
