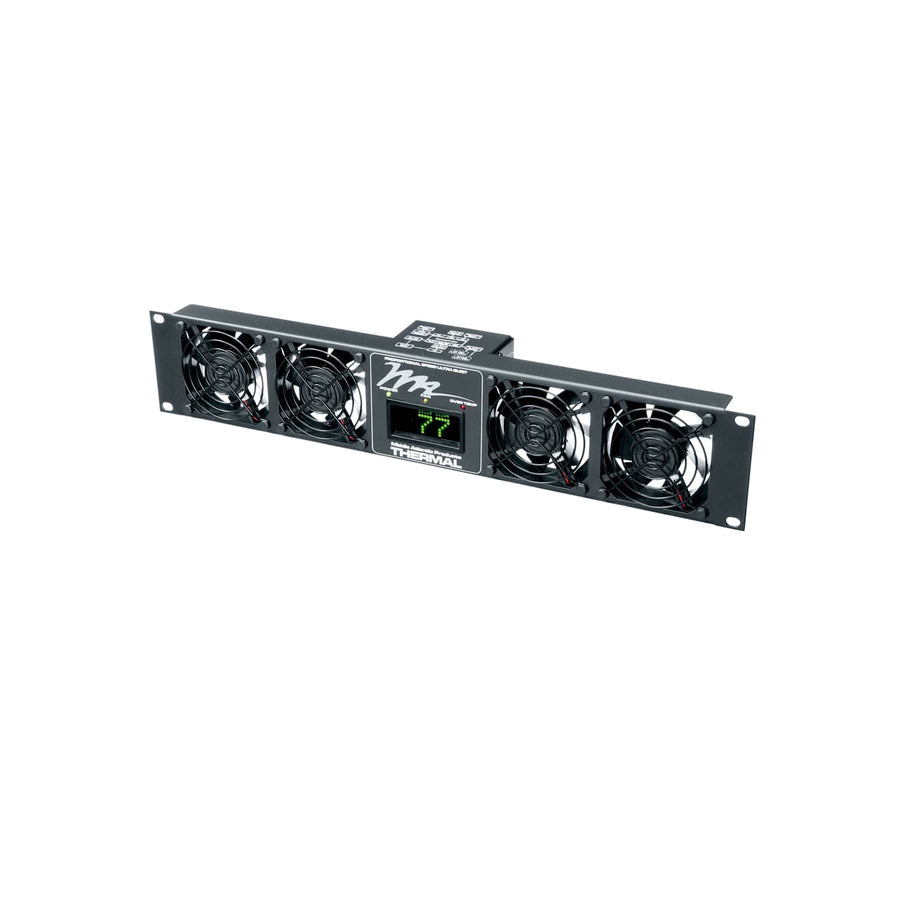

100 CFM Fan Panel with Display, 27dB, 220 - 240VAC
2RU active cooling panel delivering 100 CFM at 27 dB, featuring a digital temperature display and remote fault notification.
The Middle Atlantic IUQFP-4D is a 2RU ultra quiet fan panel designed for noise-sensitive environments such as boardrooms, classrooms, and offices. This active cooling component utilizes an on-board digital processor to monitor rack temperature via an external sensor. Based on this real-time data, the processor provides intelligent thermostatic proportional control, varying the fan speed to maintain optimal enclosure temperatures while ensuring operation remains ultra quiet at 27 dB. This unit includes an integrated front panel display that provides an instant status readout of the rack temperature. For advanced system monitoring, the IUQFP-4D provides both local and remote notification for over-temperature events and fan failures. The fan fault alert can be sent to a control system via a remote signal or viewed on the local display. This specific model is rated for 220-240VAC input voltage and features a brushed and anodized finish. The IUQFP-4D is available internationally and is CE certified for use in global installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 100 |
| Depth | 3.4 in (8.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 5 lbs (2.3 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 9
| Available Internationally | Yes |
| Component Type | Active |
| Display | Yes |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747098291 |
Resources
Questions about this part
Will this fan panel work in a 220V environment?
Yes, the IUQFP-4D is designed for 220-240VAC input voltage and is available for international use.
How does the IUQFP-4D notify me if a fan fails?
The system provides local notification via the integrated front panel display and can send a remote signal to an external alarm or control system in the event of a fan fault.
How is the fan speed controlled in this unit?
An on-board digital processor monitors temperature via an external sensor and uses thermostatic proportional control to vary fan speed, maintaining a 27 dB noise level.
Can I monitor the rack temperature remotely?
Yes, the IUQFP-4D supports remote over-temperature notification that can be sent to a central control system.
Which documentation is best for a submittal?
You can use the UQFP Series Ultra Quiet Fan Panels A&E Specification Sheet or the CAD Technical Specification Drawings for detailed submittals.
