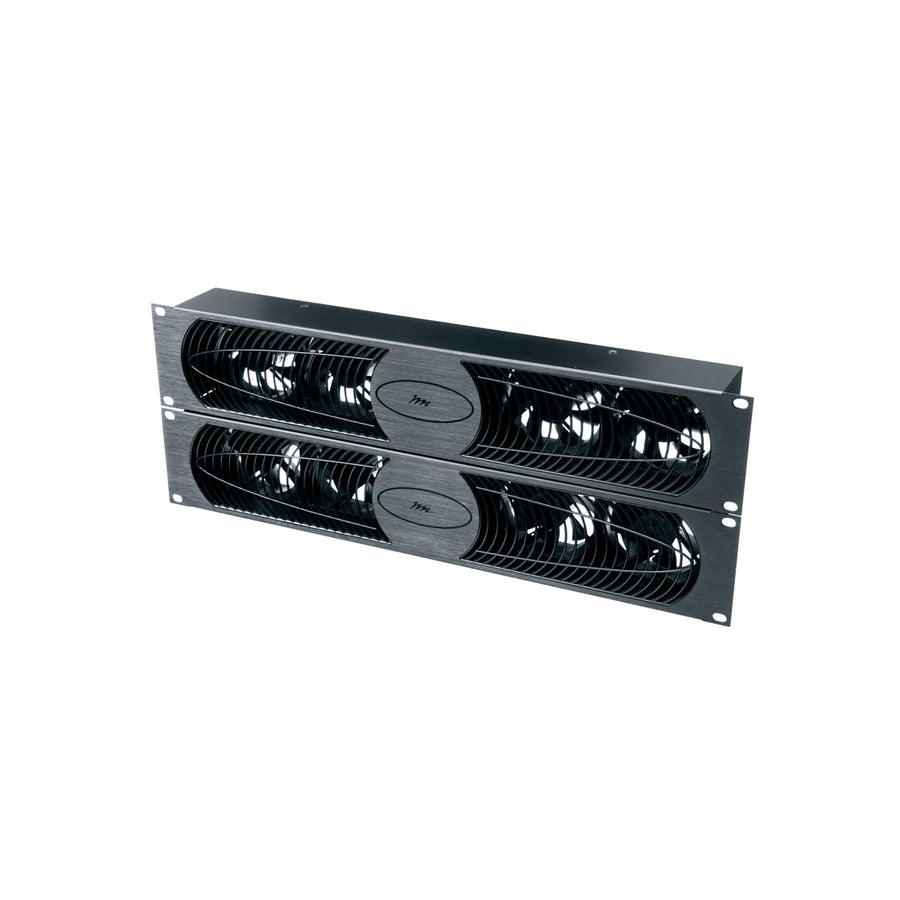

100 CFM Fan Panel, 30dB, Anodized, Intake/Exhaust
2 RU intake and exhaust fan panel system delivering 100 CFM with intelligent thermostatic proportional control
The UQFP-4RA-I/O is a 2 RU active thermal management solution designed to improve airflow within densely populated equipment racks. This I/O configuration utilizes one intake unit and one linked exhaust unit to create a coordinated two-panel system. It features an on-board digital processor that manages fan speed through intelligent thermostatic proportional control, adjusting performance based on equipment temperature monitored via an external sensor. This system provides local and remote notification for fan faults, over-temperature conditions, or external sensor failures, allowing for integration with a control system. The panel operates with a 120V AC input voltage and features a brushed and anodized black finish. Designed for professional rack environments, the unit occupies 3.5 in (8.9 cm) of vertical space and provides 100 CFM of airflow at 27 dB for effective cooling.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 100 |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 9.3 lbs (4.2 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
| Available Internationally | No |
All other specifications 9
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747123399 |
| Patents | www.legrandav.com/patents |
Questions about this part
How does the UQFP-4RA-I/O manage fan speeds?
The unit uses an on-board digital processor to provide intelligent thermostatic proportional control, varying the fan speed according to the temperature of equipment monitored via an external sensor.
What kind of notifications can be sent from this fan panel?
The system provides local and remote notifications for over-temperature conditions, fan faults, and external sensor failures, which can be sent to a control system.
Does the UQFP-4RA-I/O include a display for system status?
This specific I/O configuration is designed for performance; other models in the UQFP series include a dimmable temperature and alert display for instant status updates.
What are the mounting requirements for this 2 RU panel?
This is a 2 RU component that mounts into a standard 19 in (48.3 cm) wide rack and utilizes 2 mounting points for installation.
What is the airflow capacity of this cooling system?
The cooling panel is rated to provide 100 CFM of airflow at 27 dB.
