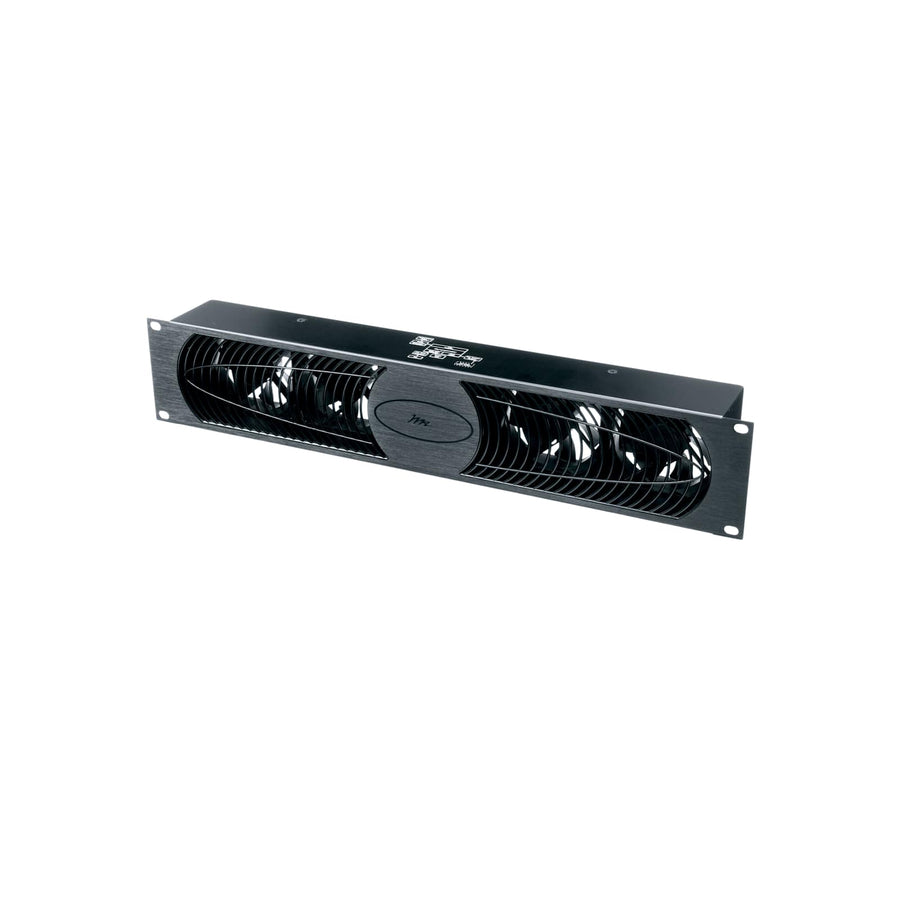

100 CFM Fan Panel, 27dB, Anodized, 220 - 240VAC
2RU active fan panel delivering 100 CFM of cooling at 27dB for 220-240VAC international power applications
The IUQFP-4RA is a 2RU active thermal management solution from the UQFP Ultra Quiet Fan Panel series, specifically designed for 220-240VAC power environments. This unit provides 100 CFM of airflow at a noise level of 27dB, making it suitable for sensitive environments where acoustics are a priority. It utilizes an on-board digital processor to provide intelligent thermostatic proportional control, varying fan speed based on equipment temperature monitored via an external sensor. This intelligent system can provide local and remote notification to a control system in the event of an over-temperature condition, a fan fault, or an external sensor failure. The panel features a black brushed and anodized finish for a professional aesthetic. This specific IUQFP-4RA model is designed for international use and relies on a 5 VDC power type for its internal components while utilizing a 220-240VAC input voltage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 100 |
| Depth | 2.96 in (7.5 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Available Internationally | Yes |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747104435 |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
Will this fan panel work with my 120V power system?
No, this specific IUQFP-4RA model is rated for 220-240VAC input voltage and is intended for international use.
How does the fan control temperature inside my rack?
The unit uses an on-board digital processor to provide thermostatic proportional control. It varies the fan speed based on temperature readings from an external sensor.
Can the fan panel integrate with my existing control system?
Yes, the panel can send local and remote notifications of fan faults or over-temperature events directly to a control system.
What happens if the external temperature sensor fails?
The system is designed to provide both local and remote notification if an external sensor failure occurs.
Which technical drawings are available for submittals?
You can download CAD technical specification drawings in DWG format and 3D CAD drawings to assist with system integration and submittals.
