1 RU Utility Rackshelf, 10.4 Inches Deep, Vented - 4 Piece
Vented 1 RU utility rackshelf in a 4-piece nested pack, featuring a 35 lbs capacity and 10.41" usable depth

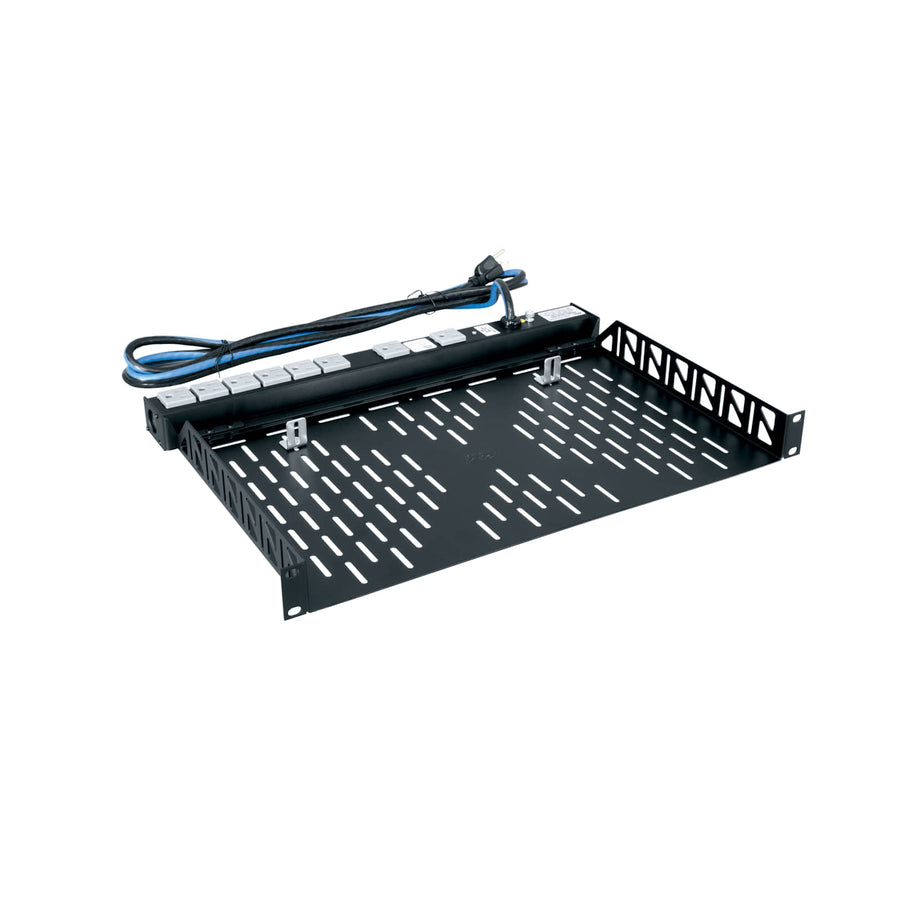

The Middle Atlantic U1V-4 is a 1 RU vented utility rackshelf designed for reliable component mounting within a standard rack. This 4-piece nested pack provides a space-saving solution for installers needing multiple shallow shelves. Each shelf features a welded steel construction with a black powder coat finish and includes three rear brackets to prevent equipment from sliding backward. For improved thermal management, the shelves are fully vented on the bottom and sides to facilitate heat dissipation. These 19-inch wide shelves offer a usable depth of 10.41" (26.4 cm) and a total depth of 10.78" (27.4 cm). To secure components more firmly, you can utilize the optional Rackshelf Clamp Kit (SKU: C). For power distribution, this unit is compatible with the PD-815SC-PBSH 8-outlet, 15A surge protection power strip.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10.78 in (27.4 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 4 |
| Rack Units | 1 RU |
| Shipping Weight | 16.85 lbs (7.6 kg) |
| Usable Depth | 10.41 in (26.4 cm) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 19 in (48.3 cm) |
All other specifications 6
| Federal Ops Country of Origin | Mexico |
| Mounting Points | 2 |
| TAA Compliant | Yes |
| UPC | 656747188091 |
| Vented | Yes |
| Certifications | TAA |
Resources
You'll need these with it
VTR/CPU Heavy-Duty Sliding Shelf Cover Panel for SS4-23VTR
SS-VTR-CVR4$86.40
VTR/CPU Heavy-Duty Sliding Shelf Cover Panel for SS5-23VTR
SS-VTR-CVR5$90.90
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
What is the usable depth of the U1V-4 rackshelf?
The usable depth for components is 10.41" (26.4 cm), while the total shelf depth is 10.78" (27.4 cm).
Can I secure components to these shelves?
Yes, you can use the optional Rackshelf Clamp Kit (SKU: C) to help secure your equipment in place.
Does this rack shelf support power distribution?
The U1V-4 is compatible with the PD-815SC-PBSH 8-outlet, 15A basic surge protection power strip.
How many shelves are included in one order of U1V-4?
This SKU is sold as a nested pack containing 4 pieces.
Is this product TAA compliant?
Yes, the U1V-4 is TAA compliant and is manufactured in Mexico.
