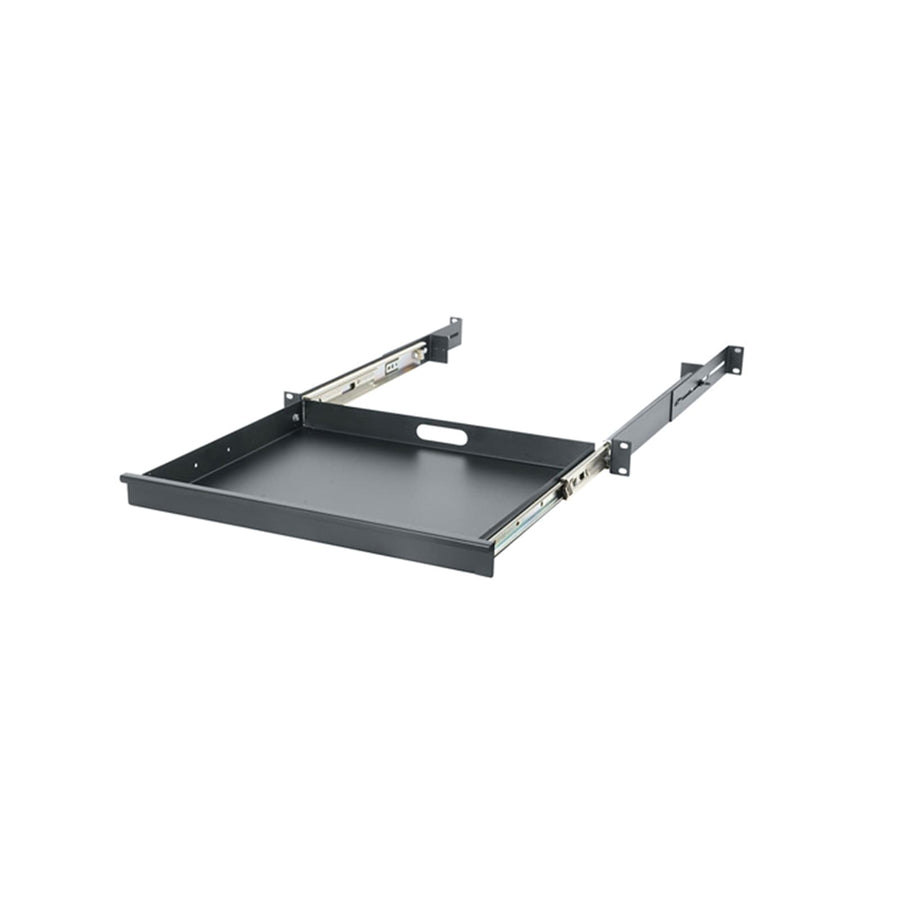

1 RU Utility Rack Drawer
1 RU rackmount utility drawer with full extension ball bearing slides and a 50 lbs weight capacity
The Middle Atlantic UD1 is a 1 RU utility rack drawer designed to provide an economical storage solution for rack-mounted equipment. This steel construction drawer features a black powder coat finish and arrives fully assembled for immediate installation. It utilizes full extension ball bearing slides that extend 14 in to allow access to the interior, which measures 15-7/8 in wide by 14-1/2 in deep. The unit can also be flipped over to serve as a writing surface for technicians on site. For installation planning, the drawer requires a mounting depth between 15.5 in and 20.5 in (52.1 in). This TAA compliant component is UL listed and carries a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 20.5 in (52.1 cm) |
| Mounting Depth Min | 15.5 in |
| Rack Units | 1 RU |
| Shipping Weight | 11.4 lbs (5.2 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 4 |
| UPC | 656747112041 |
| Certifications | UL Listed |
Resources
Questions about this part
Will the UD1 fit in my rack?
This 1 RU drawer requires a mounting depth between 15.5 in and 20.5 in (52.1 cm) to accommodate the installation.
How much weight can the UD1 drawer hold?
The UD1 is UL listed with a weight capacity of 50 lbs (22.7 kg).
What are the internal dimensions of the drawer?
When fully extended via the ball bearing slides, the interior measures 15-7/8 in wide by 14-1/2 in deep.
Does this drawer come pre-assembled?
Yes, the UD1 ships fully assembled and is ready for immediate installation in your rack.
Are there other sizes available in the UD series?
The UD series includes other rack unit options, including 2 RU, 3 RU, and 4 RU versions.
