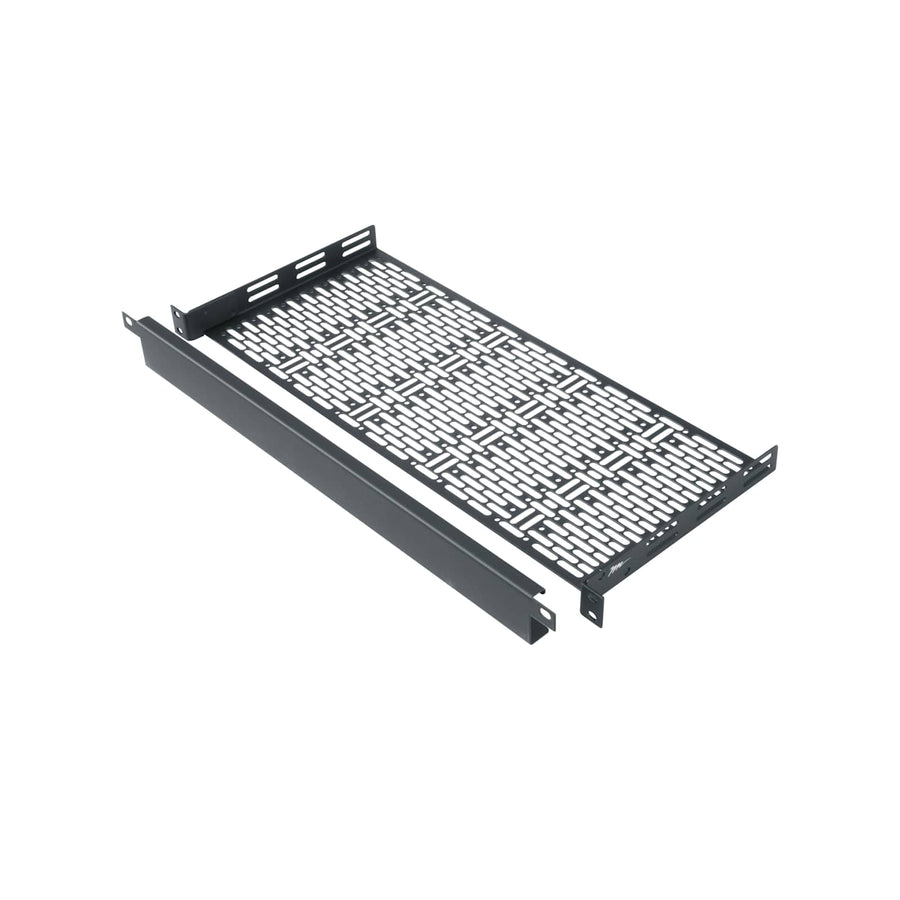

1 RU UFA Rackshelf, 8 Inches Deep with 1 RU Faceplate
1 RU UFA mounting shelf with 8 inch usable depth, steel construction, and an included 1 RU faceplate
The Middle Atlantic UFA-8-F1 is a 1 RU UFA Small Device Mounting Shelf designed to house small hardware conveniently within a rack. This steel shelf features a 8 in (20.3 cm) usable depth and a 1.75 in (4.4 cm) usable height, providing a secure location for compact equipment in either the front or rear of a rack. A key feature of the Universal Face-After design is the ability to mount a covering faceplate after the shelf has been installed and populated, ensuring a clean and secure finish. This specific SKU includes a 1 RU faceplate to provide immediate coverage. For installation, this shelf requires standard 10-32 or 6mm rack screws into the rackrail. The unit is constructed from steel with a black powder coat finish and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 1.07 in (2.7 cm) |
| Package Count | 1 |
| Rack Units | 1 RU |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Usable Depth | 8 in (20.3 cm) |
| Usable Height | 1.75 in (4.4 cm) |
| Weight Capacity | 35 lbs (15.9 kg) |
All other specifications 7
| Width | 19 in (48.3 cm) |
| Component Type | Vertical Inside |
| Finish | Black Powder Coat |
| Material | Steel |
| Mounting Points | 2 |
| Style | Faceplate Included |
| UPC | 656747140549 |
Resources
You'll need these with it
2 RU Anodized UFA Faceplate
UFAF-2A$40.50
2 RU Powder Coated UFA Faceplate
UFAF-2$23.40
1 RU Anodized UFA Faceplate
UFAF-1A$36.00
4 RU Anodized UFA Faceplate
UFAF-4A$59.40
4 RU Powder Coated UFA Faceplate
UFAF-4$36.90
3 RU Anodized UFA Faceplate
UFAF-3A$47.70
3 RU Powder Coated UFA Faceplate
UFAF-3$30.60
Questions about this part
What faceplates are compatible with the UFA-8-F1?
This shelf includes a 1 RU faceplate, but you can also use UFAF-1A (anodized) or UFAF-1 (powder coated) for the 1 RU space.
What is required for mounting this shelf into a rack?
Installation requires standard 10-32 or 6mm rack screws to secure the two mounting points into the rackrail.
Can I use this shelf in the rear of the rack?
Yes, the Universal Face-After design allows the shelf to be mounted in either the front or the rear of the rack.
What is the maximum weight capacity for this 1 RU shelf?
The UFA-8-F1 has a weight capacity of 35 lbs (15.9 kg) across its 8 in (20.3 cm) usable depth.
Is this product TAA compliant?
Yes, the UFA-8-F1 is TAA compliant and carries PEP certification.
