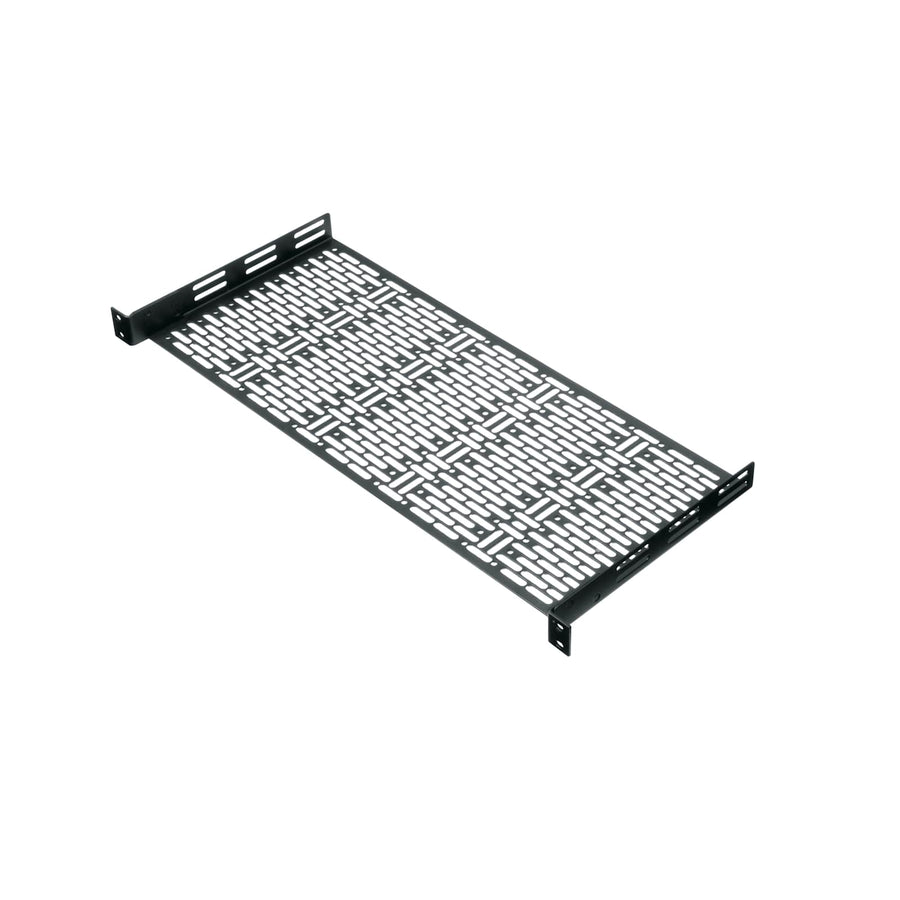

1 RU UFA Rackshelf, 8 Inches Deep - 4 Piece
1 RU rackshelf with 8 in (20.3 cm) usable depth, designed for mounting small devices and faceplates in front or rear of a rack
The UFA-8-4 is a 4-piece pack of Middle Atlantic 1 RU UFA Rackshelfs designed for mounting small hardware in the front or rear of a rack. These shelves feature a unique 'Universal Face-After' design, which allows installers to mount a covering faceplate after the shelf has been installed and the equipment has been populated. This provides a secure and professional way to hide cabling while offering integrated tie-down points for small devices. Each 1 RU steel shelf is 19 in (48.3 cm) wide with an 8 in (20.3 cm) usable depth and a 1.75 in (4.4 cm) usable height. These shelves are finished in a black powder coat and are TAA compliant. Installation requires standard 10-32 or 6mm rack screws to secure the two mounting points into the rackrail.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 1.1 in (2.8 cm) |
| Package Count | 4 |
| Rack Units | 1 RU |
| Shipping Weight | 6.3 lbs (2.9 kg) |
| Usable Depth | 8 in (20.3 cm) |
| Usable Height | 1.75 in (4.4 cm) |
| Weight Capacity | 35 lbs (15.9 kg) |
All other specifications 5
| Width | 19 in (48.3 cm) |
| Component Type | Vertical Inside |
| Mounting Points | 2 |
| Style | Rackshelf |
| UPC | 656747140501 |
Resources
You'll need these with it

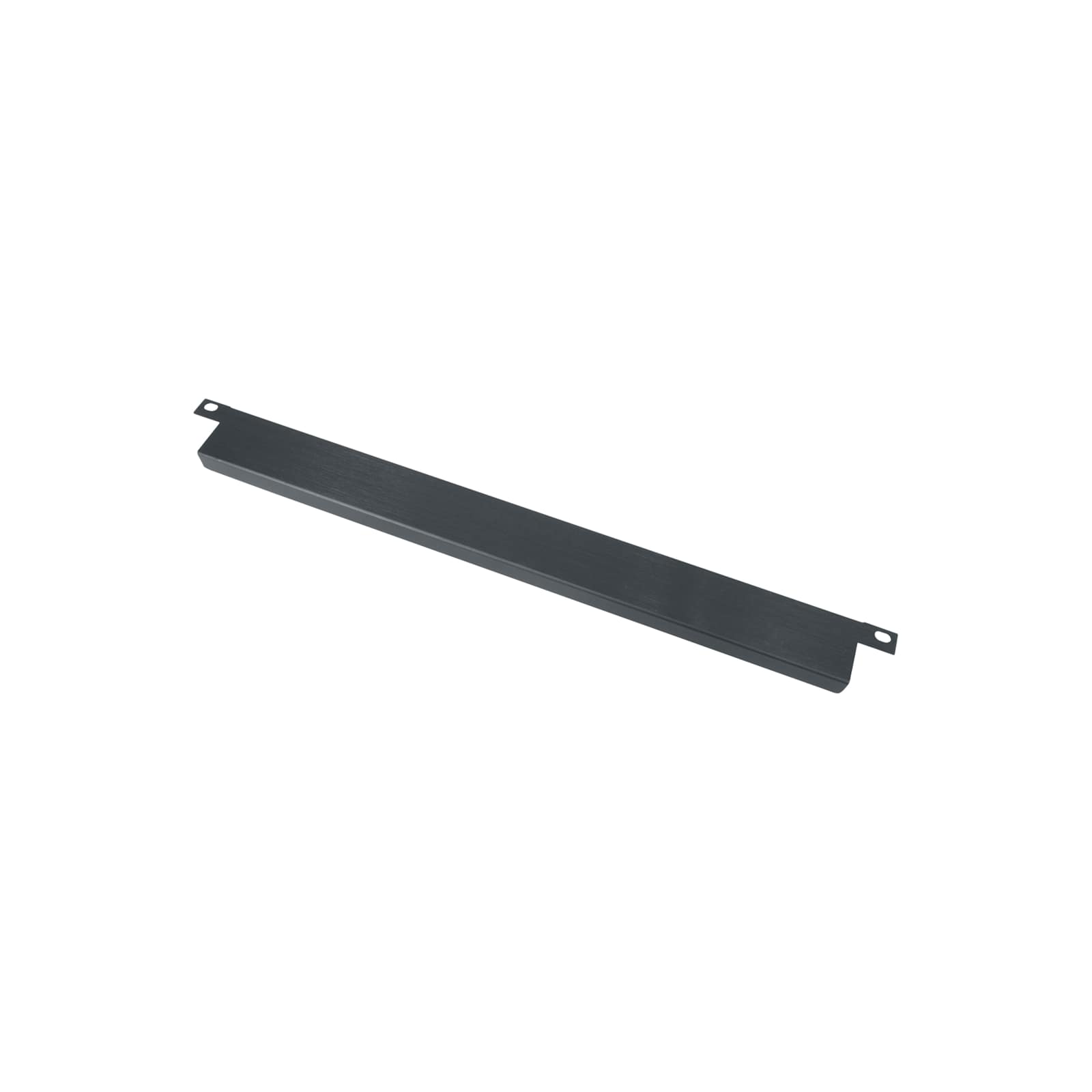

2 RU Anodized UFA Faceplate
UFAF-2A$40.50

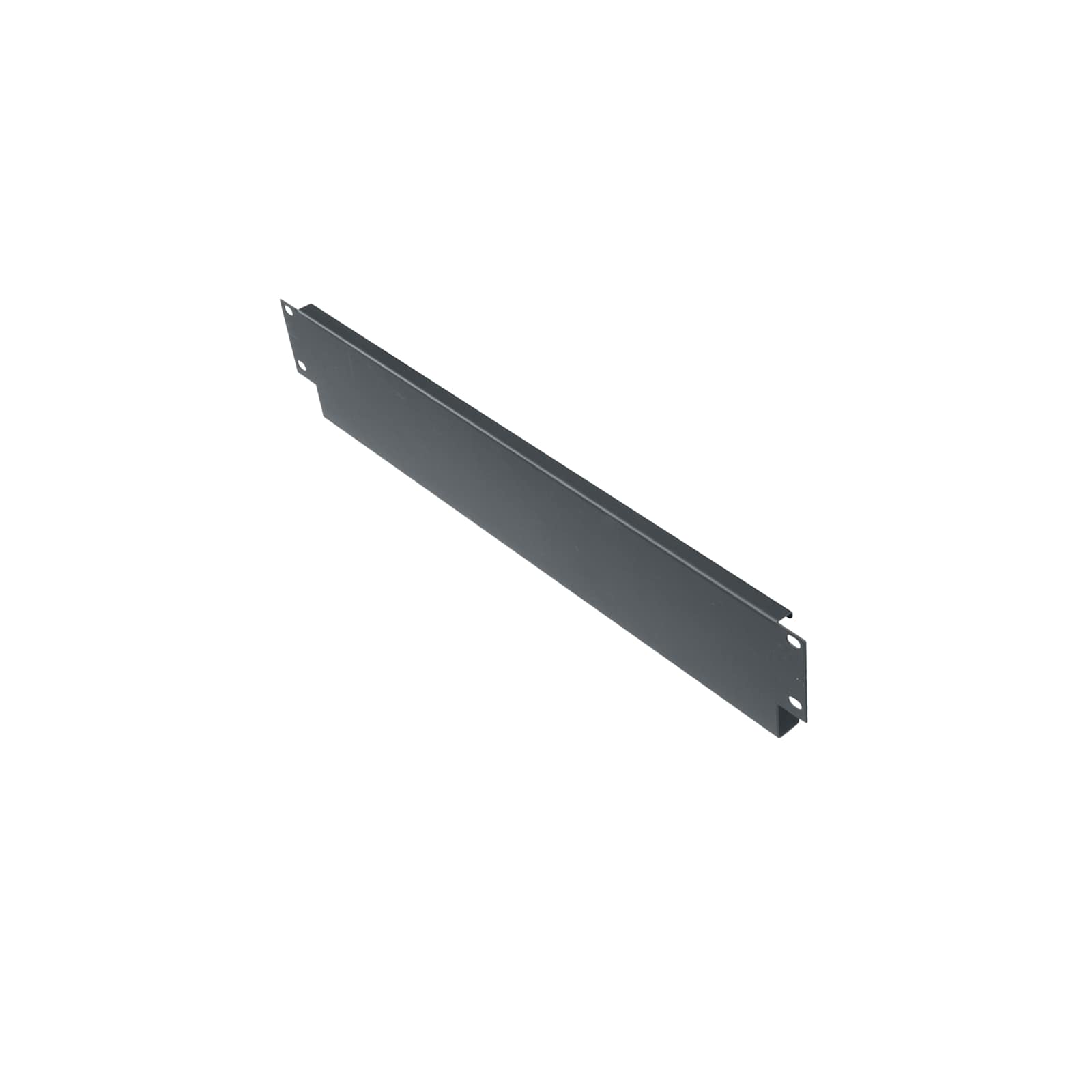

2 RU Powder Coated UFA Faceplate
UFAF-2$23.40
1 RU Anodized UFA Faceplate
UFAF-1A$36.00
1 RU Powder Coated UFA Faceplate
UFAF-1$19.80
4 RU Anodized UFA Faceplate
UFAF-4A$59.40
4 RU Powder Coated UFA Faceplate
UFAF-4$36.90
3 RU Anodized UFA Faceplate
UFAF-3A$47.70

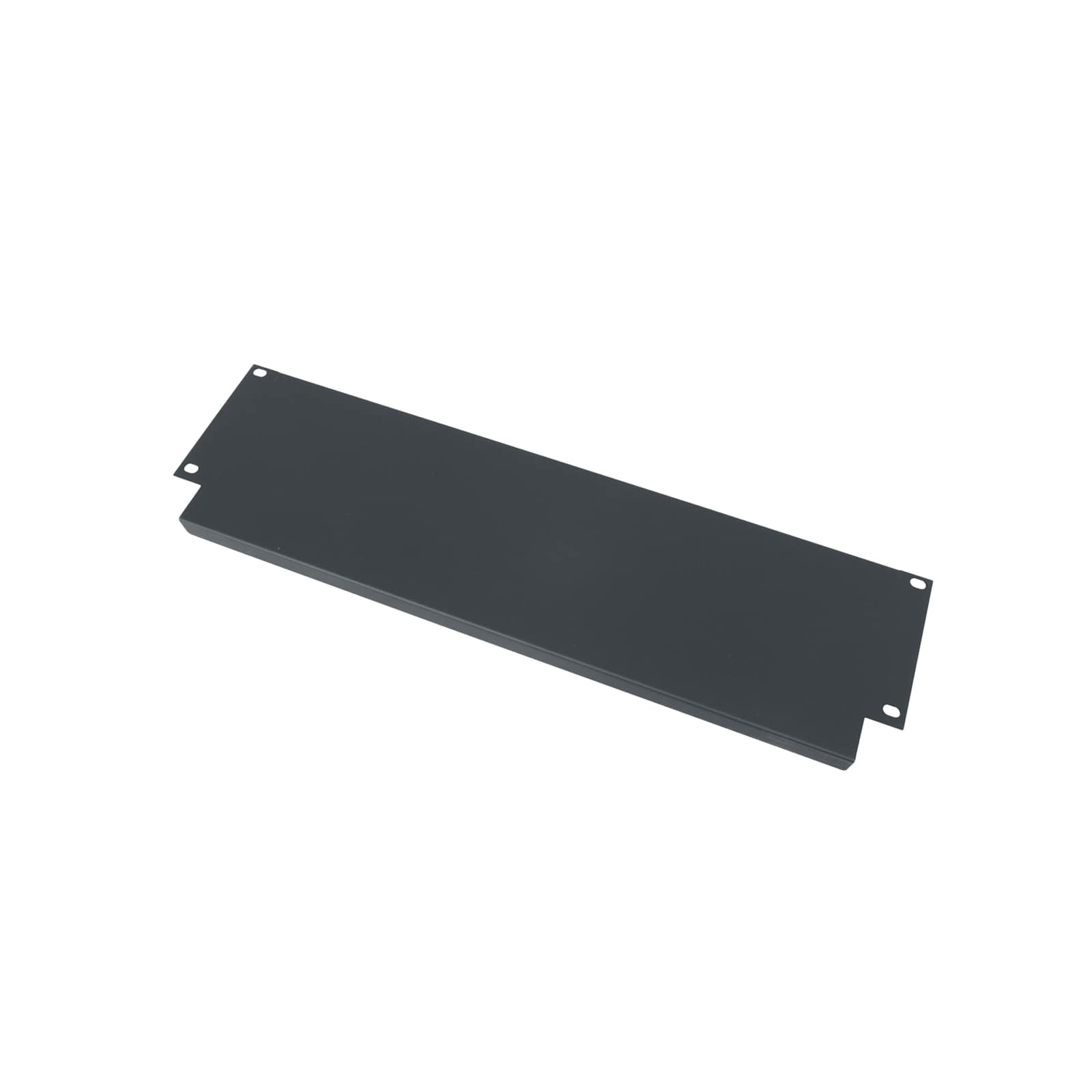

3 RU Powder Coated UFA Faceplate
UFAF-3$30.60
Questions about this part
Will this shelf work with UFA faceplates?
Yes, these shelves are designed to accept UFA faceplates, such as the UFAF-1 or UFAF-2, after the device is installed.
What is required to install the UFA-8-4 in a rack?
You will need standard 10-32 or 6mm rack screws to secure the two mounting points into your rackrails.
Can these be used in the rear of a rack?
Yes, the Universal Face-After design allows these shelves to be mounted in either the front or the rear of a rack.
How many shelves are included in this SKU?
This SKU is a package containing 4 individual 1 RU shelves.
What is the weight limit for a single UFA-8-4 shelf?
Each individual shelf has a weight capacity of 35 lbs (15.9 kg).
