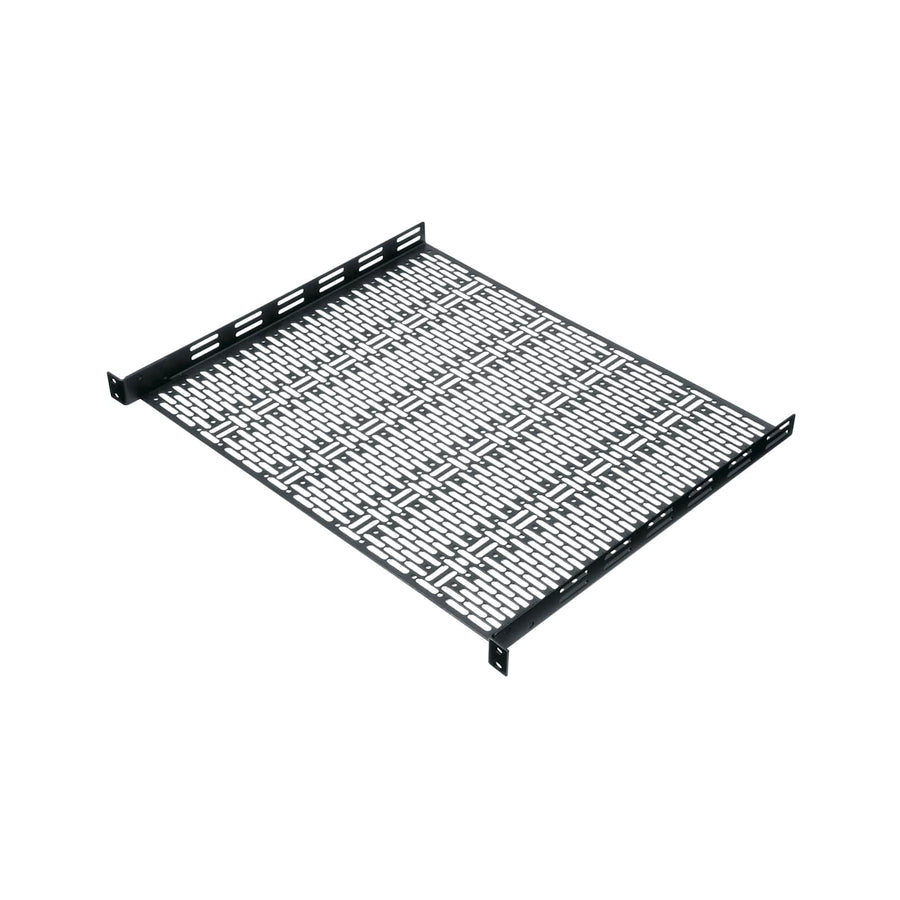

1 RU UFA Rackshelf, 14.5 Inches Deep
1 RU Rackshelf with 14.5" usable depth, 25 lbs capacity, and Face-After design for secure small device mounting
The UFA-14.5 is a 1 RU Rackshelf from the Middle Atlantic UFA Small Device Mounting Shelf series, designed to hold small hardware in either the front or rear of a rack. This shelf features a unique Face-After design, which allows an installer to mount a covering faceplate after the shelf has been installed and the device has been populated. This capability provides a clean, professional appearance while ensuring hardware remains secure. Constructed from steel with a black powder coat finish, the UFA-14.5 offers 14.5 in (36.8 cm) of usable depth and a 25 lbs (11.3 kg) weight capacity. This component type is intended for vertical inside mounting and requires standard 10-32 or 6mm rack screws for installation into the rackrail.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 14.5 in (36.8 cm) |
| Height | 1.07 in (2.7 cm) |
| Package Count | 1 |
| Rack Units | 1 RU |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Usable Depth | 14.5 in (36.8 cm) |
| Usable Height | 1.75 in (4.4 cm) |
| Weight Capacity | 25 lbs (11.3 kg) |
All other specifications 6
| Width | 19 in (48.3 cm) |
| Color | Black |
| Component Type | Vertical Inside |
| Mounting Points | 2 |
| Style | Rackshelf |
| UPC | 656747140518 |
Resources
You'll need these with it
2 RU Anodized UFA Faceplate
UFAF-2A$40.50
2 RU Powder Coated UFA Faceplate
UFAF-2$23.40
1 RU Anodized UFA Faceplate
UFAF-1A$36.00
1 RU Powder Coated UFA Faceplate
UFAF-1$19.80
4 RU Anodized UFA Faceplate
UFAF-4A$59.40
4 RU Powder Coated UFA Faceplate
UFAF-4$36.90
3 RU Anodized UFA Faceplate
UFAF-3A$47.70
3 RU Powder Coated UFA Faceplate
UFAF-3$30.60
Questions about this part
Will the UFA-14.5 fit my small device in a front-mounted rack?
Yes, the UFA-14.5 is designed to mount small items conveniently in either the front or rear of a rack, providing cable management and tie-down points.
What faceplates are compatible with the UFA-14.5?
You can install compatible UFA faceplates including the UFAF-1, UFAF-1A, UFAF-2, UFAF-2A, UFAF-3, UFAF-3A, UFAF-4, and UFAF-4A.
How do I install this shelf into my rack?
This shelf must be installed using standard 10-32 or 6mm rack screws into the rackrail to ensure a secure fit.
What is the weight limit for this 1 RU shelf?
The UFA-14.5 has a weight capacity of 25 lbs (11.3 kg) for mounted devices.
What is the difference between this and other UFA shelves?
The UFA-14.5 specifically provides a 14.5 in (36.8 cm) usable depth; other models in the series offer different length options.
