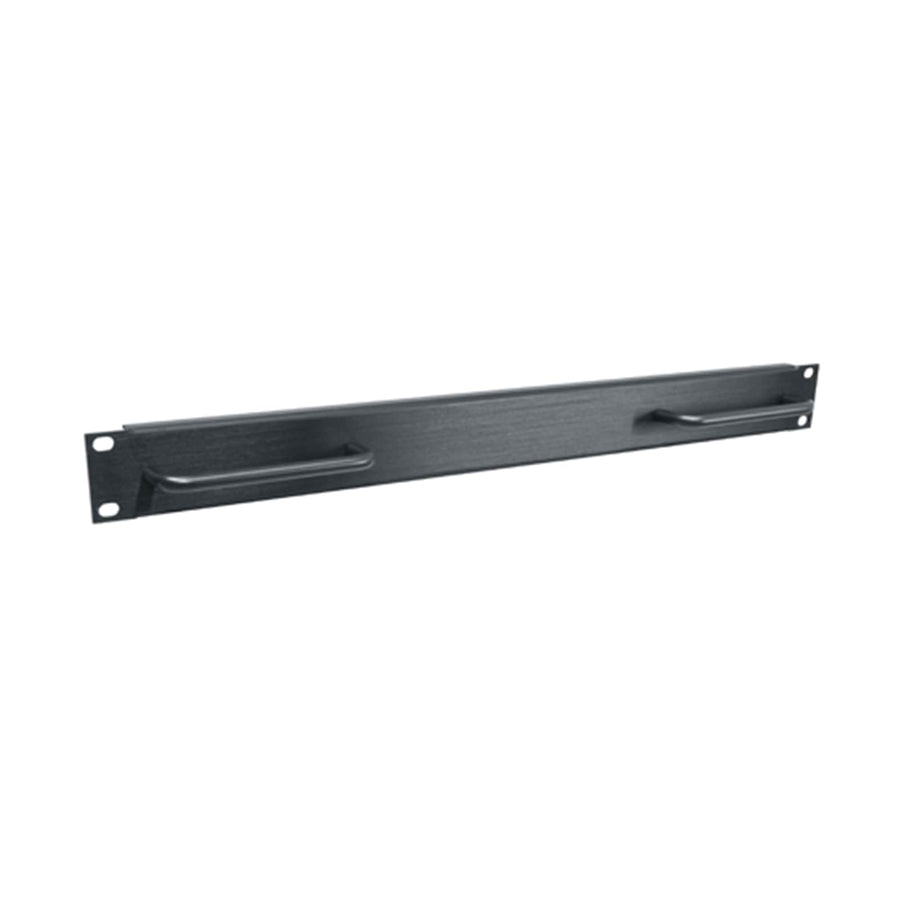

1 RU Flanged Blank Rack Panel with Handles, Black Brushed and Anodized Aluminum
1 RU flanged blank panel with two handles, finished in black brushed and anodized aluminum
The Middle Atlantic BL1-H provides a secure, firm grip for pulling out rack-mounted equipment, making it a vital component for pull-out rack systems. This 1 RU flanged blank panel is constructed from 16-gauge aluminum and features a black brushed and anodized finish. Designed to occupy minimal vertical space, it protrudes 1-3/16" (30 mm) from the front of the rack. This panel includes two mounted handles to ensure a safe and steady pulling grip during equipment servicing. While it is designed for easy access, it remains compatible with trim strips if your specific installation requires them. For proper installation, you will need rack screws and drive bits to secure the two mounting points into your rack.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.69 in (4.3 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 1 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Width | 19 in (48.3 cm) |
| Finish | Brushed and Anodized |
All other specifications 5
| Handles | Yes |
| Material | Aluminum |
| Mounting Points | 2 |
| Style | Flanged |
| UPC | 656747178337 |
Resources
Questions about this part
Will the BL1-H work in a pull-out rack system?
Yes, the BL1-H includes two mounted handles designed to provide a firm, safe grip for servicing pull-out rack systems.
What do I need to install this blank panel in my rack?
To complete the installation, you will need rack screws and the appropriate rack screw drive bits to secure the panel's mounting points.
How much space will this panel take up in my rack?
This is a 1 RU panel that protrudes 1-3/16" from the rack face, designed to take up minimal space in your installation.
Is there a different finish available for this panel?
Yes, this SKU features a black brushed and anodized aluminum finish, while other versions in this series offer different material and color options.
Where can I find the technical drawings for submittals?
Technical specification drawings are available in dwg format for both the Blank Panels and the Handle Panels series.
