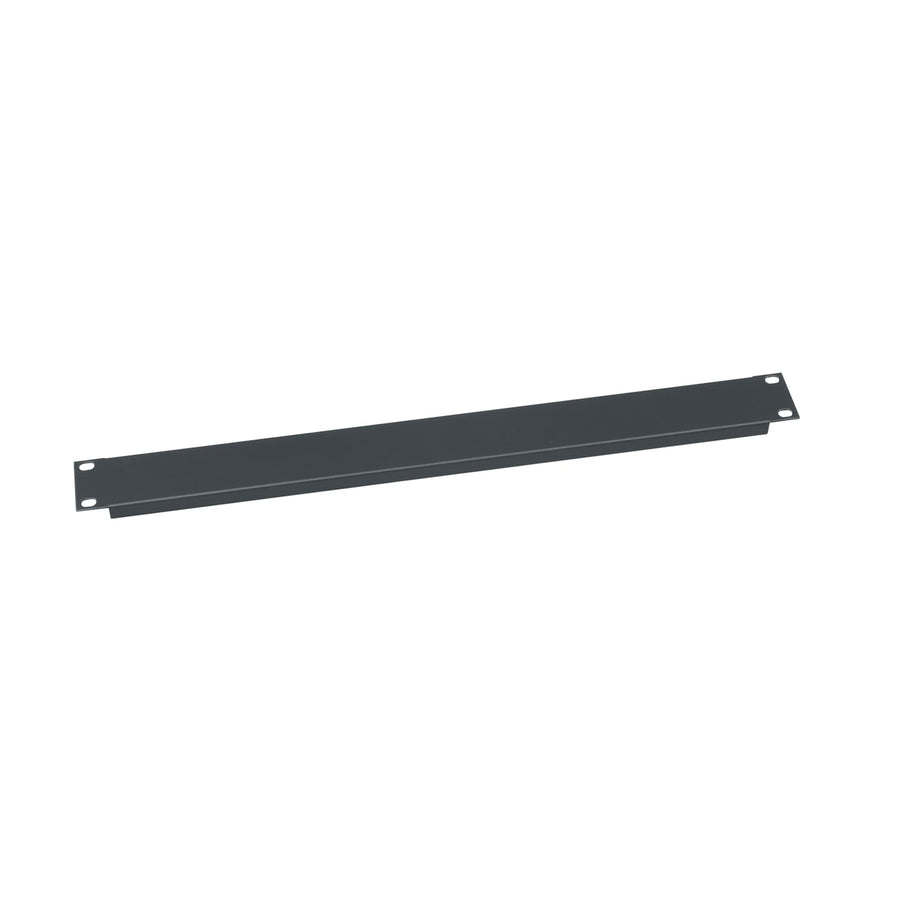

1 RU Flanged Blank Rack Panel, Steel - 50 Piece Shop Pack
1 RU flanged steel blank panels in a 50-piece shop pack with a flat black powder coat finish
The EB1MP is a 50-piece shop pack of 1 RU flanged blank rack panels designed for efficient rack management and aesthetic cable concealment. Each steel panel is finished with a durable flat black powder coat to match standard professional rack equipment. These 1 RU panels feature a 19 in (48.3 cm) width and a 1.75 in (4.4 cm) height, with a 0.52 in (1.3 cm) depth. Designed with two mounting points, these panels allow installers to cover empty spaces in a rack to improve airflow and prevent the accumulation of dust. Because these are sold as a bulk shop pack, they are an economical solution for large-scale system integration projects requiring multiple blanking units.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.52 in (1.3 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 50 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 39 lbs (17.7 kg) |
| Width | 19 in (48.3 cm) |
| Color | Black |
All other specifications 5
| Finish | Flat Powder Coat |
| Material | Steel |
| Mounting Points | 2 |
| Style | Flanged |
| UPC | 656747005893 |
Resources
Questions about this part
What is included in a single shop pack of EB1MP?
Each shop pack contains 50 individual 1 RU flanged steel blank panels.
Do I need to purchase mounting hardware separately?
Yes, you will need to provide rack screws and appropriate rack screw drive bits to complete the installation.
Will these panels fit in a standard 19-inch rack?
Yes, these panels have a 19 in (48.3 cm) width designed to fit standard 19-inch rack configurations.
What is the purpose of using these blank panels in a rack?
These panels cover unused RU spaces to manage airflow and provide a clean, finished appearance in a rack assembly.
Is there a technical drawing available for submittals?
Yes, CAD technical specification drawings are available in dwg format for engineering submittals.
