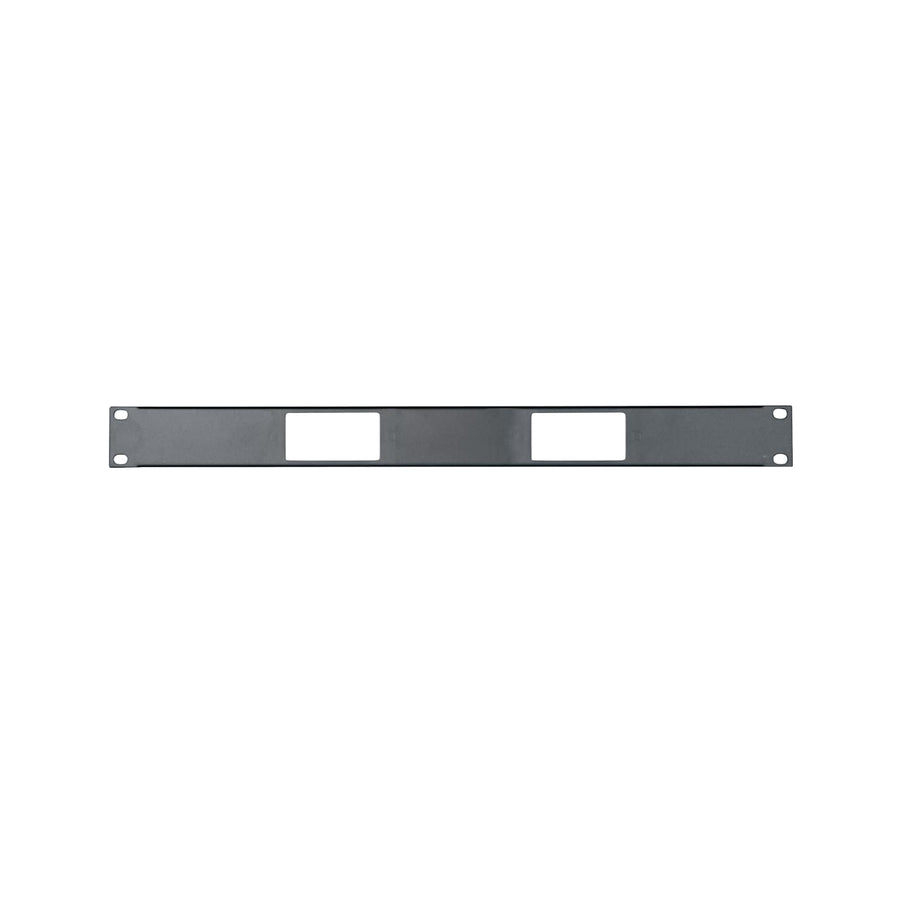

1 RU Decora Device Panel for 2 Devices
1 RU rackmount panel for two low-voltage Decora devices in 19" enclosures
The Middle Atlantic DECP-1X2 allows you to mount any low-voltage Decora device directly onto the rackrail of a standard 19" enclosure. This 1 RU panel features a one-piece flanged steel construction with a black powder coat finish. It provides an open area of 1.62" between the flanges to accommodate hardware installation. This specific model includes two Decora knockouts, making it an efficient solution for holding multiple components in a single rack unit. It is designed to hold up to two devices, such as the RPS Series remote power switches or the TEMP-DEC temperature display, providing a professional interface for equipment housed within your enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.52 in (1.3 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| Number of Decora Knockouts | 2 |
| UPC | 656747075995 |
Resources
You'll need these with it
Questions about this part
Which Decora devices are compatible with the DECP-1X2?
This panel is designed to hold low-voltage Decora devices, including the RPS Series remote power switches and the TEMP-DEC temperature display.
Can I use the DECP-1X2 to mount an RPS remote power switch?

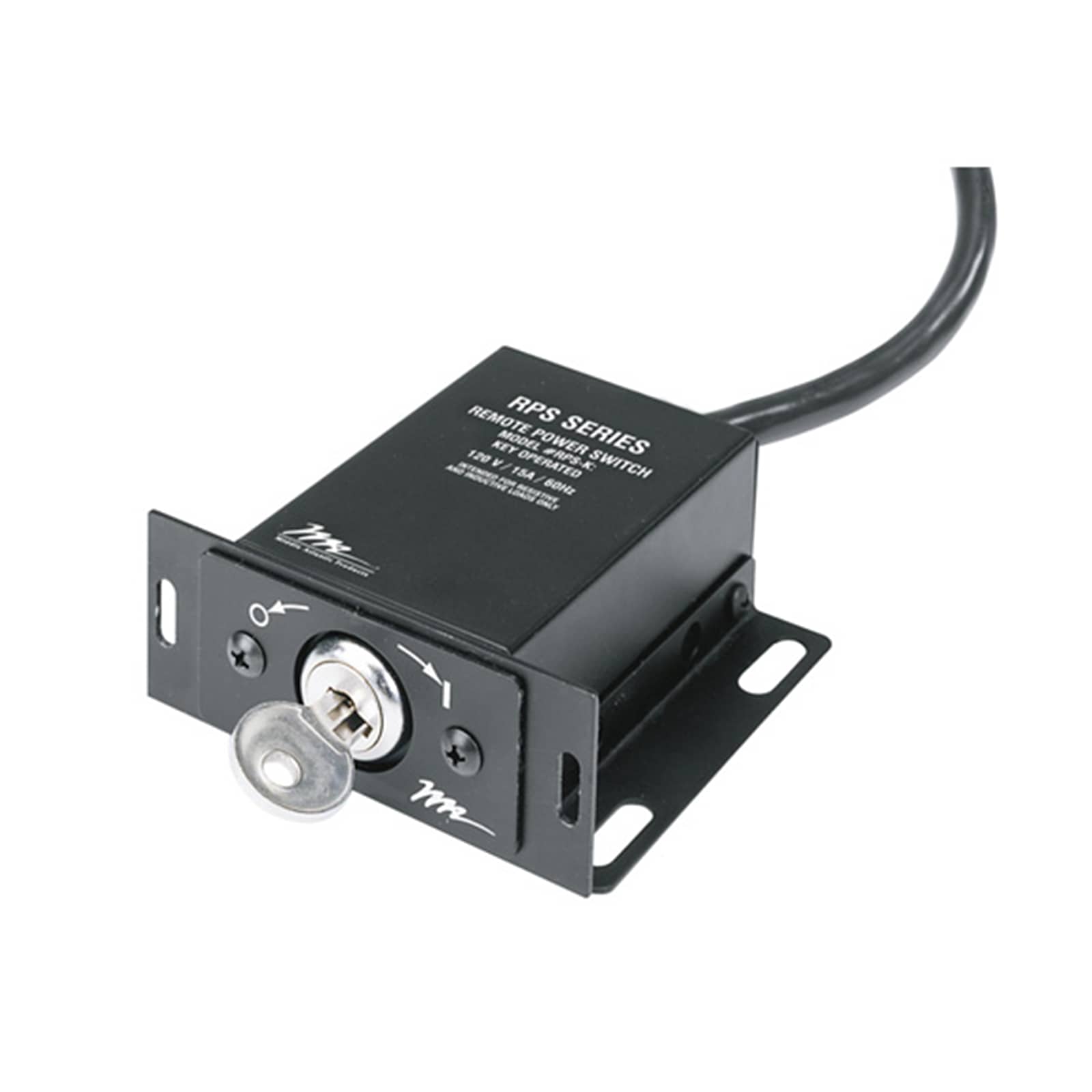

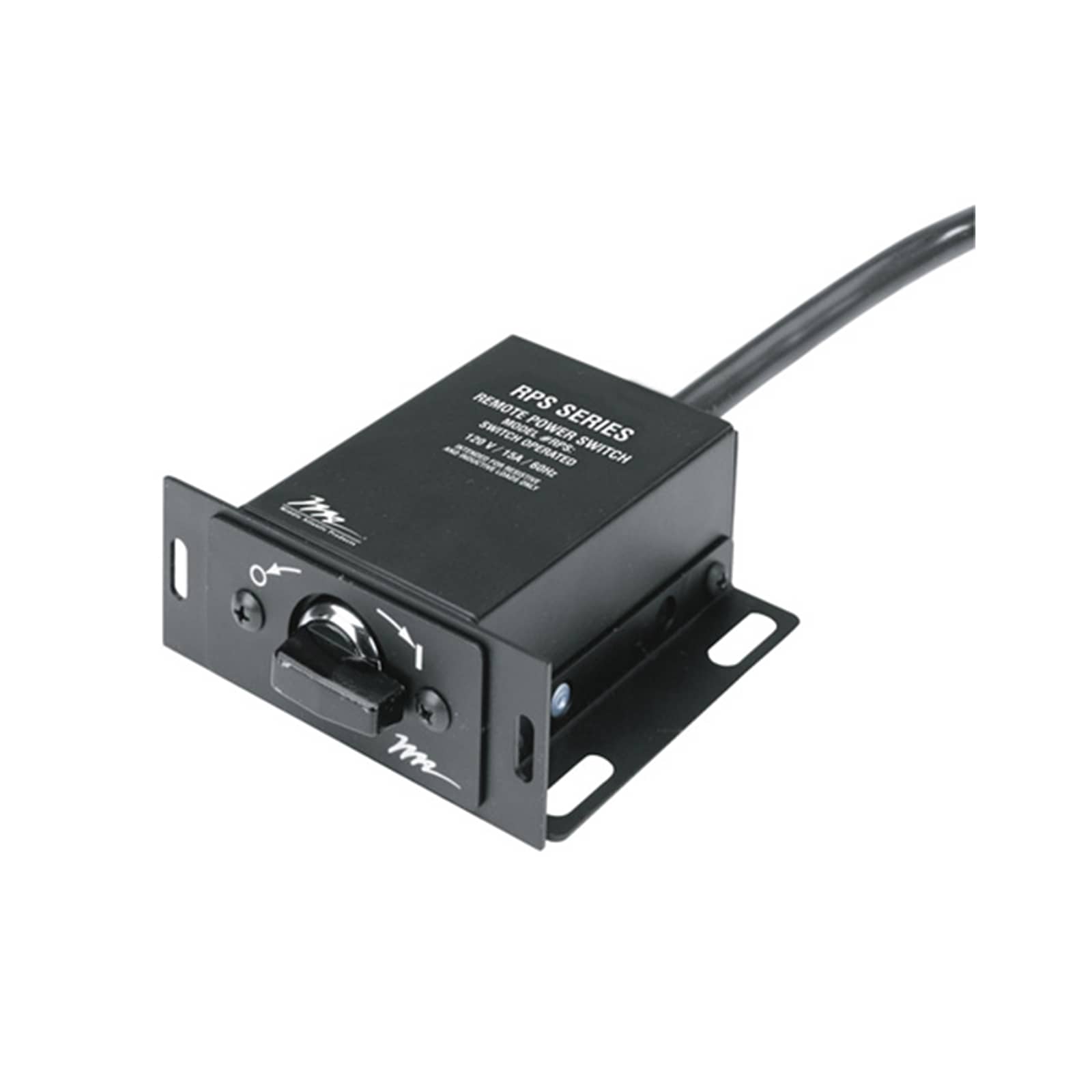

Yes, this panel is ideal for mounting the RPS Series remote power switches, including the RPS or the RPS-K keylocked version.
How many devices can be installed in this single RU panel?
The DECP-1X2 features two Decora knockouts, allowing you to mount a maximum of two devices within the 1 RU space.
What is the physical profile of the DECP-1X2?
This 1 RU panel has a width of 19 in (48.3 cm), a height of 1.75 in (4.4 cm), and a depth of 0.52 in (1.3 cm).
