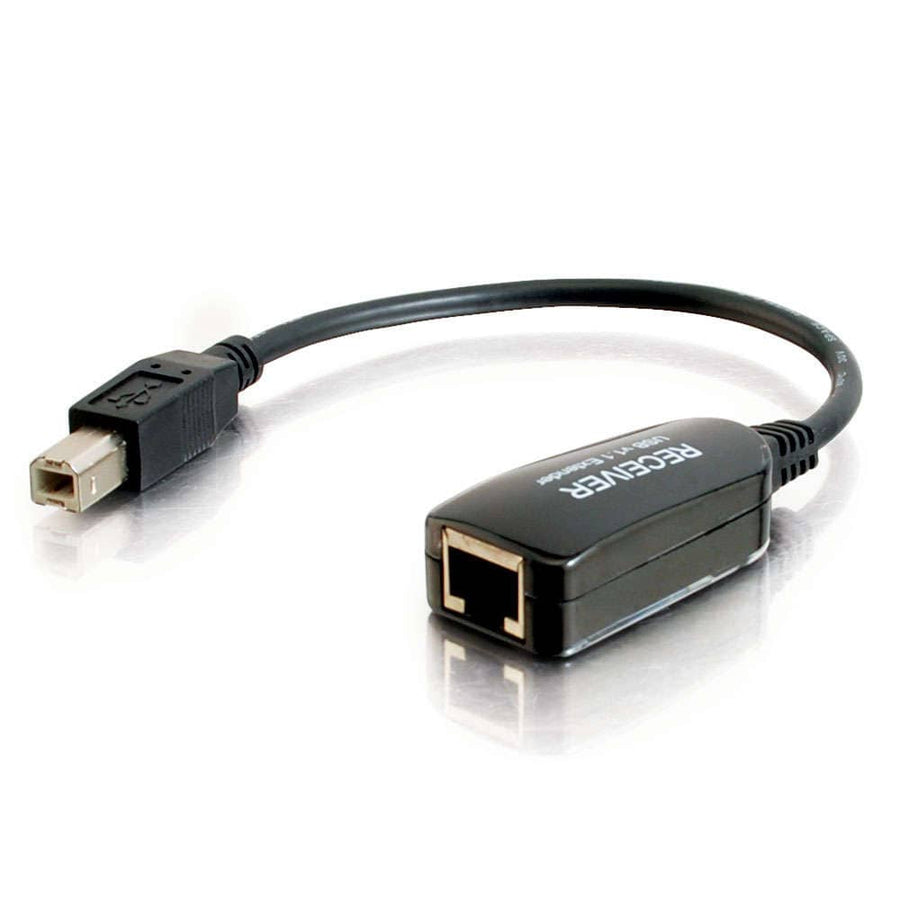

1-Port USB 1.1 Over Cat5 Superbooster™ Extender Dongle RJ45 Female to USB B Male Receiver
USB 1.1 receiver dongle that converts USB-B signals to RJ45 for extension over Cat5/6 cables up to 150ft
The C2G CG29353 is a USB 1.1 Receiver dongle that serves as one component of a complete extension solution. When paired with a compatible transmitter (sold separately), this active device allows you to overcome standard USB cable length limitations by extending the signal to a host computer up to 150ft via category cabling. The receiver features a USB-B Male input and an RJ-45 Female output, allowing for the flexible positioning of peripherals like projectors, cameras, printers, or webcams exactly where they are needed in a workspace. This dongle provides a 12 MBPS data transfer rate and requires no special software or drivers for operation. For installations involving interactive whiteboards, C2G recommends using this specific product line. Note that certain high-draw devices, such as USB hubs or external hard drives, may require external power to operate correctly through the extender.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 0.67 ft (0.2 m) |
| Shipping Weight | 0.08 lbs (0 kg) |
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) USB-B Male(1) USB-B Male |
| Connector 2 | (1) RJ-45 Female(1) RJ-45 Female |
| Product Type | Active DeviceExtenderReceiver |
| Signal Type | USB 1.1 |
All other specifications 6
| TAA Compliant | No |
| Technology Specifications | USB 1.1 |
| UPC | 757120293538 |
| Certifications | FCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 12 MBPS |
| Warranty | 5 years |
Resources
Questions about this part
What do I need to buy to make this a complete solution?
The CG29353 is the receiver only. You must pair it with a compatible transmitter or wall plate, sold separately, to extend the signal.
Will this work with my USB camera or webcam?
Yes, this receiver can extend the signal for USB webcams, projectors, printers, or other USB 1.1 devices up to 150ft over category cable.
Do I need to install drivers on my computer?
No, this is a plug-and-play device that requires no driver installation or special software to function.
Can I use this with a USB hub or external hard drive?
Because these devices have higher power demands, you may need to use external power for these peripherals to operate properly through the extender.
Which document do I need for a technical submittal?
You can refer to the C2G-54284 Datasheet (PDF) for technical details or the specific CG29353 product user guide for installation info.
