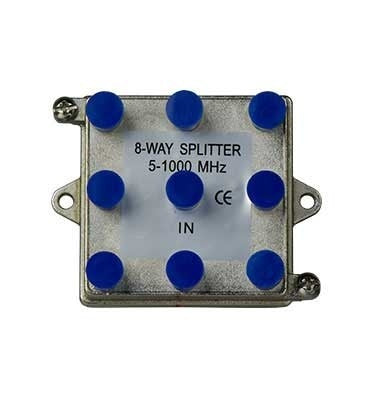

1 GHz 8-Way Vertical Coax Splitter
8-way vertical coax splitter for 5 to 1000 MHz bandwidth, designed for use in EN0800 enclosures
The On-Q VM0108 is an 8-way vertically oriented coax splitter designed for basic structured wiring applications. This component is intended to be specified into an EN0800 enclosure and is suitable for use in small homes or multi-dwelling units (MDU). Operating across a 5 to 1000 MHz bandwidth, this splitter supports 1 GHz transmission speeds. When installed, typical maximum insertion loss ranges from 9.5 dB to 12.5 dB. The unit has a length of 1.15 in (2.9 cm) and is designed to mount within a single-bay inside an MDU structured wiring enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 1.15 in (2.9 cm) |
| Number of Ports | 8 |
Resources
Questions about this part
What enclosure is the VM0108 designed to fit?
This splitter is designed to be installed inside an EN0800 enclosure.
Where is this splitter typically used?
The VM0108 is intended for structured wiring in multi-dwelling units (MDU) and small homes.
What is the bandwidth of the VM0108?
This 8-way splitter supports a bandwidth of 5 to 1000 MHz.
What is the typical insertion loss for this splitter?
Typical maximum insertion loss is between 9.5 dB and 12.5 dB.
What is the length of the VM0108?
The length of this component is 1.15 in (2.9 cm).
