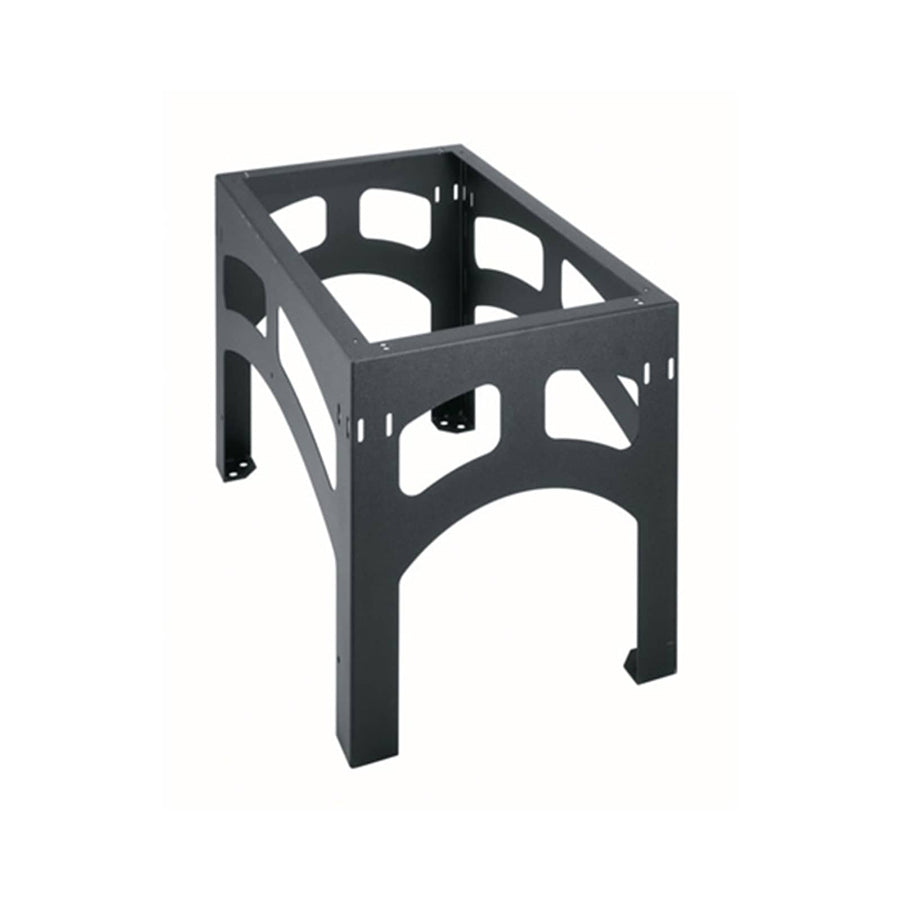

1 Bay Seismic Riser Base for 48 Inch Deep MRK, VRK Racks
Seismic rated 1-bay riser base for 48 in depth MRK or VRK series racks with 1000 lbs capacity
The SRB-1-MRK-4824 is a seismic rated 1-bay riser base designed specifically for use with 48 in (121.9 cm) deep MRK or VRK series racks. Constructed from heavy-gauge welded steel with a textured black powder coat finish, this component serves as a critical foundation for seismic-prone installations. This riser base allows installers to perform field rough-in of infrastructure prior to the arrival of the actual racks and enclosures. Once installed, it functions as a lower cable chase, providing a dedicated pathway for passing cabling between adjacent racks. The unit is engineered to handle a seismic load capacity and weight capacity of 1000 lbs (453.6 kg). It is TAA compliant and meets ASCE 7-10 standards, and carries OSHPD Number 96-01027.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 22 in (55.9 cm) |
| Base Series | MRK or VRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 1 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747181177 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will this SRB-1-MRK-4824 base fit my MRK or VRK rack?
This 1-bay riser base is designed specifically for the MRK or VRK series racks with a 48 in (121.9 cm) depth.
What is the weight capacity of the SRB-1-MRK-4824?
The SRB-1-MRK-4824 has a rated weight capacity and seismic load capacity of 1000 lbs (453.6 kg).
Is this riser base OSHPD compliant?
Yes, this component is listed under OSHPD Number 96-01027.
What is the primary benefit of using this riser base during installation?
The base allows for field rough-in to be completed before the racks or enclosures arrive on site.
How can I use this base for cable management?
The unit acts as a lower cable chase to facilitate passing cabling between racks.
